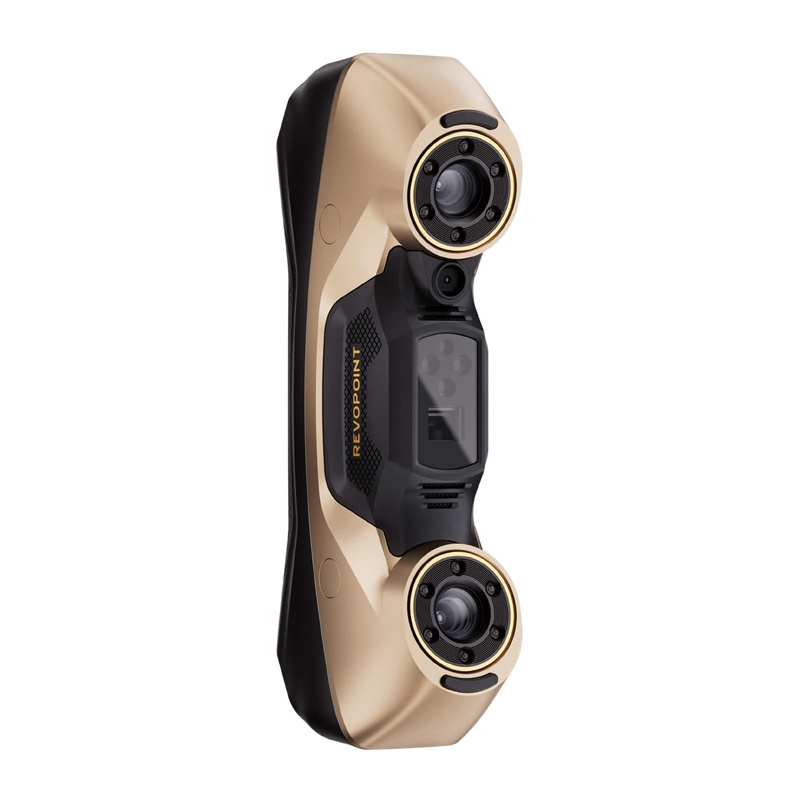

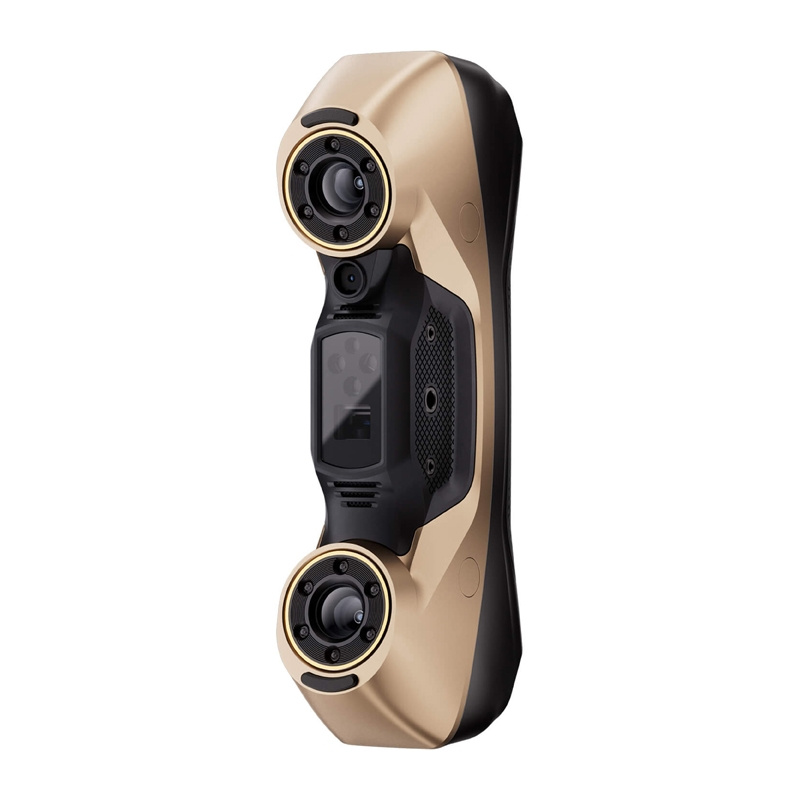

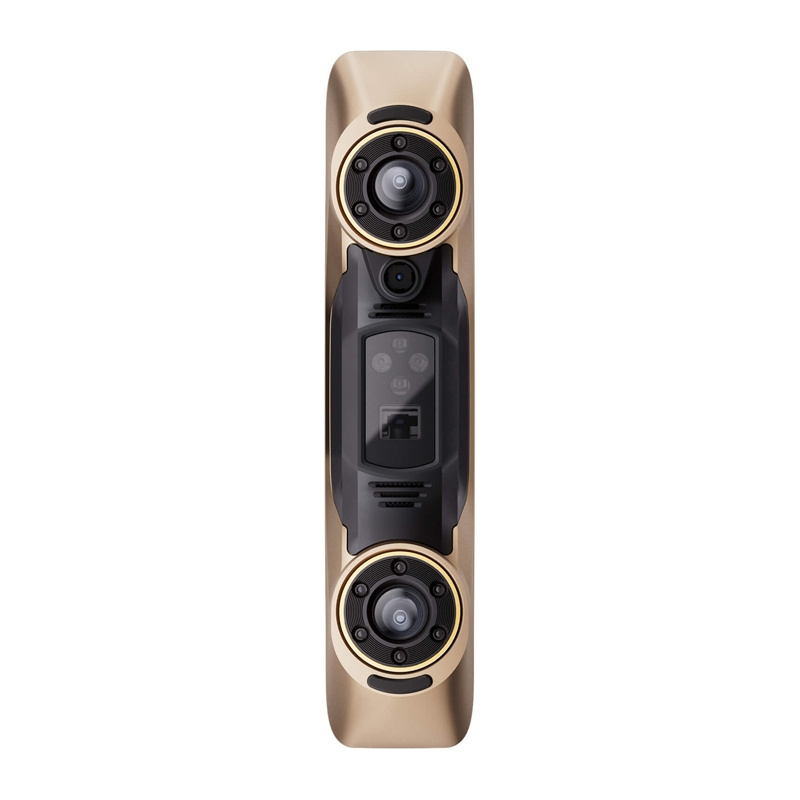

3D Scanner Revopoint MetroY Ultra Standard Edition
The Revopoint MetroY Ultra Standard Edition is an advanced 3D scanner combining blue-light technology, a multi-line laser, and structured light for high-precision inspection and reverse engineering.
Industrial-Grade Precision and Speed
The scanner achieves single-frame accuracy of up to 0.015 mm and volumetric accuracy of 0.015 mm + 0.04 mm × L (m). It captures data at up to 90 fps with an NVIDIA GPU and reaches acquisition speeds of up to 3 000 000 points per second in multi-line mode and up to 7 000 000 points per second using structured light.
Five Dedicated Scanning Modes
Designed for versatile measurement tasks, the MetroY Ultra provides five blue-light modes:
- High Speed mode with 34 cross lines for rapid surface capture
- Details mode with 15 parallel lines for fine resolution
- Single-line mode designed for deep holes and recesses
- Full-field structured light with 62 lines for larger components
- Automatic turntable mode for hands-free scanning of smaller parts
Professional Software and Wireless Workflow
Featuring Wi-Fi 6 support and wireless screen mirroring to external monitors or mobile devices, the MetroY Ultra enables efficient cable-free operation. Revo Metro and Revo Measure software include measurement algorithms certified by the German metrology institute PTB, facilitating seamless dimensional inspection and reporting.
| Manufacturer | Revopoint |
|---|---|
| Model | MetroY Ultra |
| Single-frame precision | up to 0.01 mm |
| Single-frame accuracy | up to 0.015 mm |
| Volumetric accuracy | 0.015 mm + 0.04 mm × L (m), where L is the length of the object |
| Distance between points | up to 0.05 mm |
| Working distance | 200–400 mm |
| Single scan area at minimum distance | 152 × 138 mm at 200 mm |
| Single scan area at maximum distance | 332 × 276 mm at 400 mm |
| Minimum scan volume | 10 × 10 × 10 mm |
| Maximum scan volume | 2 × 2 × 2 m |
| Scan speed | NVIDIA GPU: up to 90 fps; CPU: up to 60 fps |
| Point capture rate | Multi-line scanning: 3 000 000 points/s; Structured light scanning: 7 000 000 points/s |
| RGB camera resolution | 2 MP |
| Processor | 4-core ARM, 2.0 GHz |
| Outdoor scanning | Yes (multi-line laser mode allows operation in lighting conditions up to 100 000 lux) |
| 3D light source | 34 blue cross lines; 15 blue parallel lines; 1 blue line for deep holes; 62-line full-field blue structured light |
| Lighting | 12 blue LEDs |
| Scanner weight | 450 g |
| Dimensions (L × W × H) | 211 × 94 × 47 mm |
| EAN | 6975577881977 |
|---|
What is included in the package?
The package includes the scanner, tripod, USB Type-C to Type-C cable, power adapter, model sample, 500 pcs of 6 mm markers, dual-axis rotating stage, carrying case, calibration plate, and Mobile Kit (4th generation).
Can the scanner operate in bright ambient light?
Yes, its multi-line laser mode supports scanning in challenging conditions with ambient light intensities up to 100 000 lux.
