3D Scanner REVOPOINT Mini 2 Standard Edition

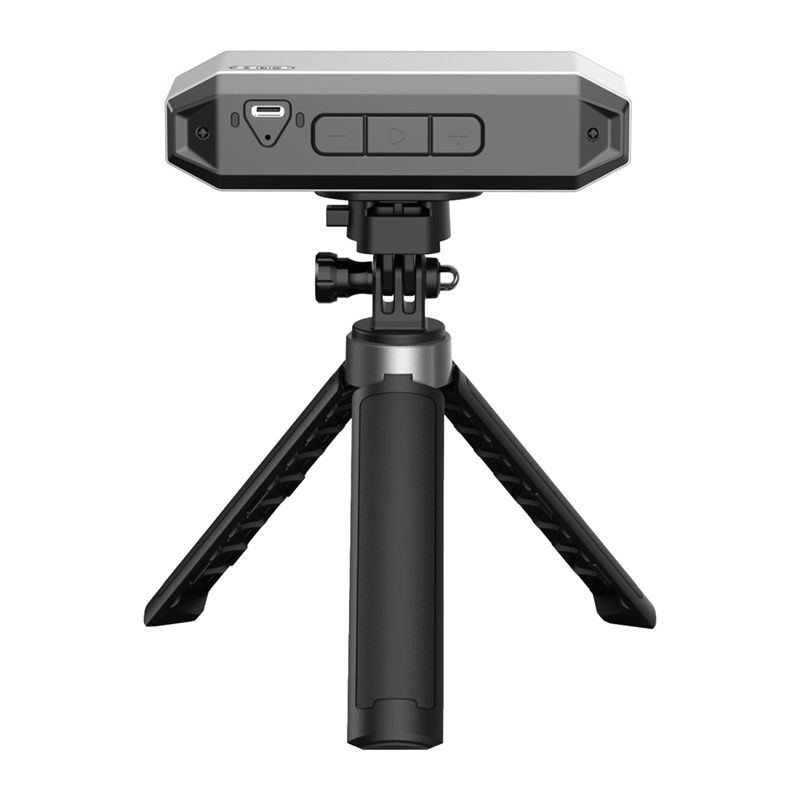

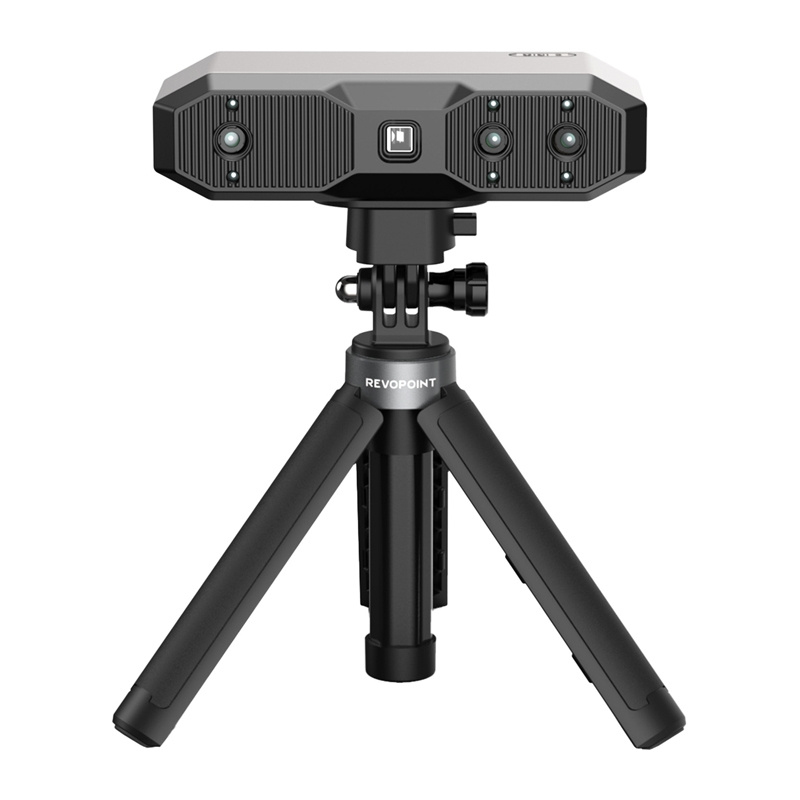

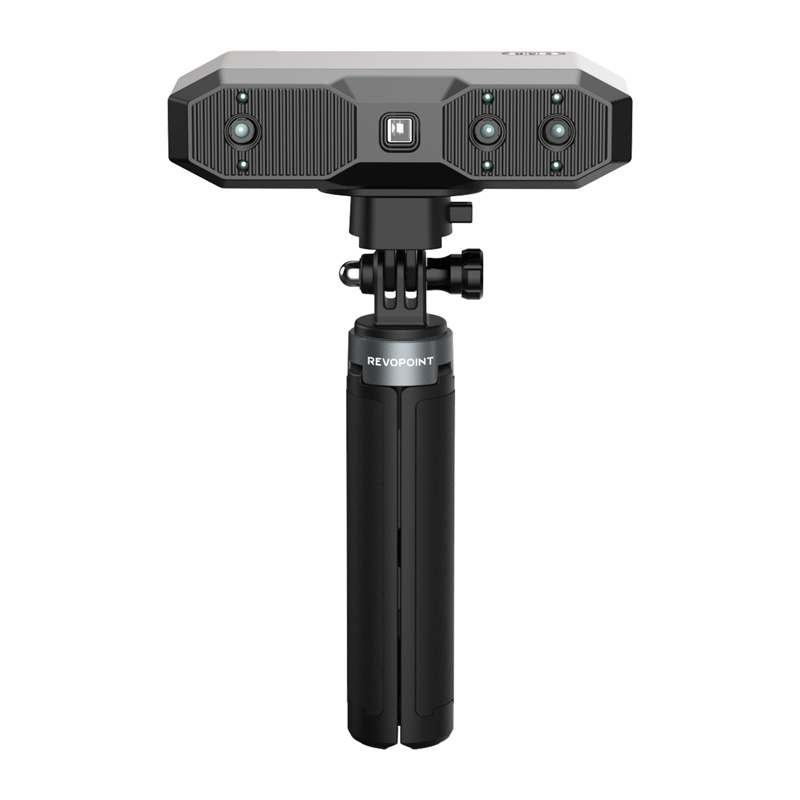

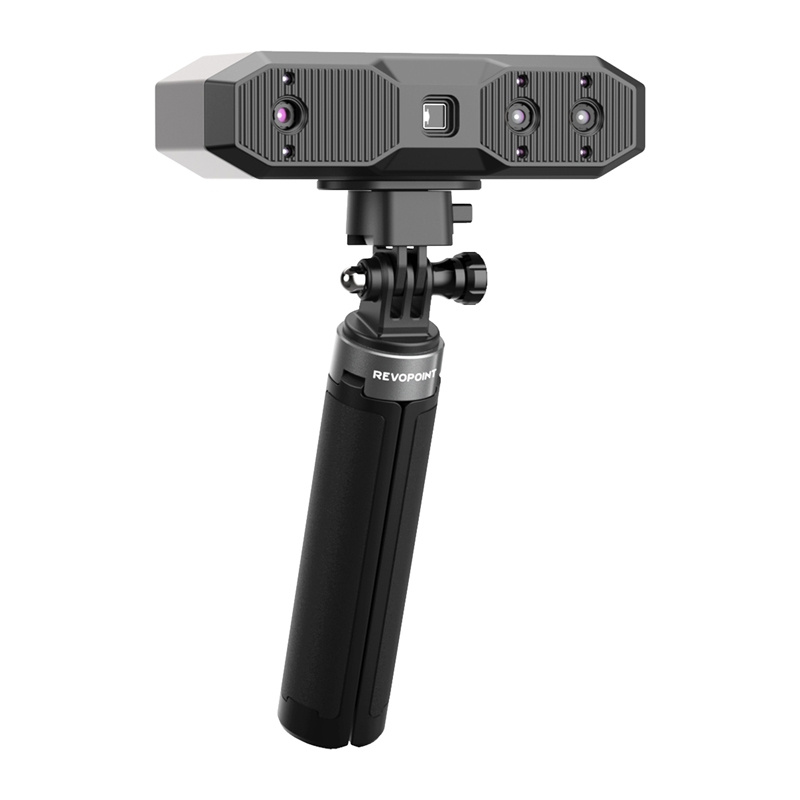

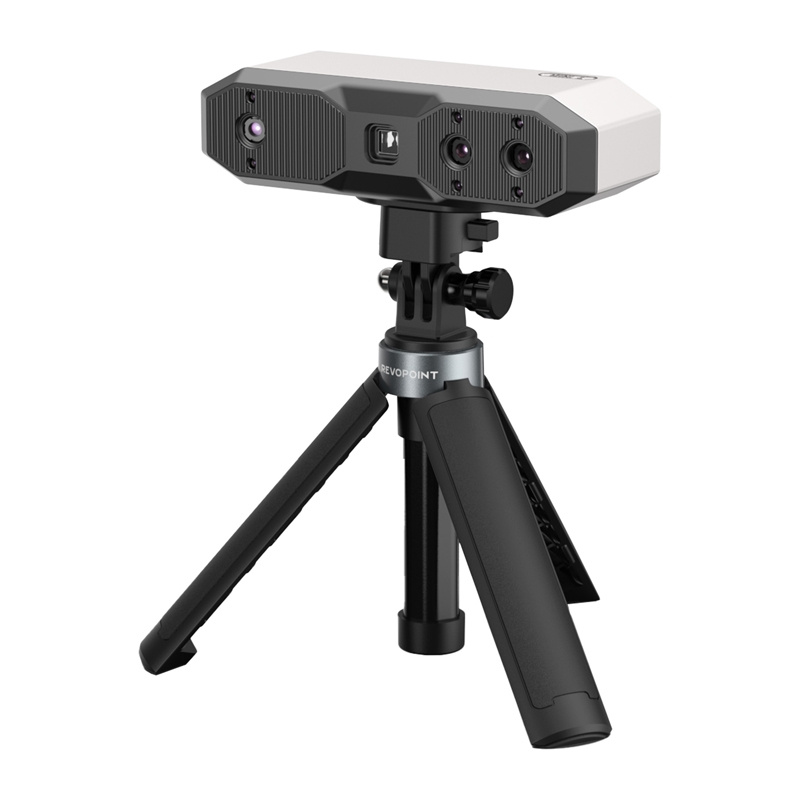

The REVOPOINT Mini 2 Standard Edition is a compact, high-precision 3D scanner engineered to digitize small objects with precision up to 0.02 mm and full color capture.

Key Features

Dual-camera blue structured light technology for capturing fine details
Scanning speed of up to 16 fps stabilized by a 9-axis IMU
Working range from 120 mm to 250 mm with a 2 MP RGB sensor
Direct export to 3D printing and CAD formats such as STL, OBJ, and PLY
Compact 175 g body with versatile USB Type-C and Wi-Fi 6 connectivity

Manufacturer	REVOPOINT
Model	MINI 2
Version	Standard Edition
Scanning technology	Dual camera with blue structured light
Light source	Class 1 blue light
Single-frame precision	up to 0.02 mm
Single-frame accuracy	up to 0.05 mm
Depth camera resolution	2 MP
RGB camera resolution	2 MP
Color scanning	Yes
Scanning speed	up to 16 fps
Working range	120–250 mm
Scanning area at 120 mm	52 × 64 mm
Scanning area at 250 mm	168 × 132 mm
Minimum object volume	10 × 10 × 10 mm
Positioning sensors	9-axis IMU
Wireless connectivity	Wi-Fi 6
Connector	USB Type-C
User-recalibration capability	Yes
Supported file formats	PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
3D printing compatibility	Yes
Supported operating systems	Windows 10/11 (64-bit), macOS 11.0 or later, Android, iOS
Dimensions	132 × 53 × 36 mm
Weight	175 g
Outdoor scanning	No

Which operating systems are compatible with the REVOPOINT Mini 2?

It is compatible with Windows 10 and 11 (64-bit), macOS 11.0 or later, Android, and iOS.

What items are included in the package?

The package includes the REVOPOINT MINI 2 scanner, tripod, phone mount, cables, Type-C adapter, mini turntable with cover and power cable, carrying case, test model, calibration board, 500 markers, and glue tack.
