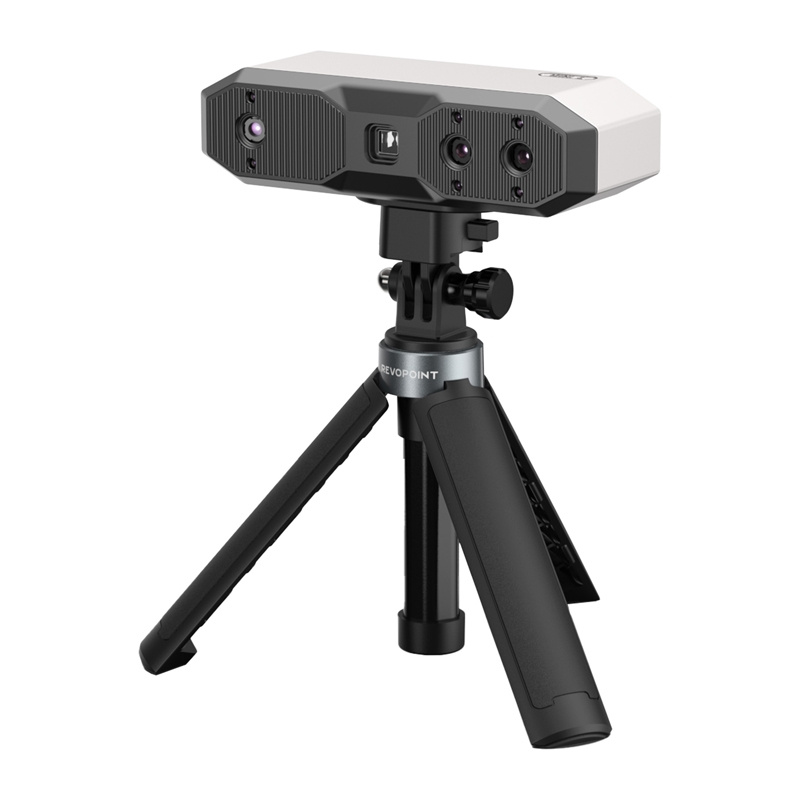

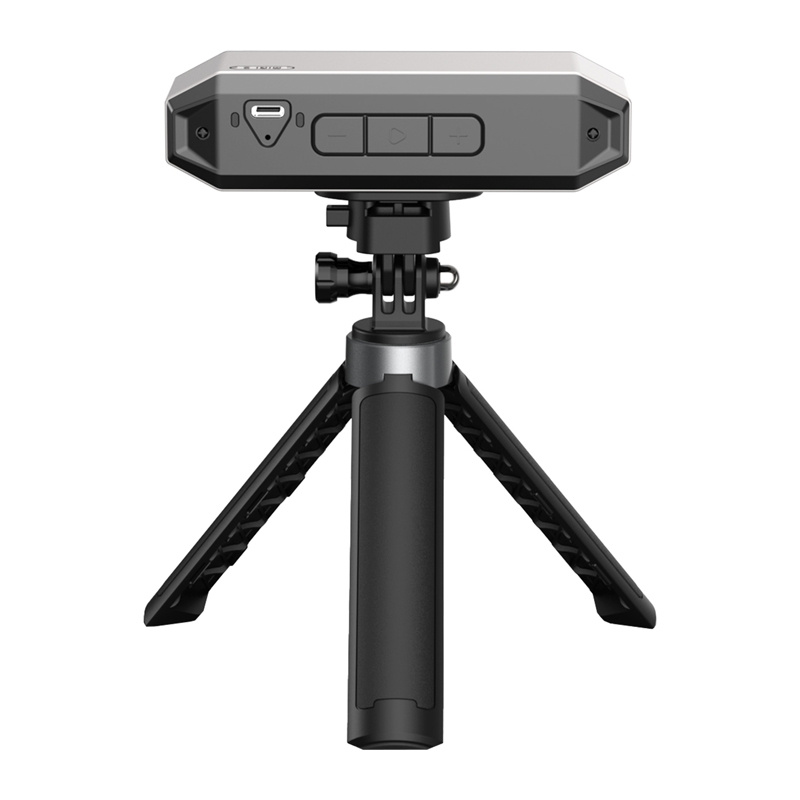

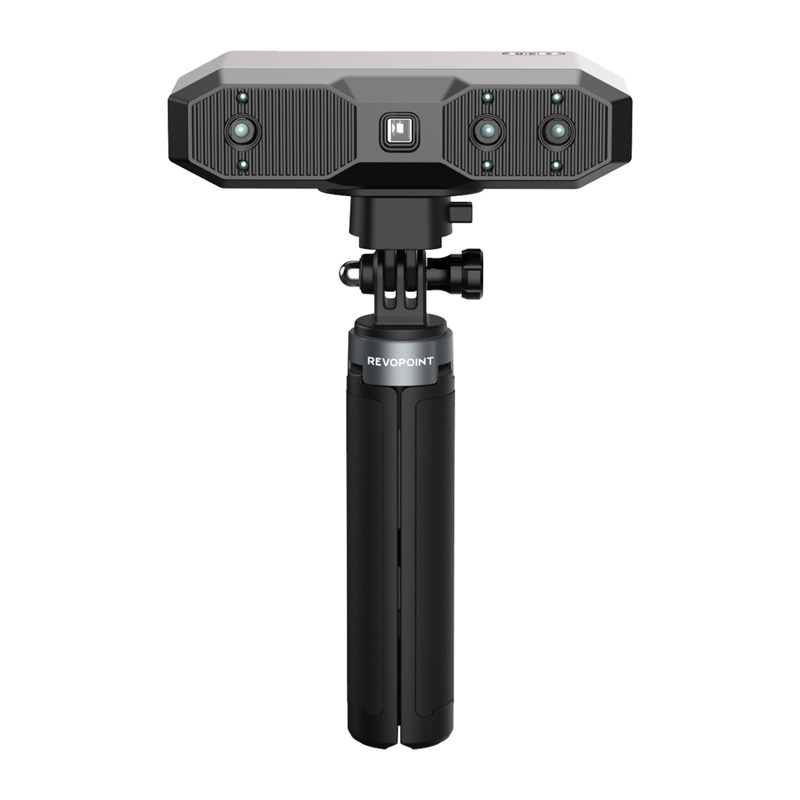

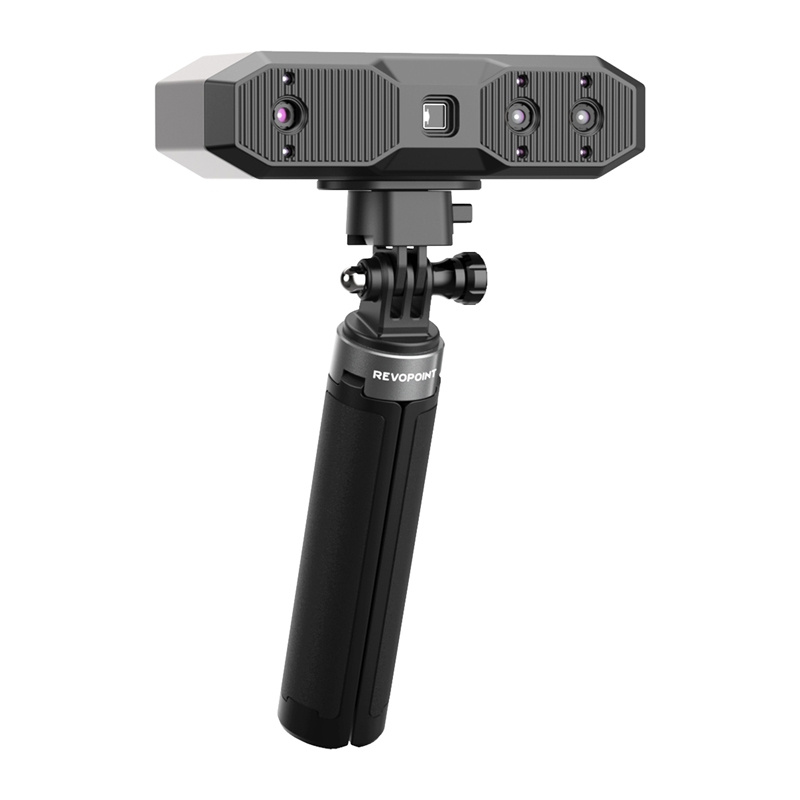

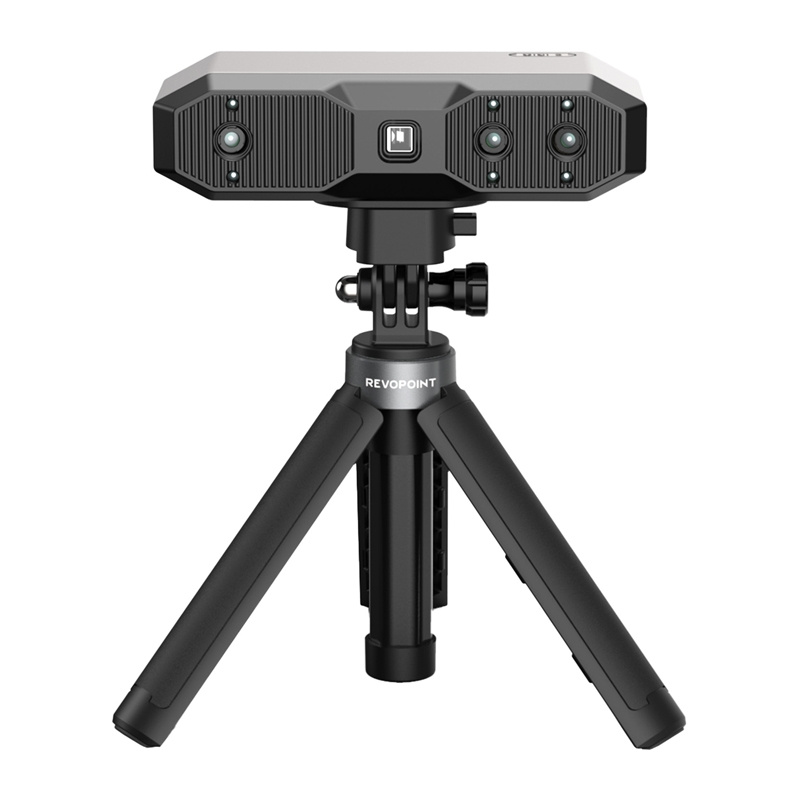

3D Scanner REVOPOINT Mini 2 Advanced Edition
Price: 954.40 €
| Products ID: | 177057 |
|---|---|
| Manufactured by: | Revopoint |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6975577880307 |
Delivery options to:
Choose countryThe REVOPOINT Mini 2 Advanced Edition is a compact high-precision 3D scanner engineered for digitizing small objects with single-frame precision up to 0.02 mm. Powered by blue structured light dual-camera technology and a 9-axis IMU, it delivers stable and detailed 3D captures.
Key Features
- Dual-camera Class 1 blue structured light technology
- Fast scanning speed of up to 16 fps
- 2 MP RGB camera for realistic color capture
- Working distance from 120 to 250 mm
- Direct export to formats compatible with CAD and 3D printing
- Includes a two-axis automatic turntable in the package
| Manufacturer | REVOPOINT |
|---|---|
| Model | MINI 2 |
| Version | Advanced Edition |
| Scanning technology | Dual camera with blue structured light |
| Light source | Class 1 blue light |
| Single-frame precision | up to 0.02 mm |
| Single-frame accuracy | up to 0.05 mm |
| Depth camera resolution | 2 MP |
| RGB camera resolution | 2 MP |
| Color scanning | Yes |
| Scanning speed | up to 16 fps |
| Working range | 120–250 mm |
| Scanning area at 120 mm | 52 × 64 mm |
| Scanning area at 250 mm | 168 × 132 mm |
| Minimum object volume | 10 × 10 × 10 mm |
| Positioning sensors | 9-axis IMU |
| Wireless connectivity | Wi-Fi 6 |
| Connector | USB Type-C |
| User-recalibration capability | Yes |
| Supported file formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| 3D printing compatibility | Yes |
| Supported operating systems | Windows 10/11 (64-bit), macOS 11.0 or later, Android, iOS |
| Dimensions | 132 × 53 × 36 mm |
| Weight | 175 g |
| Outdoor scanning | No |
What 3D file formats does the scanner support?
The REVOPOINT Mini 2 outputs models in PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX formats.
What is the minimum object size that can be scanned?
The minimum recommended object volume for scanning is 10 × 10 × 10 mm.
What additional hardware is included in the Advanced Edition?
In addition to the standard cables, tripod, phone mount, calibration board, and mini turntable, the Advanced Edition includes a two-axis automatic turntable.
