3D Scanner Revopoint Inspire 2 Premium Edition
Price: 644.30 €
| Products ID: | 177027 |
|---|---|
| Manufactured by: | Revopoint |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6975577881335 |
Delivery options to:

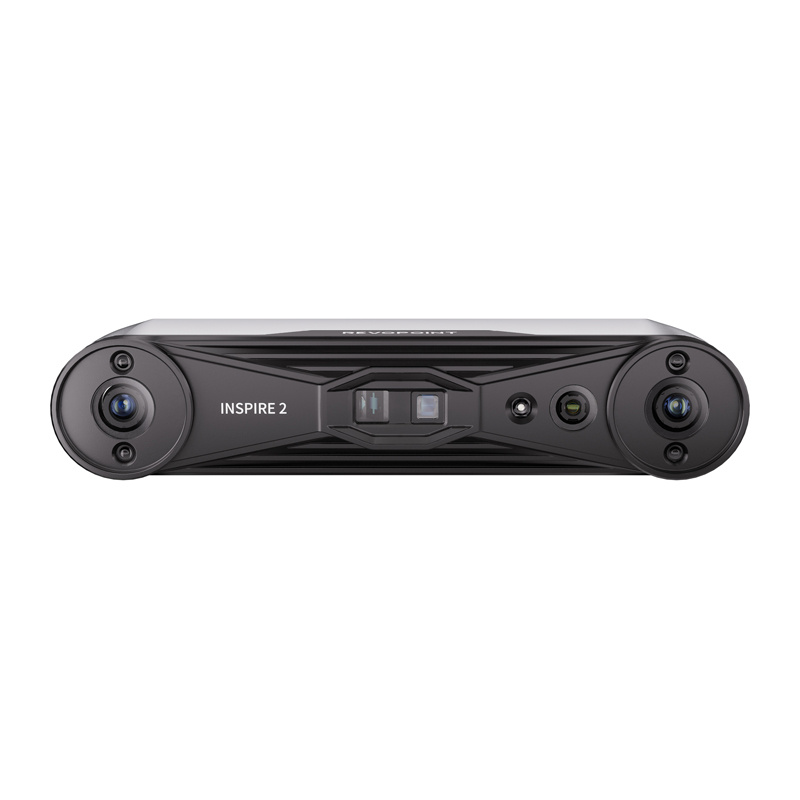

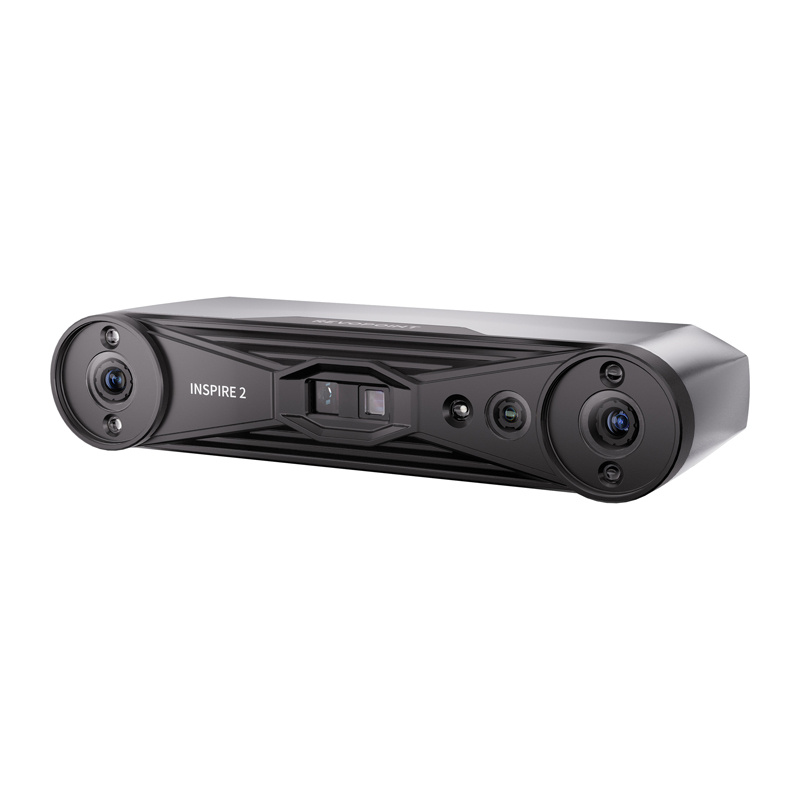

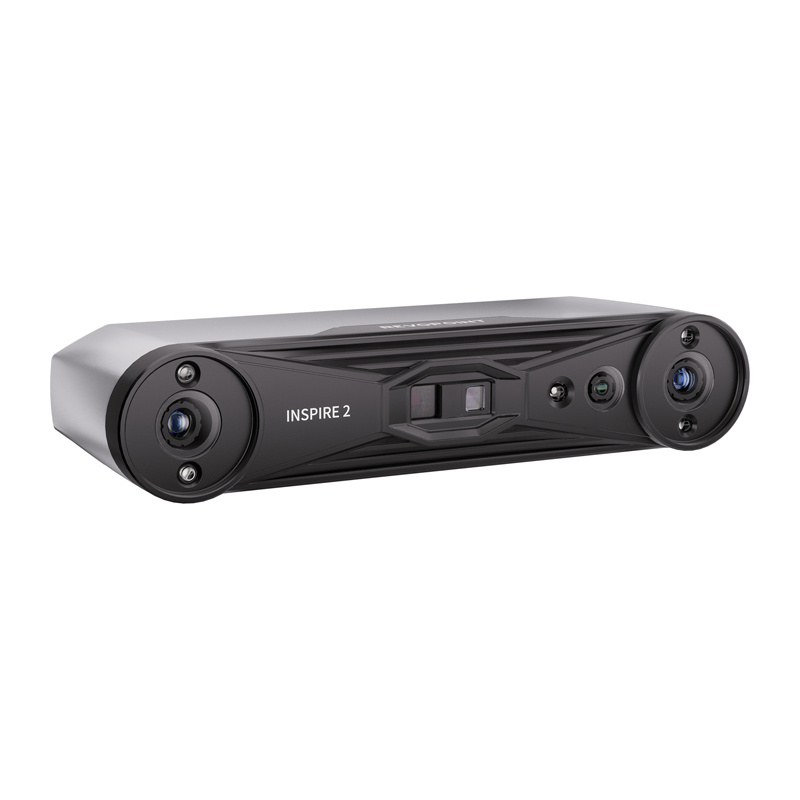

Choose countryThe Revopoint Inspire 2 Premium Edition is a compact, handheld 3D scanner built for both handheld and stationary workflows. Combining dual-camera infrared structured light and multi-line laser technology, it enables detailed digitizing across varied surface types and object sizes.
Key Features
- Dual scanning modes utilizing infrared structured light and 11 parallel laser lines
- Single-frame accuracy up to 0.05 mm and scanning speed up to 90 fps
- Scanning volume support from 20 × 20 × 20 mm up to 2 × 2 × 2 m
- Premium Edition package includes a phone mount and a 4000 mAh power bank for field use
- Cross-platform support for Windows, macOS, Android, and iOS devices
| Manufacturer | Revopoint |
|---|---|
| Model | Inspire 2 |
| Technology | dual camera + infrared structured light + multi-line laser |
| Single-frame accuracy | up to 0.05 mm |
| Precision | up to 0.03 mm |
| Volumetric accuracy | 0.05 mm + 0.1 mm × L (m) |
| Scanning range - minimum | 20 × 20 × 20 mm |
| Scanning range - maximum | 2 × 2 × 2 m |
| Structured light scanning speed | up to 18 fps |
| Laser scanning speed | up to 90 fps |
| Indoor working range | 200 – 400 mm |
| Outdoor working range | 150 – 250 mm |
| Field of view (FOV) | 43° × 35° |
| RGB camera | 1280 × 800 |
| Color scanning | Yes |
| Connectivity | Wi-Fi 6, Bluetooth 4.1, USB Type-C |
| File formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| Power supply | DC 5V, 1A (USB-C) |
| Weight | 190 g |
| Dimensions | 53 × 27 × 132 mm |
What is included in the Inspire 2 Premium Edition?

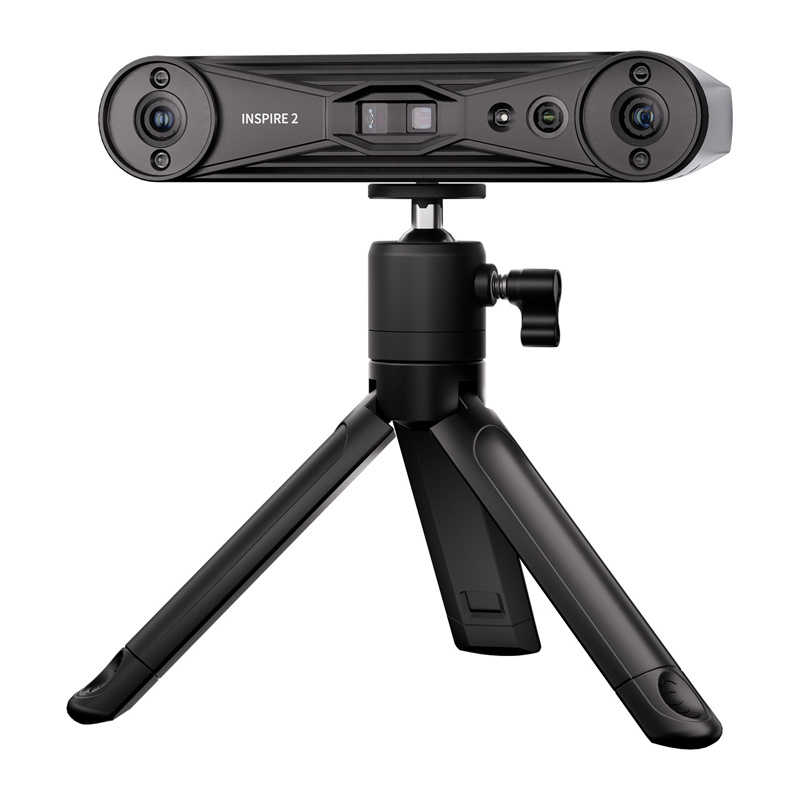

The package includes the Inspire 2 scanner, tripod, 2 m USB-C cable, mini rotating platform, 200 positioning markers, outdoor filters, calibration board, phone mount, 4000 mAh power bank, quick-release bracket, and a 2-in-1 mobile cable.
Which export file formats are supported?
The scanner exports 3D files in PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX formats.
