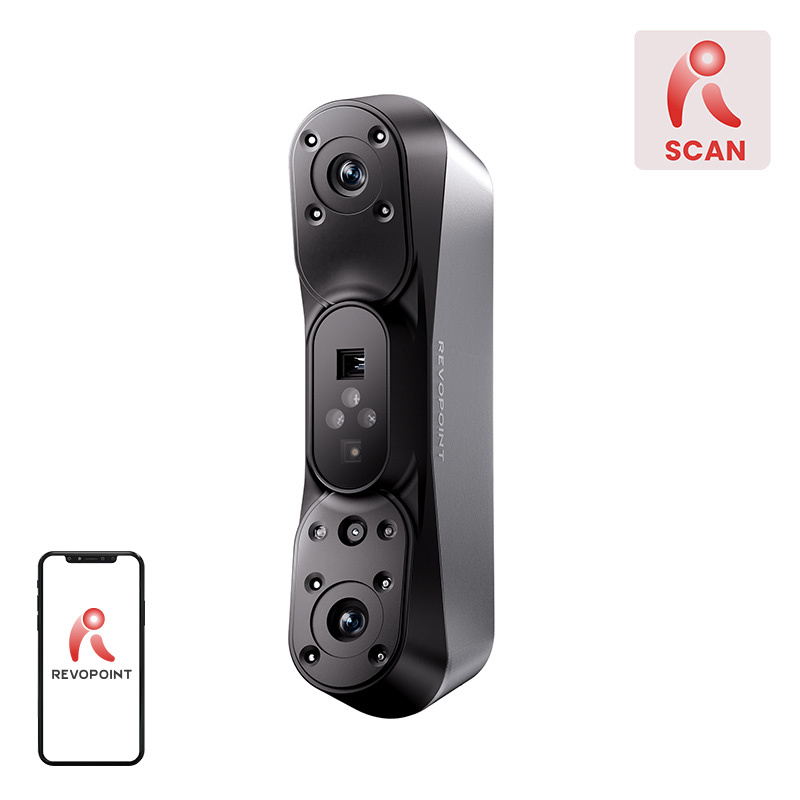

3D Scanner Revopoint POP 4

Price: 794.40 €

Products ID:	177745
Manufactured by:	Revopoint
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6975577882080

Delivery options to:

Choose country

The Revopoint POP 4 is a versatile 3D scanner designed for handheld and desktop use, combining blue multi-line laser, infrared structured light, and VCSEL projection. It delivers single-measurement accuracy up to 0.03 mm in laser mode, RGB color capture, and real-time AI segmentation for objects ranging from 10 × 10 × 10 mm to 2 × 2 × 2 m.

Key Features

Three scanning technologies for technical parts, bodies, and large objects.
Single-measurement laser accuracy up to 0.03 mm and point cloud density up to 0.05 mm.
Gaussian Splatting support for photorealistic 3D models exported in SPLAT format.
Real-Time AI Segmentation for automatic background and hand removal.
Compatible with STL, OBJ, PLY, FBX, GLTF, 3MF, ASC, and SPLAT formats.
Wi-Fi 6, Bluetooth 4.1, and USB-C connectivity across Windows, macOS, Android, and iOS.

Manufacturer	Revopoint
Model	POP 4
Scanning technologies	Blue multi-line laser, Full-Field Structured Light (infrared), VCSEL Structured Light
Accuracy of a single laser measurement	up to 0.03 mm
Accuracy of a single Full-Field measurement	up to 0.08 mm
VCSEL single measurement accuracy	up to 0.10 mm (300–500 mm), up to 0.20 mm (500–800 mm)
Volumetric accuracy	0.03 mm + 0.05 mm × L(m)
Working distance for laser mode	200–400 mm
Working distance for Full-Field HD / Hybrid HD	250–500 mm
Working distance for VCSEL	300–800 mm
Minimum size of scanned object	10 × 10 × 10 mm
Maximum size of scanned object	2 × 2 × 2 m
Laser scanning speed	up to 105 fps
Full-Field scanning speed	15–20 fps
VCSEL scanning speed	20–30 fps
Maximum number of laser points	up to 2,000,000 points/s
Maximum number of Full-Field points	up to 5,000,000 points/s
RGB camera	1.3 MP
Color scanning	Yes
Outdoor working illumination - VCSEL	up to 100,000 lux
Outdoor working light - laser	up to 50,000 lux (up to 100,000 lux with Outdoor Blue Filter)
Connectivity	Wi-Fi 6, Bluetooth 4.1, USB-C 3.0
Supported systems	Windows 10/11, macOS 11 or later, Android 9.0 or later, iOS 14 or later
Export formats	PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, SPLAT
Weight	286 g
Dimensions	160 × 30 × 72 mm
Power supply	DC 5 V / 2 A

What items are included in the package?

The package includes the Revopoint POP 4 3D Scanner, a tripod, a 2 m USB Type-C to Type-C cable, a mini turntable, a calibration plate, and 200 reflective markers.

What object sizes can the POP 4 scan?

The Revopoint POP 4 supports object dimensions from 10 × 10 × 10 mm up to 2 × 2 × 2 m.

Which export file formats are supported?

The included Revo Scan 6 software supports exporting models in PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, and SPLAT formats.
