Revopoint Trackit SR CMM Optical 3D Scanner
Price: 4475.80 €
| Products ID: | 177790 |
|---|---|
| Manufactured by: | Revopoint |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6975577882141 |
Delivery options to:
Choose country

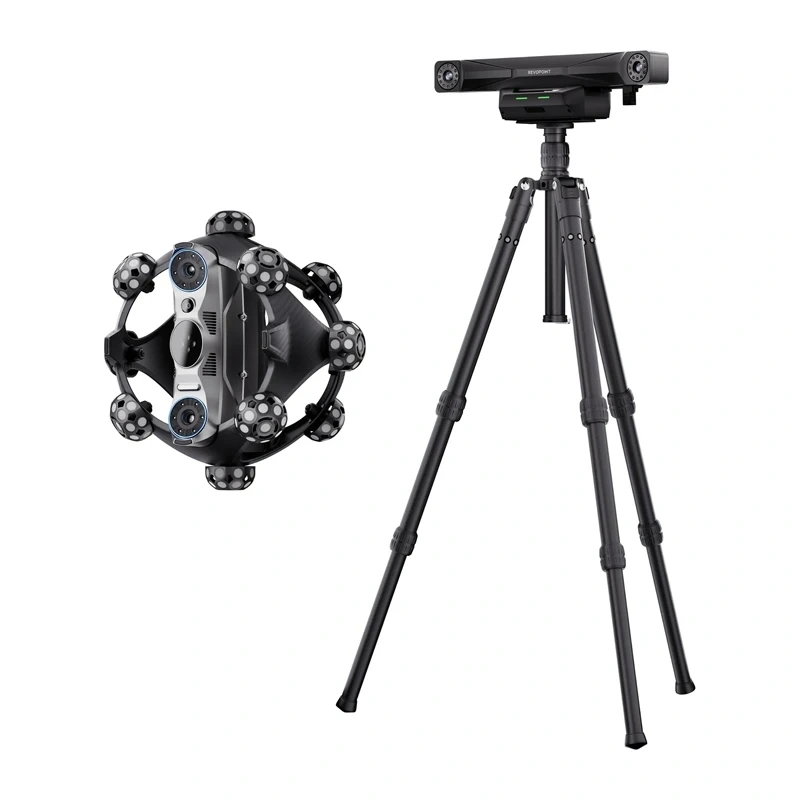

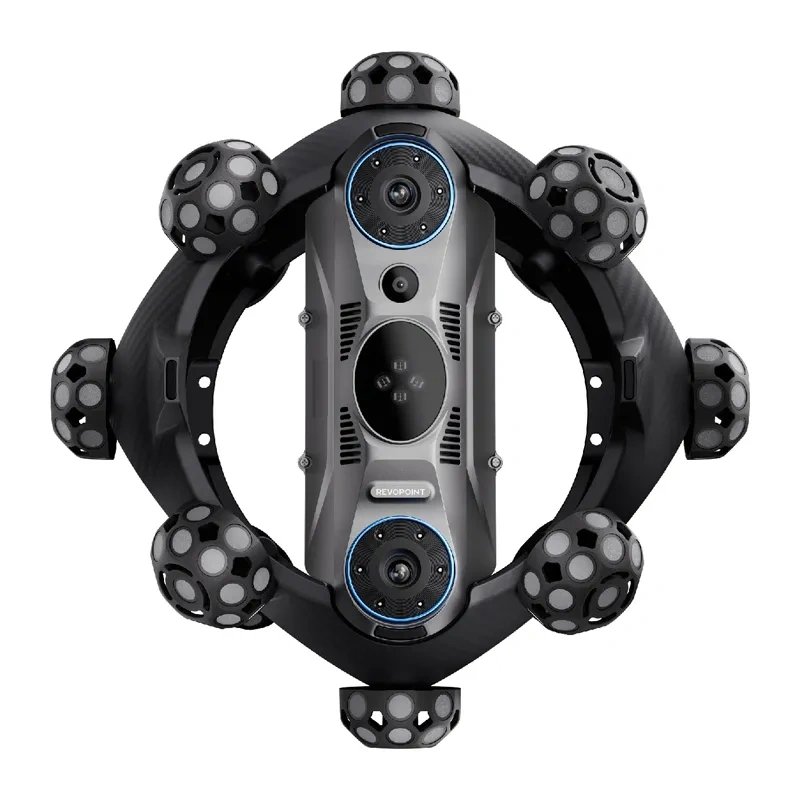

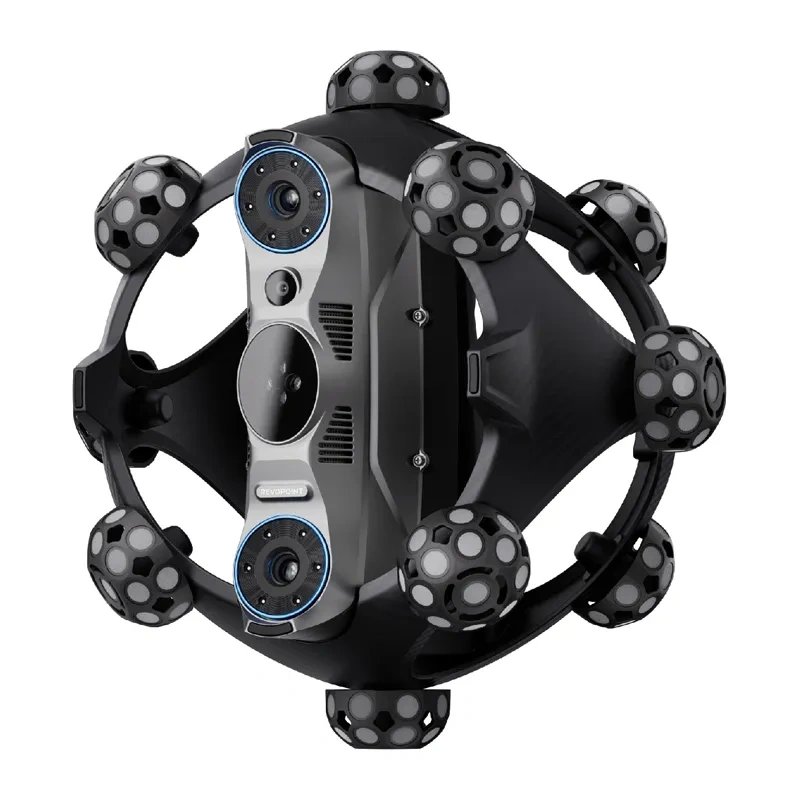

The Revopoint Trackit SR CMM is an optical 3D scanner equipped with an optical tracking system for accurate markerless measurements on various objects.
Key Features
- Three scanning modes: 30 intersecting laser lines, 17 parallel laser lines, and a single laser line for deep holes
- Markerless optical tracking with a volumetric accuracy of 0.02 + 0.04 mm × L (m)
- Wireless operation via Wi-Fi 6 and lightweight 1 kg scanner body
- Outdoor operation support in lighting conditions up to 100,000 lux
- Includes Revo Measure (1-year subscription for Windows 10/11) and Revo Track software
| Manufacturer | Revopoint |
|---|---|
| Model | Trackit SR Standard |
| Single-frame accuracy | 0.02 mm |
| Maximum distance between connection points | 0.05 mm |
| Maximum scanning speed | 2,000,000 points per second |
| Light source | Precision mode: 30 blue cross-shaped laser lines / Long-range mode: 17 blue parallel laser lines / Deep-hole mode: 1 blue single laser line |
| Operating distance | Crossing laser lines: 200–400 mm / Parallel laser lines: 250–500 mm / Single laser line: 200–400 mm |
| Single capture area at the closest distance | 123 × 130 mm at 200 mm |
| Single capture area at the farthest distance | 330 × 325 mm at 500 mm |
| Wi-Fi version | 6 |
| Weight | 1 kg |
| Dimensions | 250 × 250 × 177 mm |
| Operating temperature | 0 ℃ - 30 ℃ |
| Supported file formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| Construction Material | Frame: carbon fiber / Housing: polycarbonate |
| Recommended size of scanned objects | 0.01–4 m |
| Volume measurement accuracy (tracking system) | 0.02 mm + 0.04 mm × L (m) |

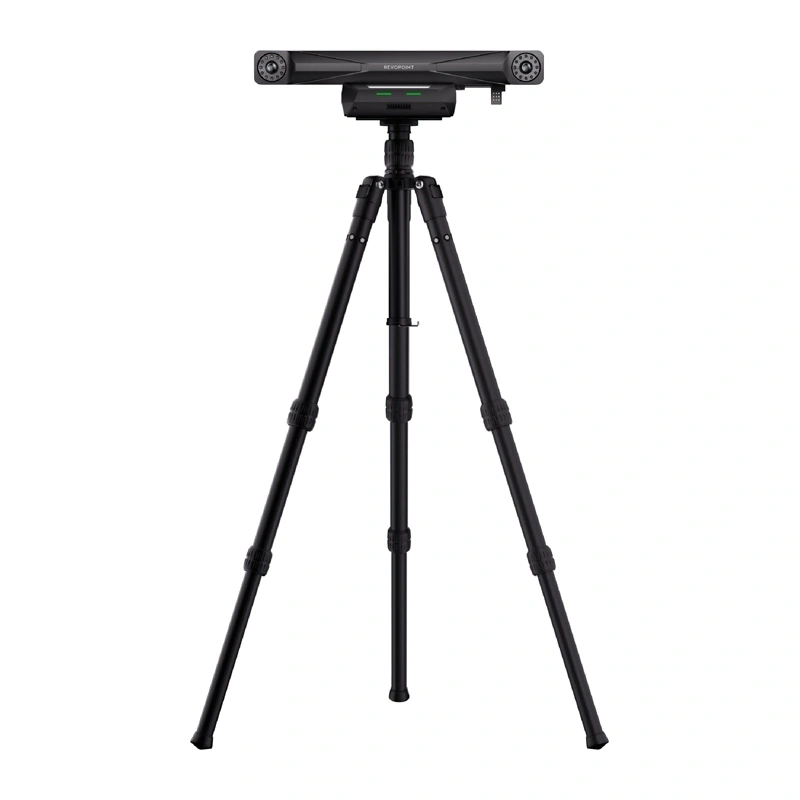

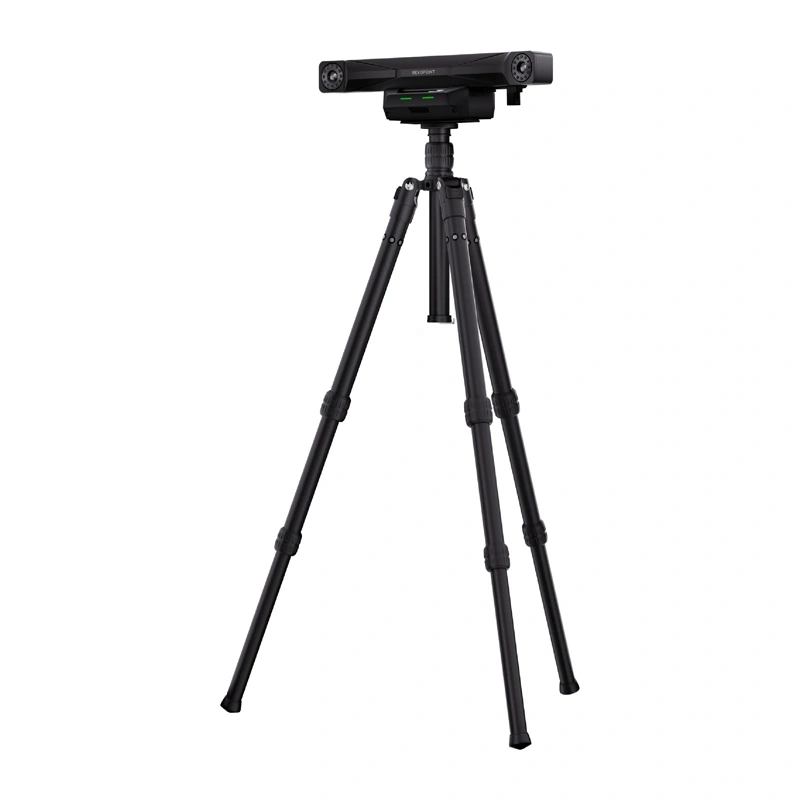

| Tracker working distance | 800 mm – 2,500 mm |
| Minimum tracking frame size | 587 × 569 mm at 800 mm |
| Maximum tracking frame size | 2075 × 1778 mm at 2500 mm |
| Tracking volume | 3 m³ |
| Tracker weight | 1.5 kg |
| Tracker dimensions | 441 × 111 × 103 mm |
| Tracking Band | NIR |
| User-Performed Recalibration | Manual Calibration |
| Supported Accessories | Calibration plate, calibration rod, mounting block, battery holder |
What laser modes are available on the Revopoint Trackit SR?
The scanner offers three operating modes: precision mode with 30 blue cross-shaped laser lines, long-range mode with 17 parallel laser lines, and deep-hole mode with 1 single laser line.
What software is included in the package?
The package includes a one-year subscription to Revo Measure software (compatible with Windows 10/11) and Revo Track software for measurements and tracking.
