Revopoint Trackit SR Standard Optical 3D Scanner
| Products ID: | 177602 |
|---|---|
| Manufactured by: | Revopoint |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6975577882073 |
Delivery options to:
Choose country

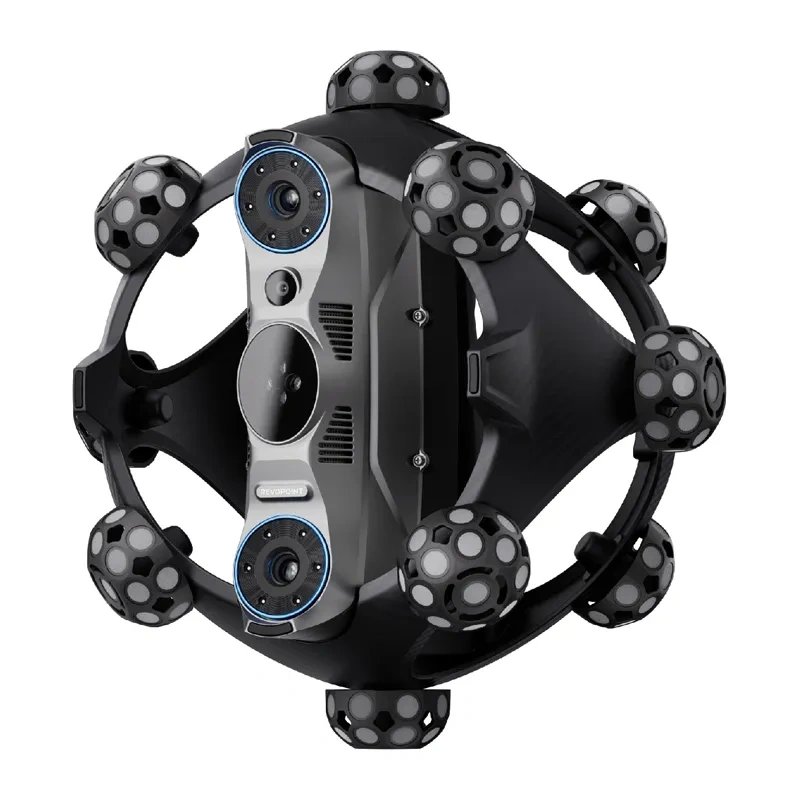

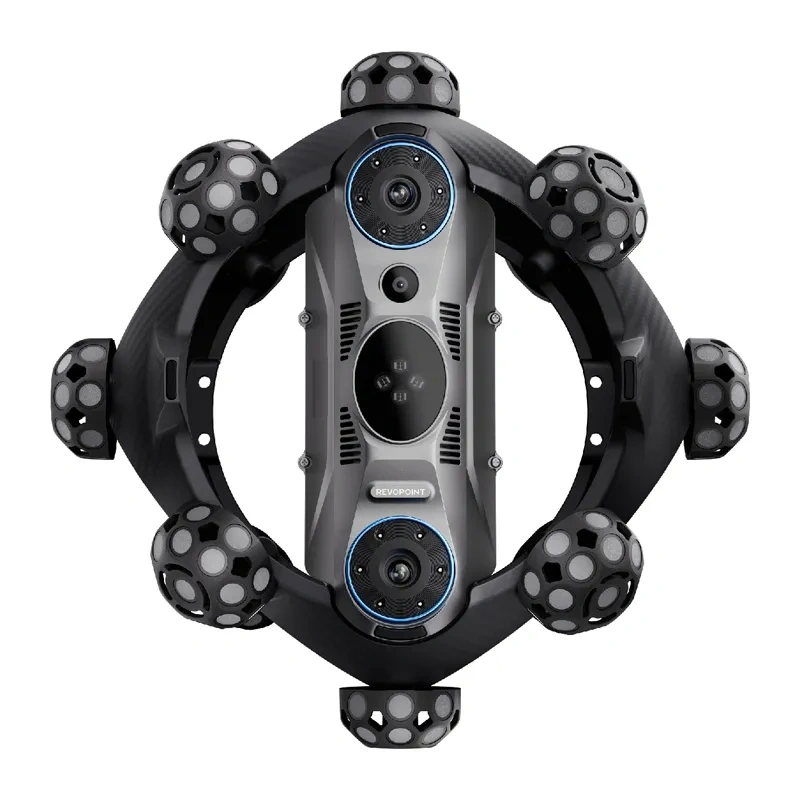

The Revopoint Trackit SR is an optical 3D scanner that combines high measurement accuracy with wireless operation and markerless optical tracking. Weighing just 1 kg and offering three specialized laser scanning modes, it handles both fine surface details and large objects.
Key Features
- Three scanning modes: 30 crosshair laser lines for precision, 17 parallel lines for long range, and 1 single laser line for deep holes
- Markerless optical tracking with volumetric accuracy of 0.02 + 0.04 mm × L (m)
- Scanning speed of up to 2,000,000 points per second and 0.02 mm single-frame accuracy
- Wireless operation via Wi-Fi 6 and outdoor capability under up to 100,000 lux illumination
- Includes Revo Measure and Revo Track software for measurement and data processing
| Manufacturer | Revopoint |
|---|---|
| Model | Trackit SR Standard |
| Single-frame accuracy | 0.02 mm |
| Maximum distance between connection points | 0.05 mm |
| Maximum scanning speed | 2,000,000 points per second |
| Light source | Precision mode: 30 blue crosshair laser lines / Long-range mode: 17 blue parallel laser lines / Deep-hole mode: 1 blue single laser line |
| Operating distance | Crossing laser lines: 200–400 mm / Parallel laser lines: 250–500 mm / Single laser line: 200–400 mm |
| Single detection area at the closest distance | 123 × 130 mm at 200 mm |
| Single detection area at the farthest distance | 330 × 325 mm at 500 mm |
| Wi-Fi version | 6 |
| Weight | 1 kg |
| Dimensions | 250 × 250 × 177 mm |
| Operating temperature | 0 ℃ - 30 ℃ |
| Supported formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| Material | Frame: carbon fiber / Housing: polycarbonate |
| Recommended size of scanned objects | 0.01 - 4 m |
| Volume measurement accuracy (tracking system) | 0.02 mm + 0.04 mm × L (m) |

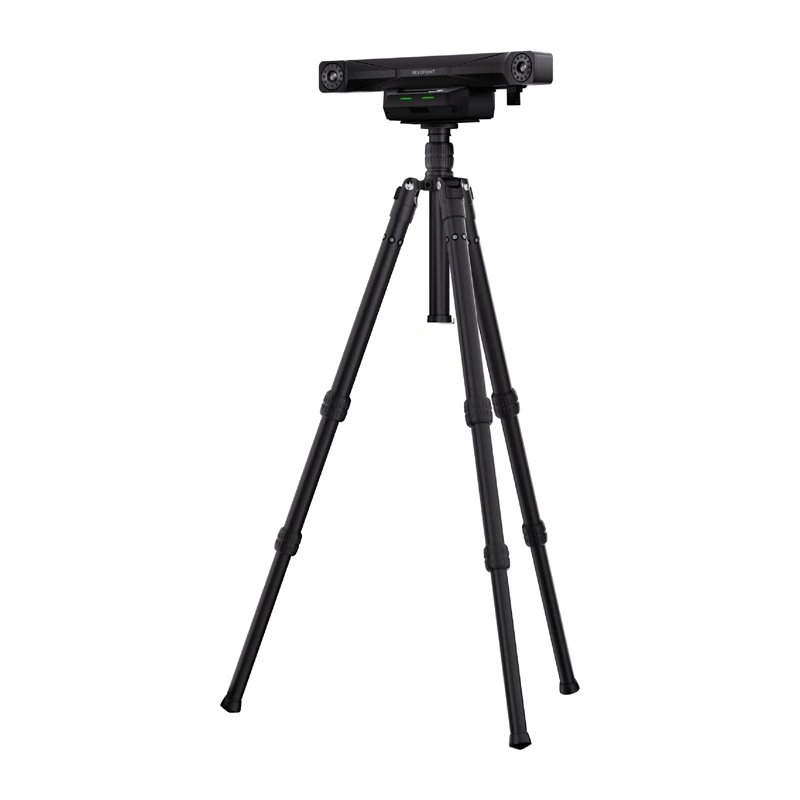

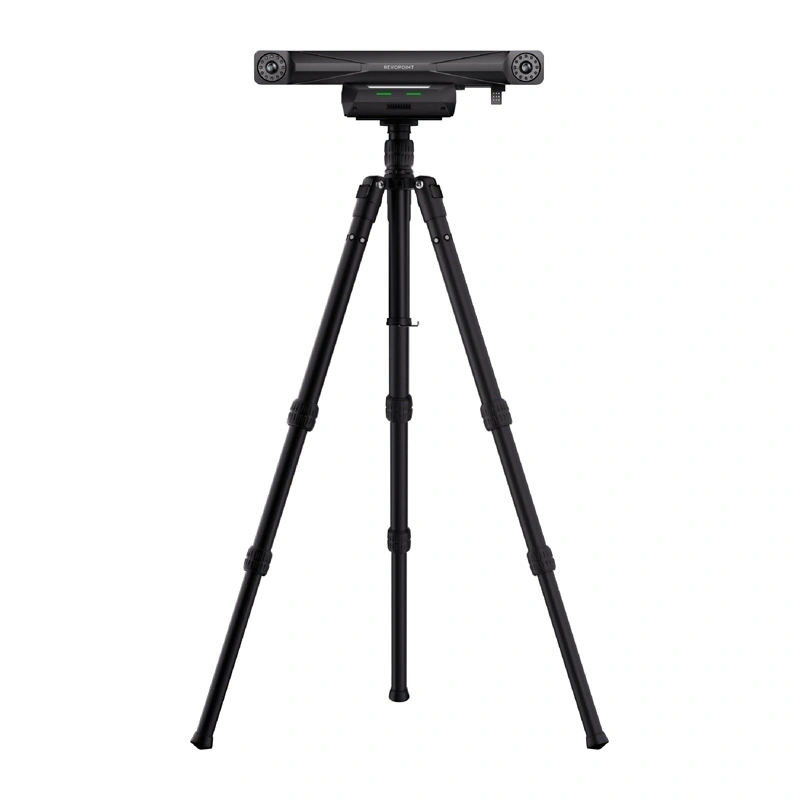

| Operating distance (tracker) | 800 mm – 2,500 mm |
| Minimum tracking frame size | 587 × 569 mm at 800 mm |
| Maximum tracking frame size | 2,075 × 1,778 mm at 2,500 mm |
| Tracking volume | 3 m³ |
| Weight (tracker) | 1.5 kg |
| Dimensions (tracker) | 441 × 111 × 103 mm |
| Tracking band | NIR |
| User-performed recalibration | Manual calibration |
| Supported accessories | Calibration plate, calibration post, mounting block, battery holder |
What scanning modes are available on the Revopoint Trackit SR?
It features three operating modes: precision mode with 30 blue crosshair laser lines, long-range mode with 17 blue parallel lines, and deep-hole mode with 1 blue single laser line.
Which export file formats are supported?
The scanner supports PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX file formats.
What is included in the package?

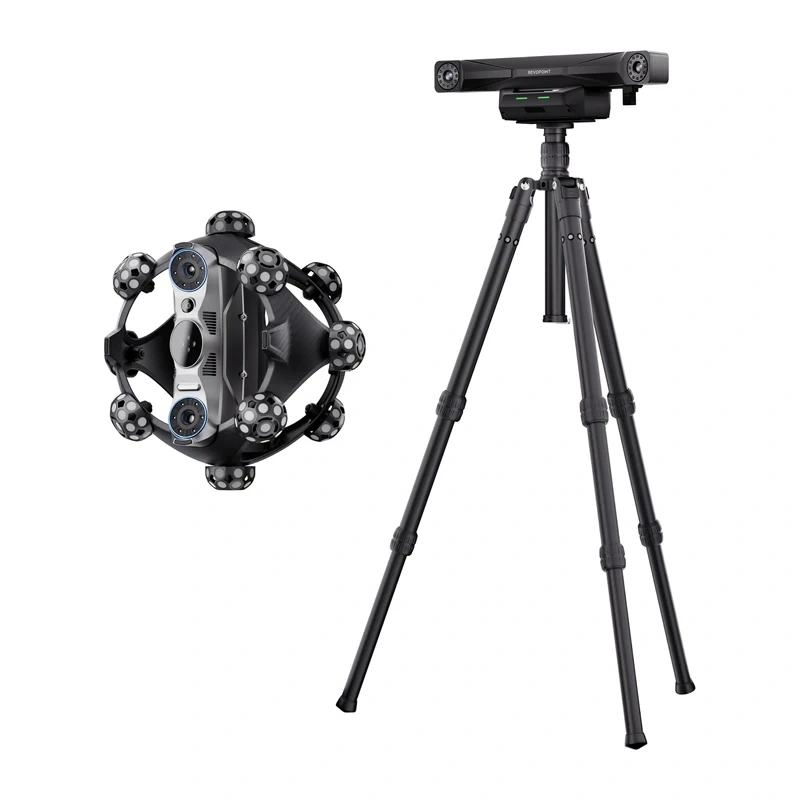

The set contains the scanner, optical tracker, 2-axis auto-calibrating gimbal, tripod, gimbal adapter, quick-release connector, calibration plate and rod, power adapter, cables, cable case, 20 magnetic markers, 200 adhesive markers, rolling case, 2 scanner batteries, and a battery charger.
