3D Scanner Revopoint Inspire 2 Standard Edition

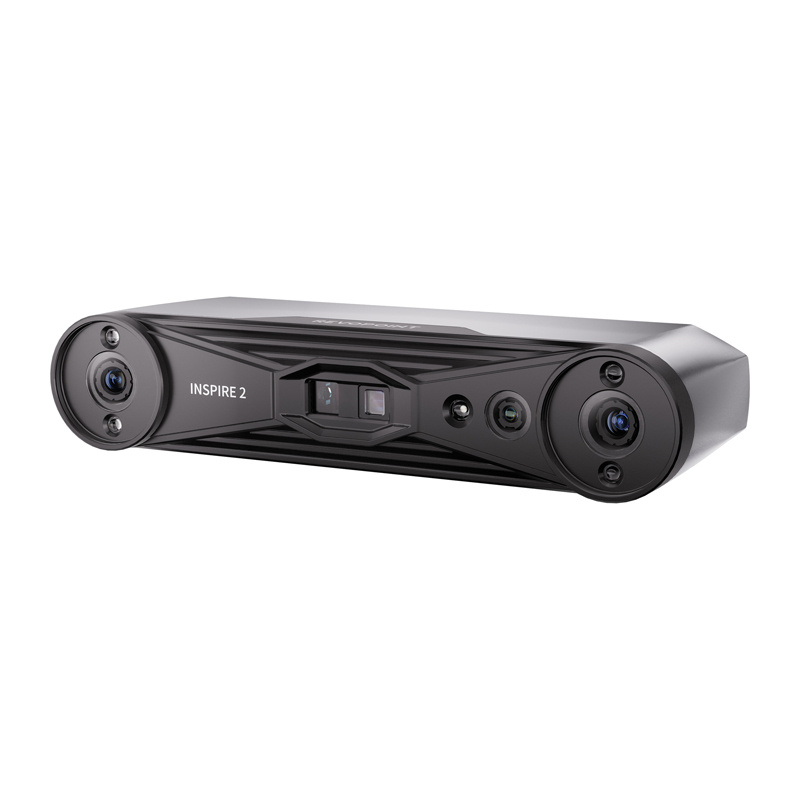

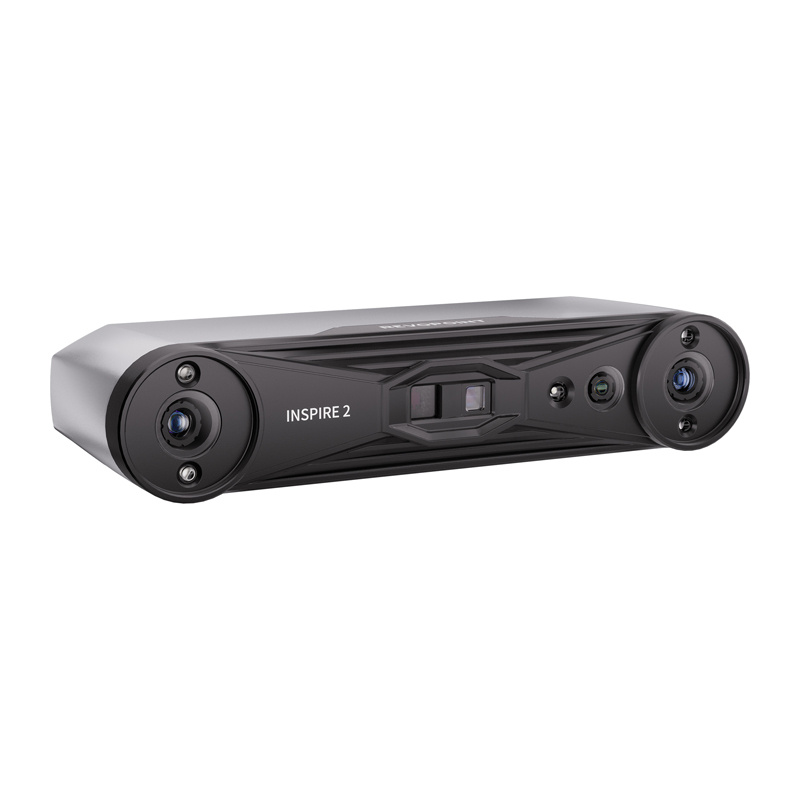

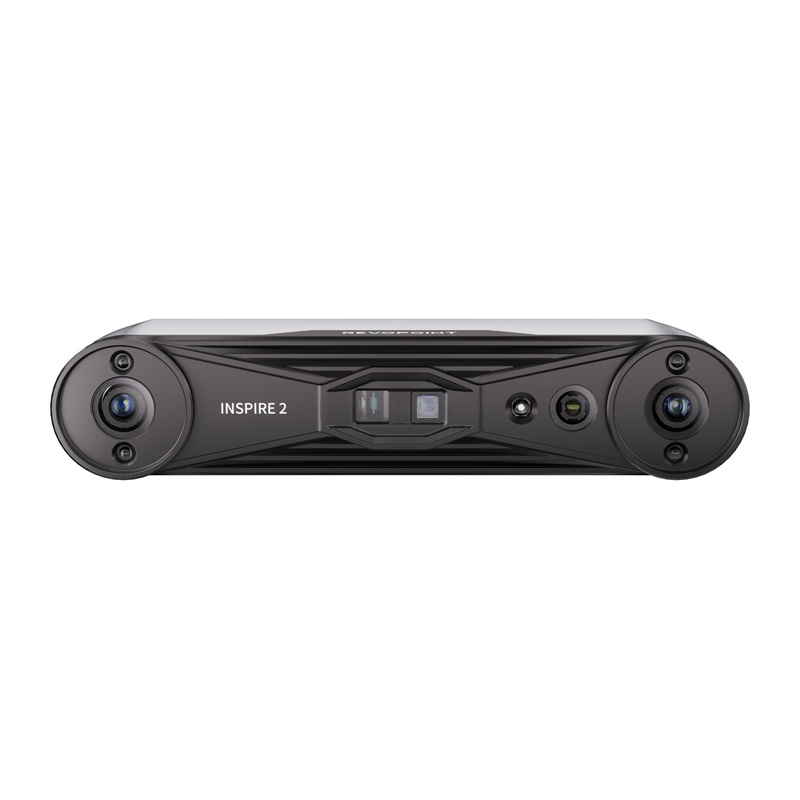

The Revopoint Inspire 2 is a compact handheld 3D scanner designed for mobile and stationary workflows. Combining dual-camera technology, structured infrared light, and a multi-line laser, it supports objects ranging from 20 × 20 × 20 mm up to 2 × 2 × 2 m.

Key Features

Two scanning technologies: structured light for geometry capture and laser mode for intricate surfaces.
11 parallel infrared laser lines for scanning dark, shiny, or low-contrast objects.
Single-frame accuracy up to 0.05 mm and precision up to 0.03 mm.
Scanning speeds reach up to 90 fps in laser mode and 18 fps in structured light mode.
Lightweight 190 g build with support for Windows, macOS, Android, and iOS devices.
Direct export to STL, OBJ, PLY, FBX, GLTF, 3MF, and ASC formats.

Manufacturer	Revopoint
Model	Inspire 2
Technology	dual camera + infrared structured light + multi-line laser
Single-frame accuracy	up to 0.05 mm
Precision	up to 0.03 mm
Volumetric accuracy	0.05 mm + 0.1 mm × L (m)
Scanning range - minimum	20 × 20 × 20 mm
Scanning range - maximum	2 × 2 × 2 m
Structured light scanning speed	up to 18 fps
Laser scanning speed	up to 90 fps
Indoor working range	200 – 400 mm
Outdoor working range	150 – 250 mm
Field of view (FOV)	43° × 35°
RGB camera	1280 × 800
Color scanning	yes
Connectivity	Wi-Fi 6, Bluetooth 4.1, USB Type-C
File formats	PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Power supply	DC 5V, 1A (USB-C)
Weight	190 g
Dimensions	53 × 27 × 132 mm

What operating systems are compatible with the Inspire 2?

The scanner is compatible with computers running Windows or macOS, as well as mobile devices running Android or iOS.

What is included in the package?

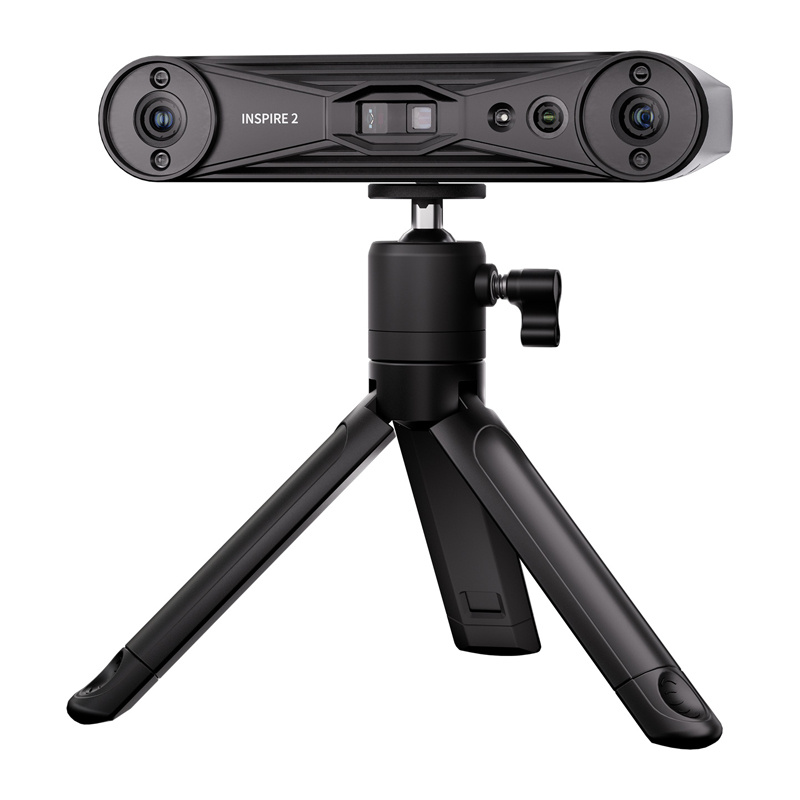

The package includes the Revopoint Inspire 2 3D scanner, a tripod, a 2 m USB Type-C to Type-C cable, a mini rotating platform, 200 positioning markers, outdoor filters, and a calibration board.

What object sizes can be scanned?

The scanner supports object sizes from 20 × 20 × 20 mm up to 2 × 2 × 2 m.
