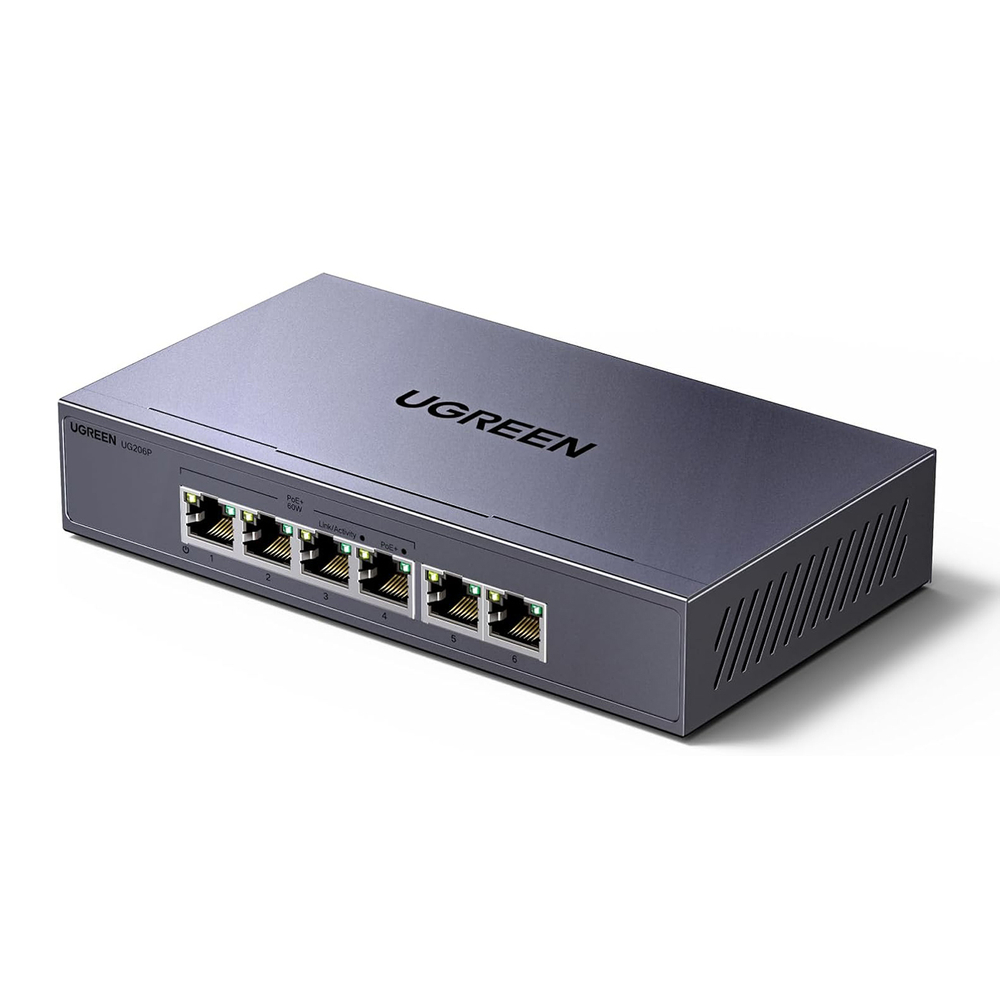

Ugreen CM753 6-Port 1Gb/s Ethernet Switch with PoE+ - Gray
Ugreen
| Products ID: | 189179 |
|---|---|
| Manufactured by: | Ugreen |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6941876270378 |
Delivery options to:
Choose countryThe Ugreen CM753 is a 6-port Gigabit Ethernet switch featuring PoE+ support, engineered for stable performance in home and business networks.
Simultaneous Power and Gigabit Data

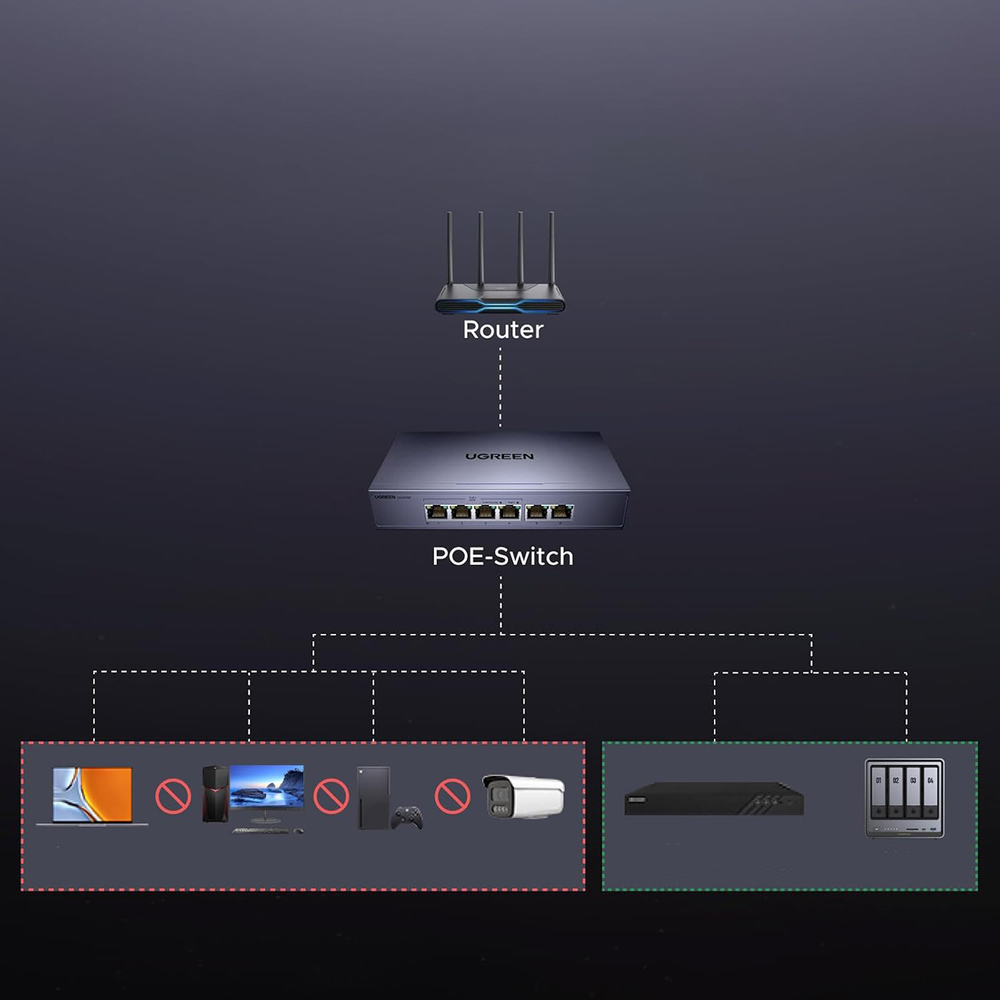

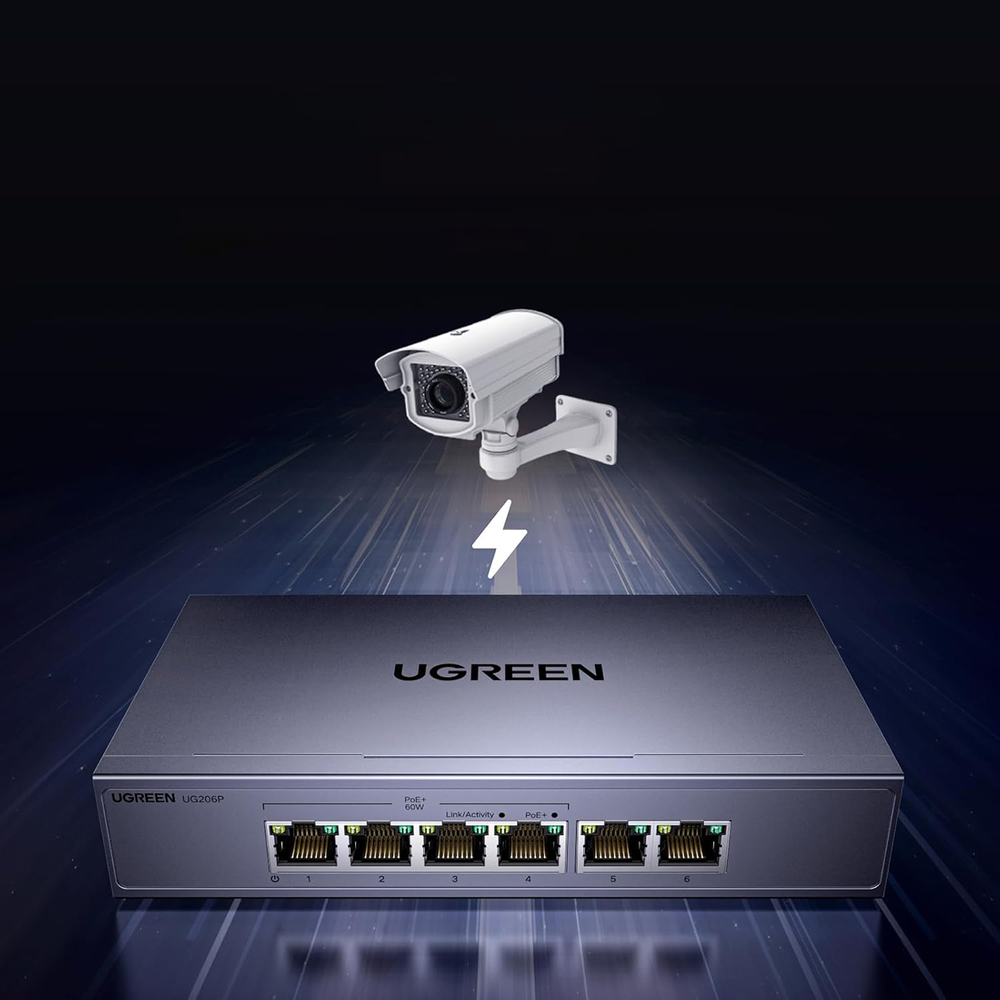

Equipped with six 1Gb/s RJ45 ports (four PoE+ ports and two uplink ports), the switch delivers data transmission and power to IP cameras, Wi-Fi access points, and surveillance equipment with up to 30W per port and a 60W total power budget.
Three Operating Modes and 6KV Protection
The device provides three operating modes: Standard, VLAN (isolating ports 1 through 4), and Extend, which lengthens the transmission reach up to 250 m. Integrated 6KV surge protection guards connected equipment against voltage spikes and interference.
Durable Metal Construction
A ventilated metal chassis combined with a Realtek chipset ensures efficient heat dissipation and continuous reliability. Plug & Play design allows instant setup without configuration, and the housing includes wall-mounting capability.
| Brand | Ugreen |
|---|---|
| Model | CM753 |
| LAN ports | 6x RJ45 1Gb/s (4x PoE+, 2x uplink) |
| Maximum PoE power | 30W per port, 60W total |
| Operating modes | Standard / VLAN / Extend (250 m) |
| Protection | 6KV surge protection |
| Housing | Metal with ventilation |
| Color | Gray |
| Installation | Can be hung on the wall |
How many ports support PoE and what is the power output?
The switch features 4 PoE+ ports providing up to 30W per port with a 60W total power budget.
What are the three selectable operating modes?
It features Standard mode, VLAN mode (isolates ports 1 to 4), and Extend mode, which extends connection range up to 250 m.
Can this switch be wall-mounted?
Yes, the housing is designed to support wall hanging.
