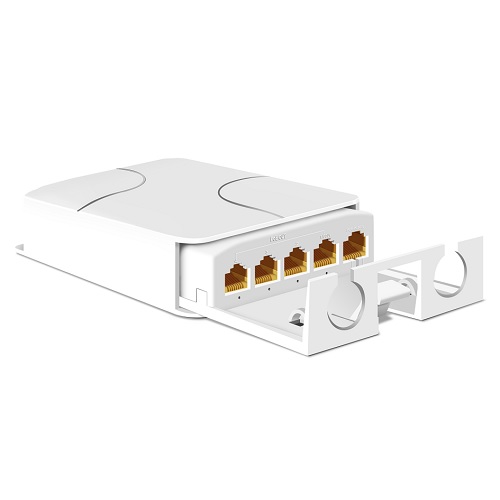

Gigabit PoE Extender Switch 4x PoE Output + 1x Uplink, 90W
Price: 20.90 €
| Products ID: | 172731 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000993666 |
Delivery options to:
Choose countryA waterproof Gigabit PoE extender switch designed to transmit Ethernet data and PoE power over a single line to multiple network devices.
Key Features
- Ports: 1x Gigabit PoE Uplink input and 4x Gigabit PoE outputs
- 90W total power budget (up to 60W on port 1, max 30W on ports 2–4)
- Extend mode for transmission up to 250m at 10/100 Mbps
- Supports VLAN and Port Isolation mode
- Compliant with IEEE 802.3af and IEEE 802.3at standards
- Built-in LED indicators and waterproof design
| PoE Input | 1x 10/100/1000M RJ45 |
|---|---|
| PoE Output | 4x 10/100/1000M RJ45 |
| Total PoE Power | 90W |
| Port 1 Output Power | Max 60W |
| Ports 2–4 Output Power | Max 30W/port |
| PoE Standards | IEEE802.3AF, IEEE802.3AT |
| Network Standards | IEEE802.3, IEEE 802.3u, IEEE 802.3x |
| Power Pin Assignment | 1,2(+)/3,6(-) or 4,5(+)/7,8(-) |
| MAC Address Table | 2k |
| Working Temperature | -10°C~+55°C |
| Dimensions | 129x90x30mm |
| Weight | 80g |
What is the maximum power output per PoE port?
The first output port supports up to 60W, while ports 2 through 4 support up to 30W per port, with a total power budget of 90W.
How far can this PoE extender reach?
It transmits data and power up to 100 meters in standard mode, and up to 250 meters at 10/100 Mbps in Extend mode.
