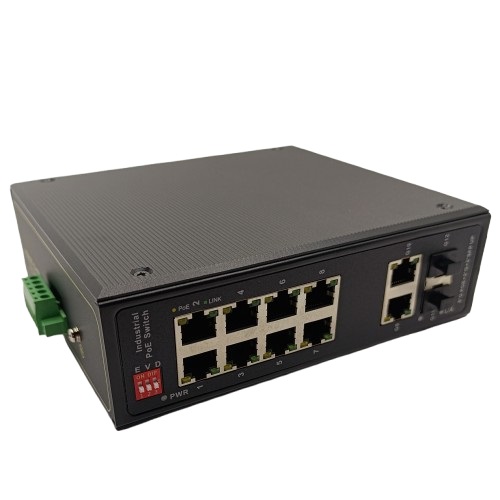

Industrial PoE Switch 8x Gigabit PoE, 2x Gigabit Uplink, 2x SFP, 120W
Price: 141.70 €
| Products ID: | 172722 |
|---|---|
| Manufactured by: | Extra Digital |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000993581 |
Delivery options to:
Choose countryUnmanaged industrial PoE switch equipped with 8 Gigabit PoE ports, 2 Gigabit RJ45 uplink ports, and 2 Gigabit SFP optical slots.
Key Features
- 8x 10/100/1000M PoE ports supporting IEEE 802.3af/at (up to 30W per port)
- 2x 10/100/1000M RJ45 uplink ports and 2x 1000M SFP slots
- DC 12-40V input with redundant dual power terminals
- IP40 protection level with DIN-rail type installation
- 8K MAC address table and 4M buffer memory
| Device Type | Unmanaged Industrial PoE Switch |
|---|---|
| Total Power | 120W |
| PoE Ports | 8x 10/100/1000Base-TX (IEEE 802.3af/at) |
| PoE Power per Port | Standard 15.4W / Max 30W |
| PoE Pin Assignment | 1,2(+) / 3,6(-) |
| RJ45 Uplink Ports | 2x 10/100/1000M RJ45 |
| SFP Ports | 2x 1000Base-X SFP |
| Input Voltage | DC 12-40V |
| Output Voltage | 48V |
| Power Interface | 5-pin Phoenix terminal (redundant V+, V-) |
| Protection Level | IP40 |
| Installation Type | DIN-rail type |
| MAC Address Table | 8K |
| Buffer Memory | 4M |
What PoE standard do the ports support?
Ports 1 to 8 support IEEE 802.3af/at intelligent recognition, delivering a standard 15.4W and up to 30W maximum per port.
What is the power input requirement?
The switch supports DC 12-40V input voltage via a redundant dual-power 5-pin Phoenix industrial terminal.
How is the switch mounted?
The switch is designed for rail-type installation and features an IP40 protection rating.
