Gigabit PoE Extender 100m, 1x RJ45 Input, 2x RJ45 Output

Q: How many ports are available on this PoE extender?

It features 1 Gigabit RJ45 PoE input port and 2 Gigabit RJ45 PoE output ports.

Q: What cable type is recommended for this extender?

It works with Cat5 or higher UTP cables for distances under 100 meters.

Gigabit PoE Extender 100m, 1x RJ45 Input, 2x RJ45 Output — primary image

Price: 19.10 €

Products ID:	172713
Manufactured by:	Extra Digital
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	9990000993628

Delivery options to:

Choose country

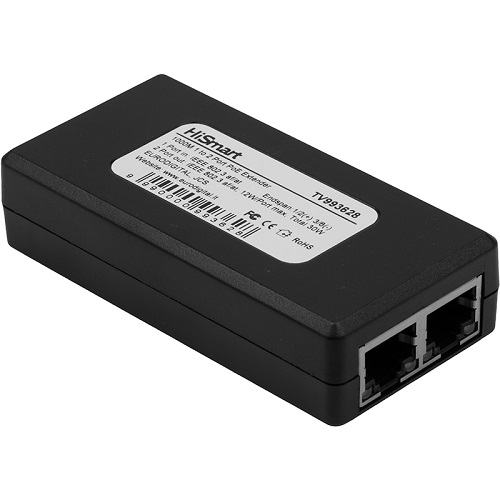

This Gigabit PoE and LAN extender transmits Ethernet data and PoE power over an extended transmission distance of 100 meters using 1 input and 2 output RJ45 ports.

Key Features

1x 10/100/1000M RJ45 PoE input port and 2x 10/100/1000M RJ45 output ports
Extends network and power transmission distance by up to 100 meters
Compliant with IEEE802.3af and IEEE802.3at PoE standards
PoE output power supporting 15.4W / 30W
LED indicators for Power, Network, and PoE operational status

PoE Input	1x 10/100/1000M RJ45
PoE Output	2x 10/100/1000M RJ45
Transmission Distance	Up to 100 m
PoE Output Power	15.4W / 30W
Standards & Protocols	IEEE802.3AF, IEEE802.3AT, IEEE 802.3i 10BASET, IEEE 802.3u 100BASET, IEEE 802.3x Flow Control, IEEE 802.3af DTE Power via MDI
Network Medium	Cat5 or higher UTP (< 100 m)
Power Pin Assignment	End-span 1,2(+)/3,6(-) or Mid-span 4,5(+)/7,8(-)
LED Indicators	Power, Network, PoE working status
Operating Temperature	-20°C ~ +55°C
Operating Humidity	10% ~ 90% (non-condensing)
Dimensions	85x40x22 mm
Certifications	CE, FCC, RoHS
