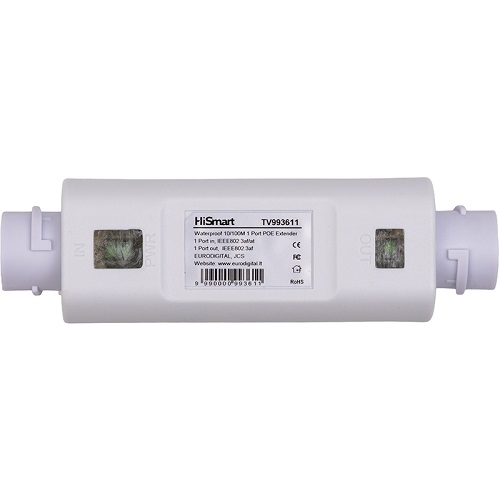

PoE 10/100M Extender 100m, IP66
Price: 19.10 €
| Products ID: | 172712 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000993611 |
Delivery options to:
Choose countryEthernet and PoE network extender designed to transmit data and PoE power over extended cable distances.
Key Features
- Extends Ethernet data and PoE power transmission by 100 meters (up to 250 meters in Extender mode)
- Compliant with IEEE 802.3af and IEEE 802.3at PoE standards
- Supports PoE input voltage of 48V or 57V and output power of 15.4W/30W
- Waterproof design with IP66 safety class
- LED indicators for Power, Network, and PoE working status
| PoE input | 1x 10/100M RJ45 connector |
|---|---|
| PoE output | 1x 10/100M RJ45 connector (15.4W / 30W) |
| PoE standards | IEEE 802.3af, IEEE 802.3at |
| Network standards | IEEE 802.3i 10BASET, IEEE 802.3u 100BASET, IEEE 802.3x Flow Control, IEEE 802.3af DTE Power via MDI |
| PoE input voltage | 48V or 57V |
| Transmission distance | 100 m (up to 250 m in Extender mode) |
| Network medium | Cat5 or more UTP (< 100 meter) |
| Protection class | IP66 (waterproof) |
| Operating temperature | -20°C ~ +55°C |
| Operating humidity | 10% ~ 90% (non-condensing) |
| Dimensions | 96 x 25 x 22 mm |
| Weight | 66 g |
| Safety certifications | CE, FCC, RoHS |
What is the maximum transmission distance?
The standard transmission extension distance is 100 meters, and it can reach up to 250 meters in Extender mode.
What PoE standards does this extender support?
It is compliant with IEEE 802.3af and IEEE 802.3at standards, delivering up to 15.4W or 30W output power.
