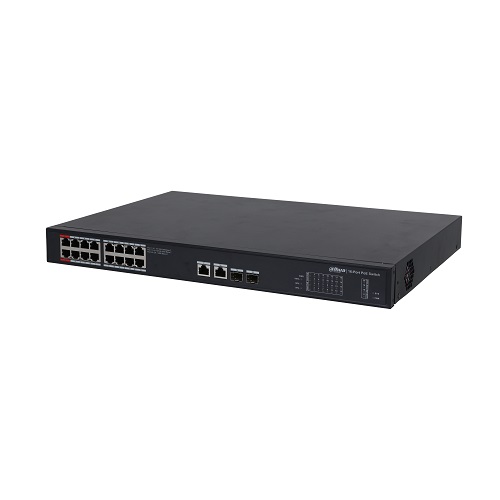

PoE Switch DH-PFS3220-16GT-240 1000Mbps 16+2G Uplink
Price: 278.20 €
| Products ID: | 171236 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6923172541185 |
Delivery options to:
Choose countryDH-PFS3220-16GT-240 is an unmanaged Gigabit PoE switch featuring intelligent power consumption management and IEEE802.3bt support up to 90W. It is designed for small and micro-scale monitoring networks such as offices, schools, hotels, and hospitals.
Key Features
- 16 Gigabit PoE ports with dedicated RJ45 and SFP optical uplink ports.
- Supports IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt standards.
- Ports 1 and 2 provide Hi-PoE power supply up to 90W.
- Total PoE power budget of 240W.
- 52Gbps switching capacity and 29.76Mpps packet forwarding rate.
- Built-in 4kV common mode lightning protection.
- Plug and play deployment without complex configuration.
| Model | DH-PFS3220-16GT-240 |
|---|---|
| PoE Ports | 16x 10/100/1000 Base-T |
| Uplink Ports (RJ45) | 2x 10/100/1000 Base-T |
| Uplink Ports (SFP) | 2x 1000 Base-X |
| Total PoE Budget | 240W |
| PoE Protocols | IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt |
| Hi-PoE Power (Ports 1 & 2) | up to 90W |
| Switching Capacity | 52Gbps |
| Packet Forwarding Rate | 29.76Mpps |
| Packet Buffer Memory | 4Mbit |
| Power Supply | AC 100-240V, 50/60Hz |
| Lightning Protection | Common mode 4kV, differential mode 2kV |
| Operating Temperature | -10°C~55°C |
| Operating Humidity | 10%~90% |
| Dimensions (W×D×H) | 440mm x 300mm x 44mm |
What is the total PoE power budget of the switch?
The switch has a total PoE power budget of 240W, with up to 30W available per standard PoE port.
Does this switch support 90W high-power PoE devices?
Yes, ports 1 and 2 support Hi-PoE and the IEEE802.3bt standard up to 90W per port.
What uplink interfaces are included?
It includes 2 Gigabit RJ45 uplink ports (10/100/1000 Base-T) and 2 Gigabit SFP optical uplink ports (1000 Base-X).
