Gigabit PoE Switch PFS3006-4GT-60 (4x PoE, 2x Uplink, 60W)
70.80 €
Dahua Technology Co., Ltd
Products ID: 171235
In supplier warehouse
Available to order: 10+ pcs.
Delivery Time 5–10 business days
Delivery options to:

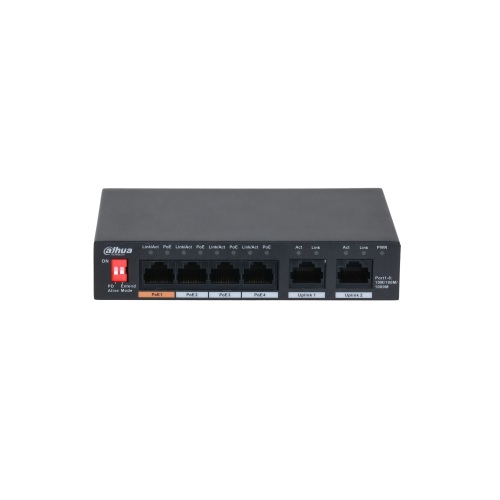

Choose countryThe PFS3006-4GT-60 is an unmanaged desktop gigabit PoE switch equipped with 4 PoE ports and 2 uplink ports for reliable data transmission and device power delivery.
Key Features
- 4 Gigabit PoE ports and 2 Gigabit RJ45 uplink ports
- Hi-PoE support on port 1 up to 60W, total PoE power budget of 60W
- Intelligent PoE Watchdog for automatic device monitoring and restart
- Long-distance transmission mode up to 250 m at 10 Mbps
- 14 Gbps switching capacity and 2K MAC address table
| PoE Ports | 4 x 10/100/1000 Mbps RJ45 |
|---|---|
| Uplink Ports | 2 x 10/100/1000 Mbps RJ45 |
| Total PoE Power Budget | 60W |
| PoE Standards | IEEE 802.3af, IEEE 802.3at, Hi-PoE |
| Switching Capacity | 14 Gbps |
| Packet Buffer Memory | 1 Mbit |
| MAC Table Size | 2K |
| Power Input | DC 48V-57V |
| Operating Temperature | -10°C ~ 55°C |
| Dimensions (W x D x H) | 130 mm x 85 mm x 26 mm |
| Weight | 300 g |
| EAN | 6923172523235 |
|---|
What is the maximum power output per PoE port?
Port 1 provides Hi-PoE output up to 60W, while ports 2 to 4 support up to 30W each, within a total PoE power budget of 60W.
How far can data and power be transmitted in Extend Mode?
When Extend Mode is activated, the PoE transmission distance reaches up to 250 m with bandwidth adjusted to 10 Mbps.
