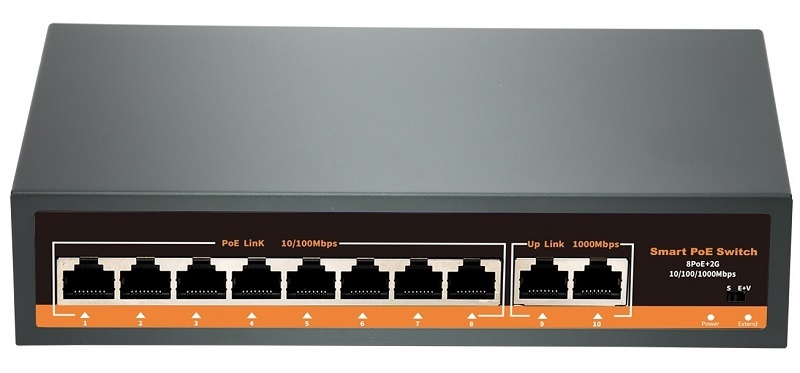

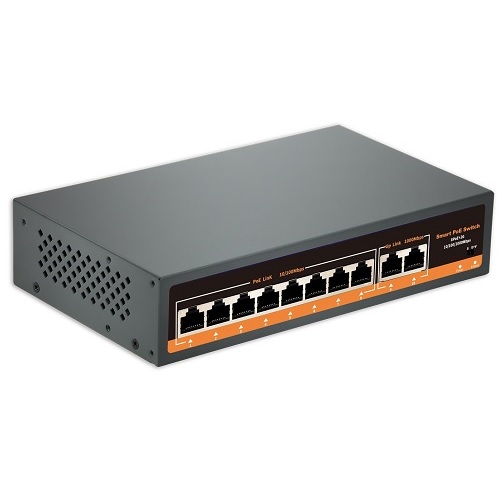

PoE Switch 8x 100Mbps PoE + 2x Gigabit Uplink, 120W
Price: 52.00 €
| Products ID: | 172732 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000993697 |
Delivery options to:
Choose countryAn 8-port PoE network switch with 2 Gigabit uplink ports designed for reliable network data transmission and direct power delivery to connected devices.
Key Features
- 8x 10/100Mbps PoE ports supporting IEEE 802.3af/at standards
- 2x 10/100/1000Mbps RJ45 Gigabit uplink ports
- Total PoE power budget of 120W with up to 30W per single port
- DIP switch for Standard and Extend+VLAN modes with transmission up to 250m
- PoE Watchdog self-recovery functionality and 6kV surge protection
- Integrated internal power supply and rack-mountable housing
| Ports | 8x 10/100Mbps PoE, 2x 10/100/1000Mbps RJ45 Uplink |
|---|---|
| PoE Standards | IEEE 802.3af/at |
| Network Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at |
| Total Power Budget | 120W (52V, 2.3A) |
| Maximum Power per Port | 30W |
| Standard Power per Port | 15.4W |
| Switching Capacity | 12Gbps |
| PoE Transmission Distance | up to 250m |
| MAC Address Table | 2K |
| Input Voltage | 110-240V AC |
| Surge Protection | 6kV |
| Supported Cable | UTP Cat5e or newer |
| Mounting Type | Rack mounting |
| Operating Temperature | -10°C ~ +55°C |
| Dimensions | 200x118x44 mm |
| Weight | 1kg |
What is the total PoE power budget of this switch?
The switch provides a total PoE power budget of 120W, supporting up to 30W on a single port.
What is the maximum PoE transmission distance?
The maximum transmission distance for PoE power and data is up to 250 meters.
Is the power cable included with the switch?
Yes, the switch has an integrated power supply and includes a power cable.
