Twisted Pair Ethernet Network Extender 10/100M, up to 300m / 500m

Price: 64.70 €

Products ID:	187157
Manufactured by:	Extra Digital
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	9990000917273

Delivery options to:

Choose country

This Ethernet network extender is designed to extend local network signals well beyond standard cable limits. It transmits network data up to 500 metres using CAT5 or CAT5e UTP twisted-pair cable, or up to 300 metres using a two-wire line connected via Phoenix terminal blocks.

Key Features and Performance

Complete kit includes transmitter (TX) and receiver (RX) modules.
Supports 100 Mbps Ethernet speeds with actual data throughput up to 94 Mbps.
IGMP multicast support for efficient video and data streaming.
Low power consumption of up to 2 W with DC 5-12V operating voltage.
LED indicators for power, SLAN link, and LAN activity status.

Installation and Practical Use

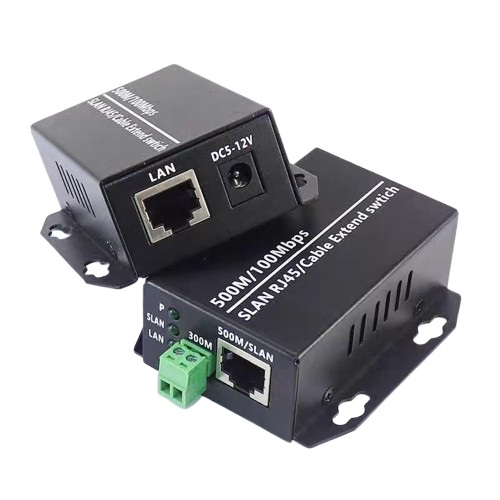

The device is suitable for IP cameras, CCTV surveillance systems, and other Ethernet networking hardware where standard cable distance is insufficient. Its durable black metal housing features integrated mounting brackets for secure installation on walls, inside networking cabinets, or near connected equipment. It operates reliably across temperatures from -10 °C to +70 °C.

Power supply voltage	5-12 V DC ±10%
Power consumption	up to 2 W
Transmission medium	CAT5 / CAT5e UTP twisted-pair cable / 2-wire cable
Maximum transmission distance	up to 500 m (RJ45 / SLAN) / up to 300 m (Phoenix terminals)
Network speed	100 Mbps Ethernet
Maximum data throughput	94 Mbps
Multicast support	IGMP multicast
Connectors	RJ45, 2-pin Phoenix-type terminal connector, DC power socket
LED indicators	Power, SLAN, LAN status
Operating temperature	-10 °C to +70 °C
Operating humidity	0-95% RH
Power adapter	12 V, EU plug
Housing colour	Black
Package contents	Transmitter, receiver, power adapter (12V, EU plug)
Warranty	24 months

What is the maximum transmission range of this extender?

It can extend network signals up to 500 metres using CAT5/CAT5e UTP twisted-pair cable via RJ45, or up to 300 metres using a two-wire cable via Phoenix terminals.

What items are included in the package?

The package includes one transmitter module, one receiver module, and a 12V DC power adapter with an EU plug.

What throughput can be achieved with this extender?

The device operates at 100 Mbps Ethernet link speed and achieves an actual data throughput of up to 94 Mbps.
