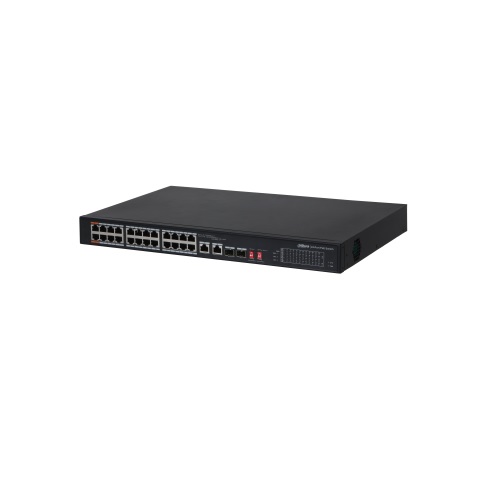

PoE Switch S3226-24ET-240 24-Port 240W
Price: 241.60 €
| Products ID: | 172350 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6923172529411 |
Delivery options to:
Choose countryThe S3226-24ET-240 is a 24-port unmanaged PoE switch with dual Gigabit uplink ports, engineered for small and micro-scale monitoring networks in offices, schools, hotels, and healthcare facilities.
Key Features
- 24 10/100 Mbps PoE RJ45 ports and 2 Gigabit RJ45 / SFP combo uplink ports
- 240W total PoE power budget with Hi-PoE support up to 60W on ports 1-2
- DIP switch functionality supporting port isolation, QoS, PoE watchdog, and long-distance transmission
- Compliant with IEEE802.3af, IEEE802.3at, and Hi-PoE standards
- 8.8 Gbps switching capacity with an 8K MAC address table
| Model | S3226-24ET-240 |
|---|---|
| PoE Ports | 24 x 10/100 Mbps RJ45 |
| Uplink Ports | 2 x 10/100/1000 Mbps RJ45, 2 x 1000 Mbps SFP (combo) |
| Total PoE Budget | 240 W |
| Port PoE Consumption | Ports 1-2: up to 60W, Ports 3-24: up to 30W |
| PoE Protocols | IEEE802.3af, IEEE802.3at, Hi-PoE |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 6.5472 Mpps |
| MAC Table Size | 8K |
| Power Supply | AC 100-240V |
| Operating Temperature | -10°C ~ 55°C |
| Dimensions (W x D x H) | 440 mm x 300 mm x 44 mm |
What is the total PoE power capacity of this switch?
The switch delivers a total PoE power budget of 240W, providing up to 60W on ports 1-2 and up to 30W on ports 3-24.
What uplink interfaces are available on the S3226-24ET-240?
It features 2 Gigabit RJ45 uplink ports and 2 Gigabit SFP optical combo ports for long-distance uplink connections.
