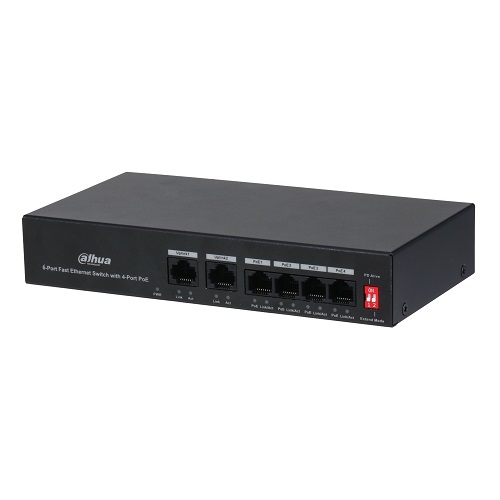

PoE Switch PFS3006-4ET-36 (6 Ports, 4x PoE, 36W)
Price: 46.00 €
| Products ID: | 174120 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6939554946967 |
Delivery options to:
Choose countryThe PFS3006-4ET-36 is a 6-port Fast Ethernet switch offering 4 PoE power supply ports and 2 uplink ports. It is designed for surveillance and networking applications, supporting PoE watchdog for intelligent automated operation.
Key Features
- 4 PoE ports (10/100 Mbps) and 2 uplink ports (10/100 Mbps)
- IEEE 802.3af and IEEE 802.3at PoE standards support
- Total PoE power budget up to 36W (up to 30W per port)
- Up to 250 m long-distance PoE transmission via bandwidth limit
- Built-in PoE watchdog to eliminate manual restarts
- 1.2 Gbps switching capacity
| Model | PFS3006-4ET-36 |
|---|---|
| Data Ports | 4x 10/100 Mbps PoE Base-TX, 2x 10/100 Mbps Uplink Base-TX |
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| Total PoE Budget | ≤ 36W |
| PoE Port Power | Port 1–4 ≤ 30W |
| Switching Capacity | 1.2 Gbps |
| Packet Forwarding Rate | 0.89 Mbps |
| MAC Table Size | 2K |
| Jumbo Frame | 2048 byte |
| Power Supply | AC 100–240V |
| Power Consumption | Idling: 0.5W; Full load: 36W |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10%–90% RH |
| Dimensions (W × D × H) | 194.0 mm x 108.1 mm x 35.0 mm |
| Weight | 0.56 kg |
| Certifications | CE: EN60950, FCC |
What is the maximum PoE transmission distance for this switch?
After applying the bandwidth speed limit via DIP switch, it supports PoE transmission up to 250 meters.
What is the total PoE power budget?
The overall PoE power budget is up to 36W, with individual PoE ports supplying up to 30W.
What is the function of the PoE watchdog?
The PoE watchdog monitors connected devices and automatically restarts them if an issue occurs, reducing manual maintenance.
