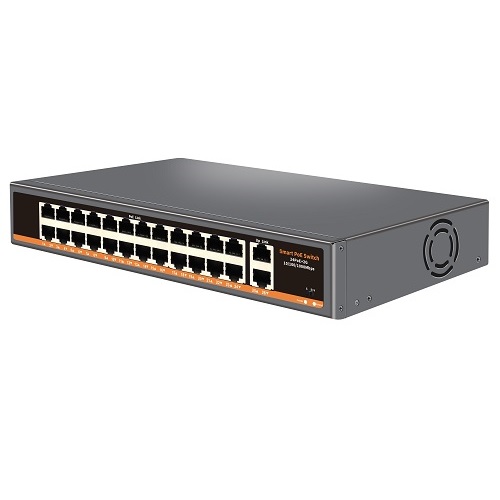

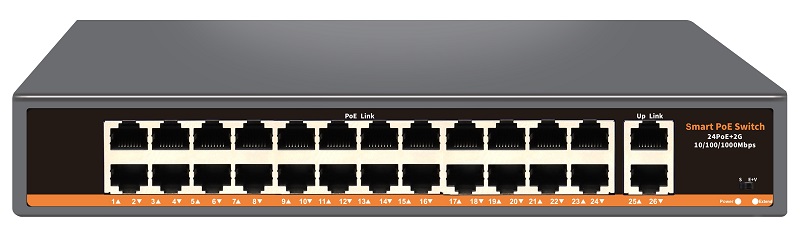

PoE Switch 24x 100Mbps PoE+ 2x Gigabit Uplink, 400W

Price: 95.60 €

Products ID:	178694
Manufactured by:	Hismart
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	9990000993710

Delivery options to:

Choose country

This 24-port PoE network switch features 2 Gigabit RJ45 uplink ports and a 400W total PoE power budget to deliver reliable network connectivity and power to connected devices.

Key Features

24x 10/100Mbps PoE ports supporting IEEE 802.3af/at and 2x 10/100/1000Mbps RJ45 uplink ports
Total PoE power budget of 400W with up to 30W output per port
DIP switch for Standard and Extend+VLAN modes with port isolation support
Extended PoE power transmission range up to 250m
Built-in 6kV surge protection on network ports
12Gbps switching capacity and 4K MAC address table
Integrated power supply with rack-mount design

Ports	24x 10/100Mbps PoE ports; 2x 10/100/1000Mbps RJ45 uplink ports
Network protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at
Input voltage	110-240V AC, 50/60Hz
PoE pin assignment	Default mode: 1/2(+), 3/6(-)
PoE standards	IEEE802.3af/at
MAC address table	4K
Forwarding rate	10Mbps: 14880pps; 100Mbps: 148800pps; 1000Mbps: 1488000pps
Supported cable type	UTP Cat5e or newer
Maximum power per port	30W; IEEE802.3af/at
Standard power per port	15.4W
Switching capacity	12Gbps
PoE transmission distance	250m
Total power budget	400W (52V, 7.7A)
LED indicators	Power, network, Extend mode
Built-in power supply	AC 110-240V, 400W
Operating temperature	-10°C ~ +55°C
Operating humidity	10-90% RH
Dimensions	270 x 180 x 44 mm
Weight	2kg
Mounting type	Rack mounting
Warranty	24 months
