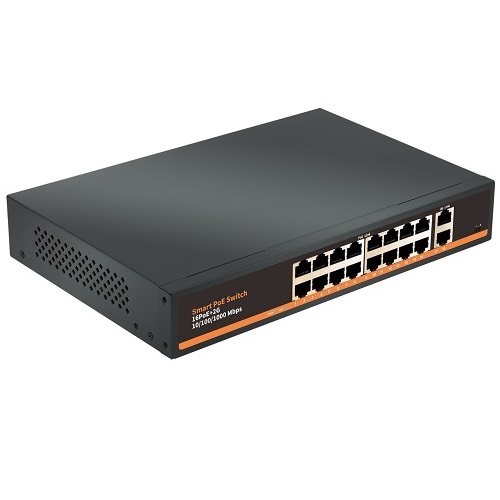

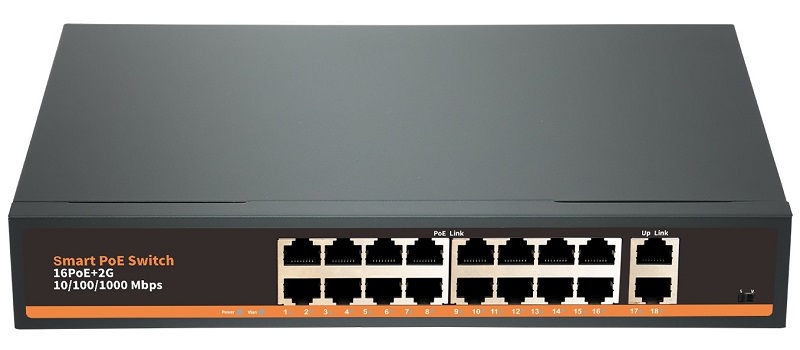

PoE Switch 16x Gigabit PoE + 2x Gigabit UPLINK, 250W
Price: 107.20 €
| Products ID: | 178695 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000993680 |
Delivery options to:
Choose country16-port Gigabit PoE switch with 2 Gigabit Uplink ports delivers reliable high-speed network connectivity and power supply for compatible devices.
Key Features
- 16 Gigabit PoE ports supporting IEEE 802.3af/at with up to 30W per port
- 2 Gigabit RJ45 uplink ports for network expansion
- Total PoE power budget of 250W with integrated 52V power supply
- DIP switch for Standard and VLAN isolation modes
- Built-in 6kV surge protection on network ports
- Designed for rack mounting installation
| Ports | 16x 10/100/1000Mbps PoE ports, 2x 10/100/1000Mbps RJ45 uplink ports |
|---|---|
| Network protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at |
| Input voltage | 110-240V AC, 50/60Hz |
| PoE pin assignment | 1/2(+), 3/6(-) |
| PoE standards | IEEE802.3af/at |
| MAC address table | 2K |
| Forwarding rate | 100Mbps: 148 800 pps; 1000Mbps: 1 488 000 pps |
| Supported cable type | UTP Cat5e or newer |
| Maximum power per port | 30W (IEEE802.3af/at) |
| Standard power per port | 15.4W |
| Switching capacity | 12Gbps |
| PoE power transmission distance | 100m |
| Total power budget | 250W (52V, 4.8A) |
| LED indicators | Power, Network |
| Built-in power supply | AC 110-240V, 250W |
| Operating temperature | -10°C ~ +55°C |
| Operating humidity | 10-90% RH |
| Dimensions | 270 x 181 x 44 mm |
| Weight | 2kg |
| Mounting type | Rack mounting |
What is the maximum PoE output per port?
Each port delivers a standard 15.4W and up to 30W maximum under IEEE 802.3af/at, within a 250W total power budget.
Is a power cable included?
Yes, a power cable is included for the integrated 110-240V AC power supply.
What does the VLAN DIP switch mode do?
The VLAN mode isolates each PoE port from one another while maintaining communication with the uplink ports.
