PoE 10/100M 2-Wire Network Extender up to 200m
Price: 49.60 €
| Products ID: | 173280 |
|---|---|
| Manufactured by: | Extra Digital |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000993963 |
Delivery options to:

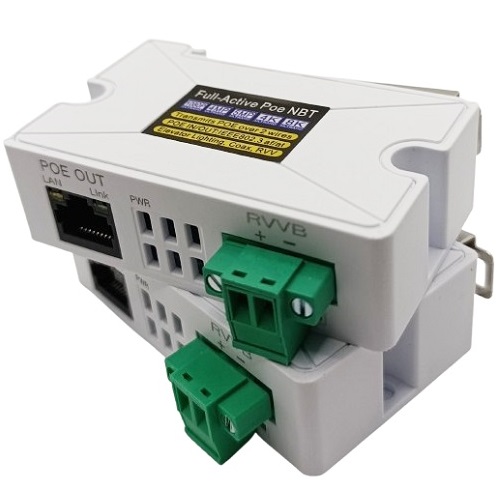

Choose countryThe PoE 10/100M network extender transmits Ethernet data and PoE power over long distances using an existing two-wire cable. The set includes a transmitter and receiver pair, making it suitable for upgrading analog surveillance infrastructure to IP cameras without running new network cables.
Key Features
- Ethernet data and PoE power transmission over a single two-wire cable
- Transmission distance between 120 and 200 meters
- Supports 10/100 Mbps data transfer speeds
- IEEE 802.3af/at PoE standard support
- Flame-retardant plastic housing
- Designed for indoor use
| Transmission distance | 120-200 m |
|---|---|
| Data transmission speed | 10/100 Mbps |
| Input voltage | 48-57 V |
| Output voltage | 48 V |
| Output current | 0.6 A |
| Total output power | 15 W |
| PoE standards | IEEE 802.3af/at |
| Network interface | RJ45 |
| Connectors | 2-pin terminals |
| Transmission medium | Two-wire cable |
| Housing material | Flame-retardant plastic |
| Operating environment | Indoor use |
What is included in the package?
The set includes one PoE transmitter and one PoE receiver for point-to-point connection.
What is the maximum transmission range?
The transmission range is 120 to 200 meters, depending on cable type, line quality, and line loss.
Does the 2-pin connection require specific polarity?
No, no polarity needs to be observed when connecting the two-wire cable to the 2-pin terminals.
