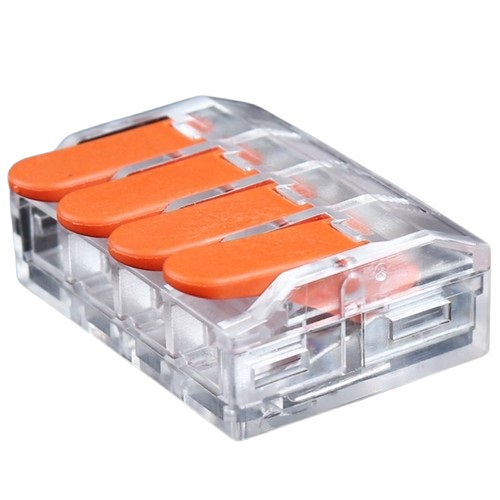

Splicing Wire Connectors with Lever 4x 0.5-6.0mm², 41A, 450V, 20 pcs
14.10 €
Hismart
Products ID: 172057
In supplier warehouse
Available to order: 5 pcs.
Delivery Time 5–10 business days
Delivery options to:
Choose countryLever wire splicing connectors designed for fast and secure connection of solid, fine-stranded, single-strand, or multi-strand conductors.
Key Features
- 4 connection points for wire cross-sections from 0.5 to 6.0mm²
- Compact housing design saves space inside junction boxes
- Transparent housing enables clear visual inspection of the connection
| Number of connection points | 4 |
|---|---|
| Conductor cross-sectional area | 0.5-6.0mm² |
| Rated voltage | 450V |
| Rated current | 41A |
| Rated surge voltage (II/2) | 4kV |
| Insulating material | Polycarbonate (PC) |
| Operating temperature | 25~+85°C |
| Dimensions | 30.5x23x11.5mm |
| Weight | 153g (20pcs) |
| Color | Transparent, orange |
| Set includes | 20 pcs |
| Warranty | 24 months |
| EAN | 9990000240463 |
|---|
What conductor wire sizes are supported?
These connectors support conductor cross-sectional areas from 0.5 to 6.0mm².
How many connectors are included in the pack?
The set includes 20 pieces.
What types of conductors can be connected?
They are compatible with solid, fine-stranded, single-strand, and multi-strand conductors.
