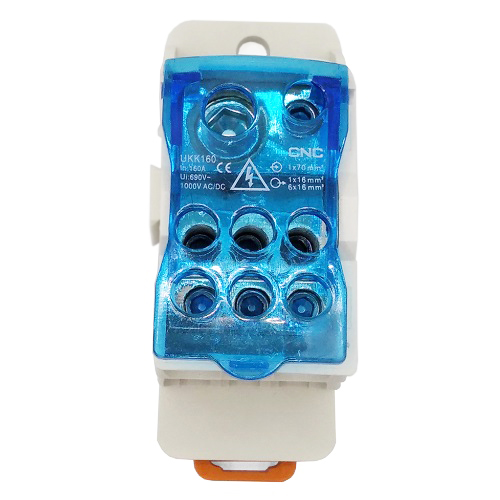

Unipolar Junction Box 160A DIN Rail
Price: 15.00 €
| Products ID: | 171164 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942108747736 |
Delivery options to:
Choose countryUnipolar electrical cable junction box designed for cable branching and connections in electrical distribution panels.
Features
- Designed for standard DIN rail mounting
- Transparent cover for convenient cable connection inspection
- Flame retardant PA nylon body (UL94 V0) with high insulation properties
- Brass plated terminals for strong conductivity and corrosion resistance
| Nominal current | 160 A |
|---|---|
| Voltage | AC/DC 690-1000 V AIEC |
| Connected cable cross-section | 1x (10-35 mm²) / 7x (2.5-16 mm²) |
| Installation | On a DIN rail |
| Terminals | Brass plated |
| Body material | PA nylon |
| Safety class | V0 UL94 |
| Dimensions | 30 x 76.5 x 45.5 mm |
What cable cross-sections are supported?
The junction box accommodates 1x (10-35 mm²) and 7x (2.5-16 mm²) cable cross-sections.
How is this unit mounted?
It is designed for mounting on a standard DIN rail.
