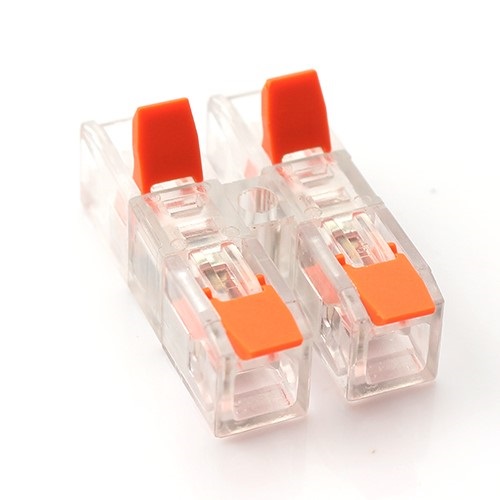

Inline Splicing Connectors with Lever 2-2, 0.2–4.0mm², 32A, 20pcs
Price: 12.70 €
| Products ID: | 171883 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000240494 |
Delivery options to:
Choose countryInline splicing wire connectors with lever mechanism designed for fast and secure connection of solid and stranded conductors.
Features
- Compatible with solid, stranded, and fine-stranded conductors 0.2–4.0 mm²
- Transparent polycarbonate housing for quick visual connection inspection
- Compact design saves space inside junction boxes
- Rated for 32 A current and 450 V voltage
| Number of connection points | 4 |
|---|---|
| Rated voltage | 450V |
| Rated current | 32A |
| Rated surge voltage (II/2) | 4kV |
| Conductor cross-sectional area | 0.2-4.0mm² |
| Insulating material | Polycarbonate (PC) |
| Operating temperature | 25~+85°C |
| Dimensions | 32x20x10mm |
| Weight | 116g (20pcs) |
| Color | Transparent, orange |
| Quantity per set | 20 pcs |
| Warranty | 24 months |
What conductor wire sizes are supported?
These connectors support conductor cross-sectional areas from 0.2 to 4.0 mm² for solid and stranded conductors.
How many connectors are included in the package?
The set includes 20 pieces.
