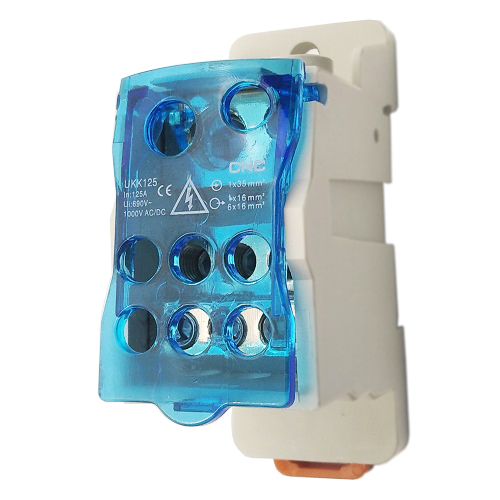

Unipolar Junction Box 125A for DIN Rail
Price: 14.30 €
| Products ID: | 171163 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942108747743 |
Delivery options to:
Choose countryThe unipolar cable junction box is designed for connecting and branching electrical cables in power distribution systems and control panels.
Key Features
- Suitable for DIN rail mounting in electrical panels
- Transparent cover allows visual inspection of connections
- Housing made of flame-retardant PA nylon with strong insulation
- Brass-plated terminals provide good conductivity and corrosion resistance
| Nominal current | 125 A |
|---|---|
| Voltage | AC/DC 690-1000 V AIEC |
| Cable cross-sectional area | 1x (10-35 mm²) / 7x (2.5-16 mm²) |
| Installation | DIN rail |
| Terminals | Brass plated |
| Body material | PA nylon |
| Safety class | V0 UL94 |
| Dimensions | 30 x 76.5 x 45.5 mm |
What cable cross-sections can be connected?
It accommodates 1 cable of 10-35 mm² and 7 cables of 2.5-16 mm² cross-sectional area.
Where can this junction box be mounted?
This junction box is designed for mounting directly on a standard DIN rail inside electrical panels.
