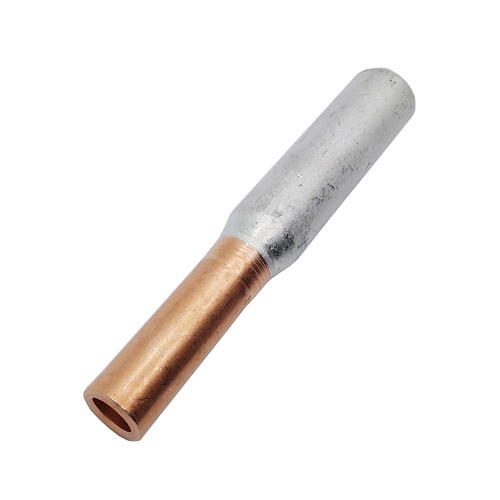

Bimetallic Cable Connector Al-Cu for 35+25 mm² Cables, 10 pcs
Price: 22.30 €
| Products ID: | 171096 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000822249 |
Delivery options to:
Choose countryBimetallic cable connectors designed to join aluminium sector conductors to conventional stranded copper conductors.
Key Features
- Prefilled with jointing compound
- Solid centre barrier
- Friction welded construction
- Suitable for 35.0 mm² aluminium and 25.0 mm² copper cable cross-sections
- Total length of 85 mm
| Application | Joining aluminium to copper conductors |
|---|---|
| Aluminium cable cross-section | 35.0 mm² |
| Copper cable cross-section | 25.0 mm² |
| Material | Aluminium ≥ 99.5% + Copper ≥ 99.9% |
| Surface | Bright |
| Insulated | No |

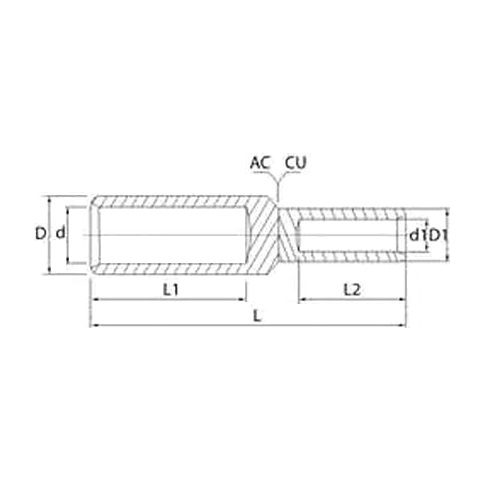

| Length | 85 mm |
| Aluminium connector depth | 42 mm |
| Copper connector depth | 30 mm |
| Inspection hole | No |
| Aluminium connector inner diameter | 8.5 mm |
| Aluminium connector outer diameter | 14 mm |
| Copper connector inner diameter | 7.0 mm |
| Copper connector outer diameter | 11 mm |
| Package quantity | 10 pcs |
What cable sizes are compatible with this link?
It is designed for 35.0 mm² aluminium conductors and 25.0 mm² copper conductors.
Does the connector contain jointing compound?
Yes, the connector is prefilled with jointing compound.
How many connectors are included in the package?
The set contains 10 bimetallic connectors.
