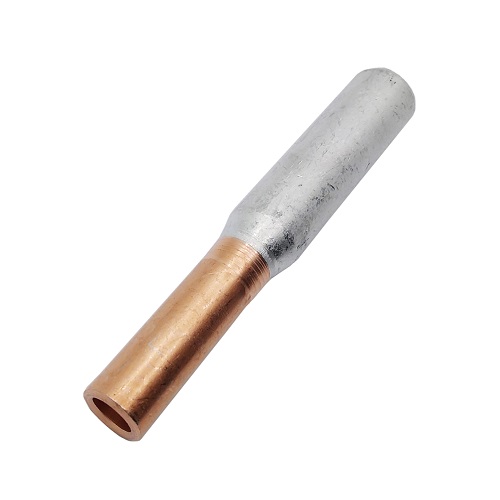

Bimetallic Cable Connector Al-Cu 25+16 mm², 10 pcs
Price: 19.80 €
| Products ID: | 171095 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000822232 |
Delivery options to:
Choose countryBimetallic connector link (Al+Cu) designed to join aluminum sector conductors to conventional stranded copper conductors.
Features
- Prefilled with jointing compound
- Solid centre barrier
- Friction welded
- Set includes 10 pieces

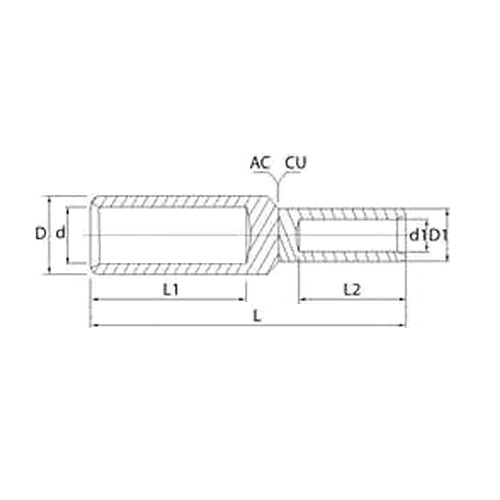

| Aluminium cable cross-section | 25.0mm² |
|---|---|
| Copper cable cross-section | 16.0mm² |
| Material | Aluminium ≥99.5% + copper ≥99.9% |
| Length | 80mm |
| Aluminium connector inner diameter | 7.0mm |
| Aluminium connector outer diameter | 12mm |
| Aluminium connector depth | 35mm |
| Copper connector inner diameter | 6.0mm |
| Copper connector outer diameter | 10mm |
| Copper connector depth | 30mm |
| Isolated | No |
| Inspection hole | No |
| Quantity per pack | 10 pcs |
What cable sizes are supported by this connector?
It is designed for 25.0mm² aluminium cables and 16.0mm² copper cables.
Does it contain jointing compound?
Yes, the connector is prefilled with jointing compound.
How many connectors are included?
The set includes 10 pieces.
