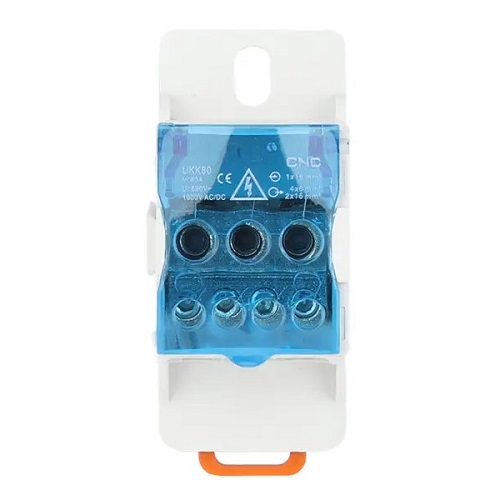

Unipolar Junction Box 80A DIN Rail Distribution Block
Price: 10.00 €
| Products ID: | 171178 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942108747750 |
Delivery options to:
Choose countryThe unipolar junction box is designed for cable connections and branching within electrical panels and distribution systems.
Key Features
- Mounting on a DIN rail
- Transparent cover for checking cable connections
- Flame retardant PA nylon body (UL94 V0)
- Brass plated terminals with corrosion resistance
| Nominal current | 80 A |
|---|---|
| Voltage | AC/DC 690-1000 V AIEC |
| Cable cross-sectional area | 1x (6-16 mm²) / 4x (2.5-6 mm²) / 2x (2.5-16 mm²) |
| Installation | On a DIN rail |
| Body material | PA nylon |
| Terminal material | Brass plated |
| Safety class | V0 UL94 (flame retardant) |
| Dimensions | 31 x 70 x 45.5 mm |
What cable cross-sections are supported by this junction box?
It supports cable cross-sections of 1x (6-16 mm²), 4x (2.5-6 mm²), and 2x (2.5-16 mm²).
How is the junction box mounted?
It is designed for mounting on a standard DIN rail in electrical panels.
