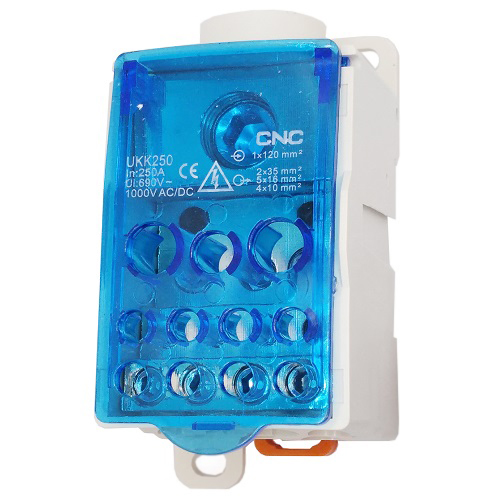

Unipolar Junction Box 250A DIN Rail Terminal Block
Price: 23.00 €
| Products ID: | 171184 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942108747729 |
Delivery options to:
Choose countryUnipolar electrical cable junction box designed for cable branching and connections in electrical distribution panels with DIN rail mounting.
Features
- Supports nominal current up to 250 A and voltage rating AC/DC 690–1000 V.
- Transparent cover enables easy visual inspection of cable connections.
- Flame retardant PA nylon body rated V0 UL94 for high-temperature resistance.
- Brass-plated terminals provide strong conductivity and corrosion resistance.
| Nominal current | 250 A |
|---|---|
| Voltage | AC/DC 690-1000 V AIEC |
| Cable cross-sectional area | 1x (35-120 mm²) / 2x (6-35 mm²) / 5x (2.5-16 mm²) / 4x (2.5-10 mm²) |
| Installation | DIN rail |
| Terminals | Brass plated |
| Body material | PA nylon |
| Safety class | V0 UL94 (flame retardant) |
| Dimensions | 49 x 95 x 49 mm |
How is this junction box mounted?
This junction box is designed for mounting directly on a standard DIN rail in electrical panels.
What cable cross-sections are compatible?
It accommodates cable cross-sections of 1x (35–120 mm²), 2x (6–35 mm²), 5x (2.5–16 mm²), and 4x (2.5–10 mm²).
