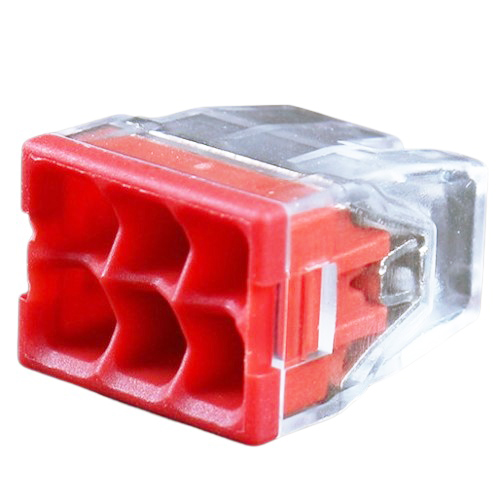

Splicing Wire Connectors 6x 0.5-2.5 mm², 24A, 450V, 100 pcs
Price: 17.80 €
| Products ID: | 171904 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000240432 |
Delivery options to:
Choose countrySplicing wire connectors designed for fast and secure connection of various conductor types in electrical installations.
Features
- Compatible with solid, fine-stranded, single-strand, and multi-strand conductors (0.5-2.5 mm²)
- 6 connection points for efficient wiring
- Transparent polycarbonate housing allows easy visual inspection
- Compact dimensions save space in junction boxes
- Rated at 450V and 24A
| Number of connection points | 6 |
|---|---|
| Conductor cross-sectional area | 0.5-2.5mm² |
| Rated voltage | 450V |
| Rated current | 24A |
| Rated surge voltage (II/2) | 4kV |
| Insulating material | Polycarbonate (PC) |
| Operating temperature | 25~+85°C |
| Dimensions | 14x16x10.5mm |
| Weight | 194g (100pcs) |
| Color | Transparent, red |
| Package quantity | 100 pcs |
| Warranty | 24 months |
What wire types are compatible with these connectors?
They support solid, fine-stranded, single-strand, and multi-strand conductors with cross-sections from 0.5 to 2.5 mm².
How many connectors are included in the package?
The set contains 100 pieces.
