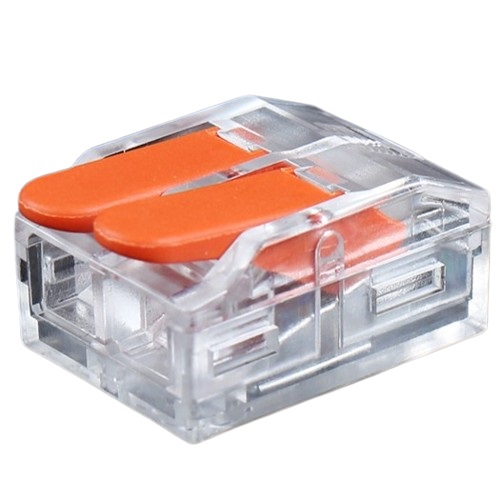

Splicing Connector with Lever, 2x 0.5-6.0mm², 41A, 450V, 20pcs
Price: 10.90 €
| Products ID: | 172273 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000240449 |
Delivery options to:
Choose countryLever wire splicing connector designed for fast and secure connection of solid, multi-strand, and fine-stranded conductors in junction boxes.
Key Features
- Accommodates conductor cross-sections from 0.5 to 6.0mm².
- Compact dimensions save space in electrical junction boxes.
- Transparent housing enables easy visual inspection of wire entry.
- Package includes 20 connectors.
| Number of connection points | 2 |
|---|---|
| Conductor cross-sectional area | 0.5-6.0mm² |
| Rated voltage | 450V |
| Rated current | 41A |
| Rated surge voltage (II/2) | 4kV |
| Insulating material | Polycarbonate (PC) |
| Operating temperature | 25~+85°C |
| Dimensions | 13.5x16x5.5mm |
| Weight | 86g (20pcs) |
| Color | Transparent / orange |
| Quantity per pack | 20 pcs |
| Warranty | 24 months |
What conductor sizes can be used with this connector?
This connector supports conductor cross-sectional areas from 0.5 to 6.0mm².
How many connectors are included in the package?
The set includes 20 connectors.
What are the electrical ratings of the connector?
The connector has a rated voltage of 450V, a rated current of 41A, and a rated surge voltage of 4kV.
