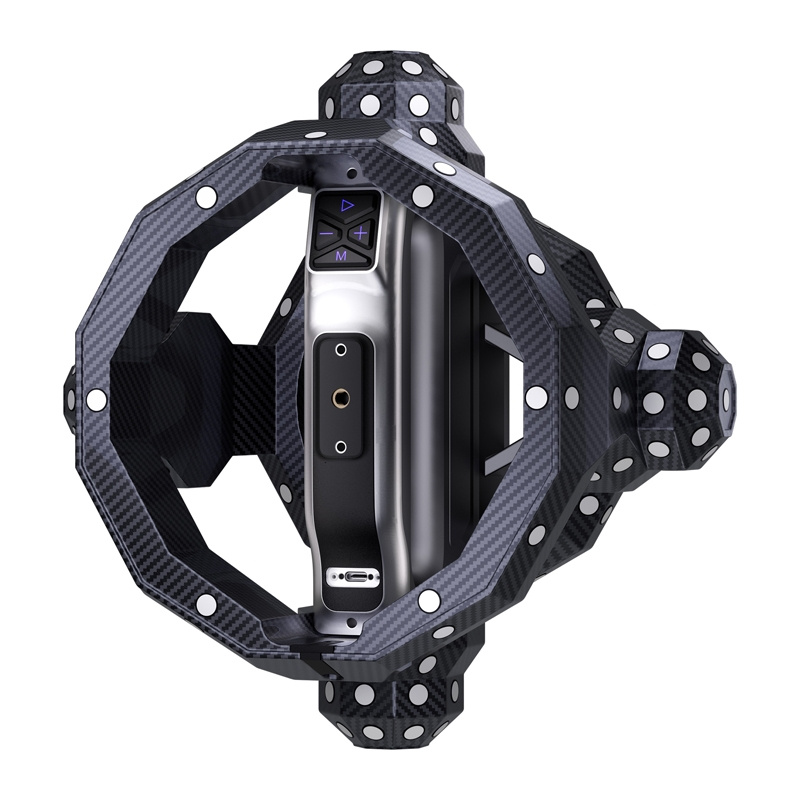

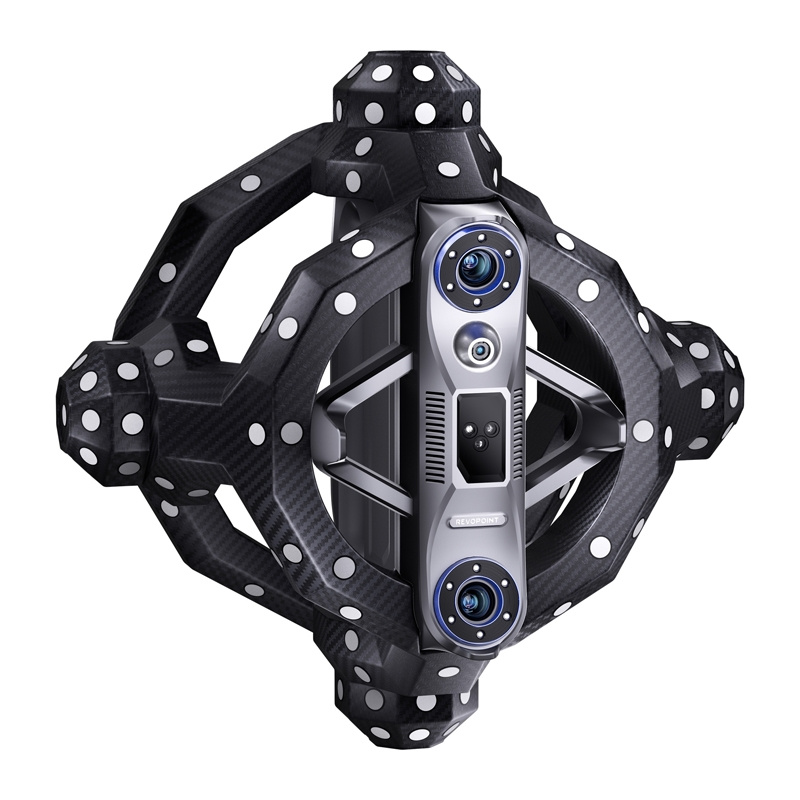

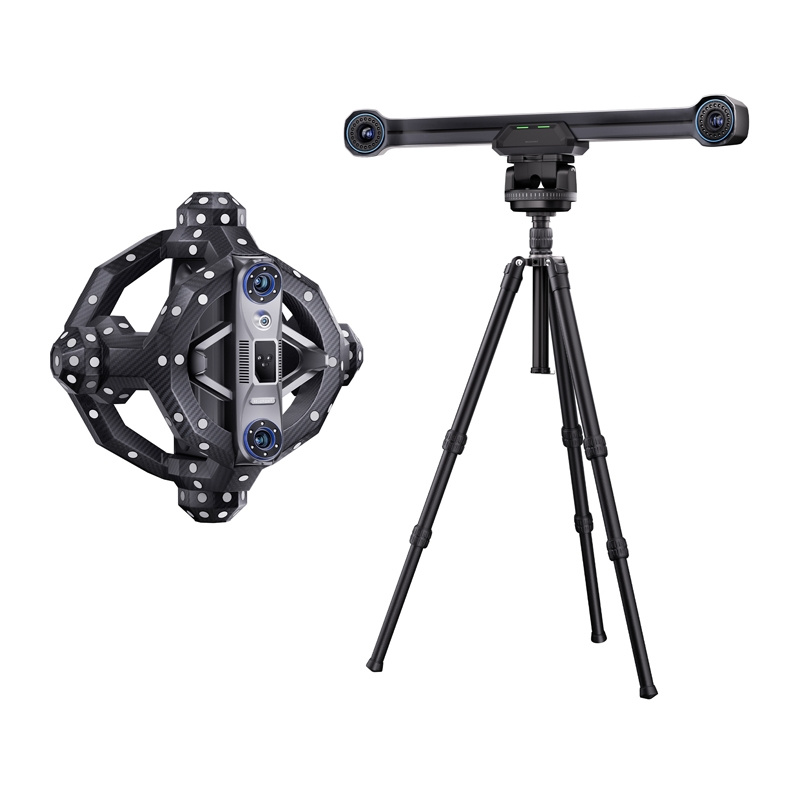

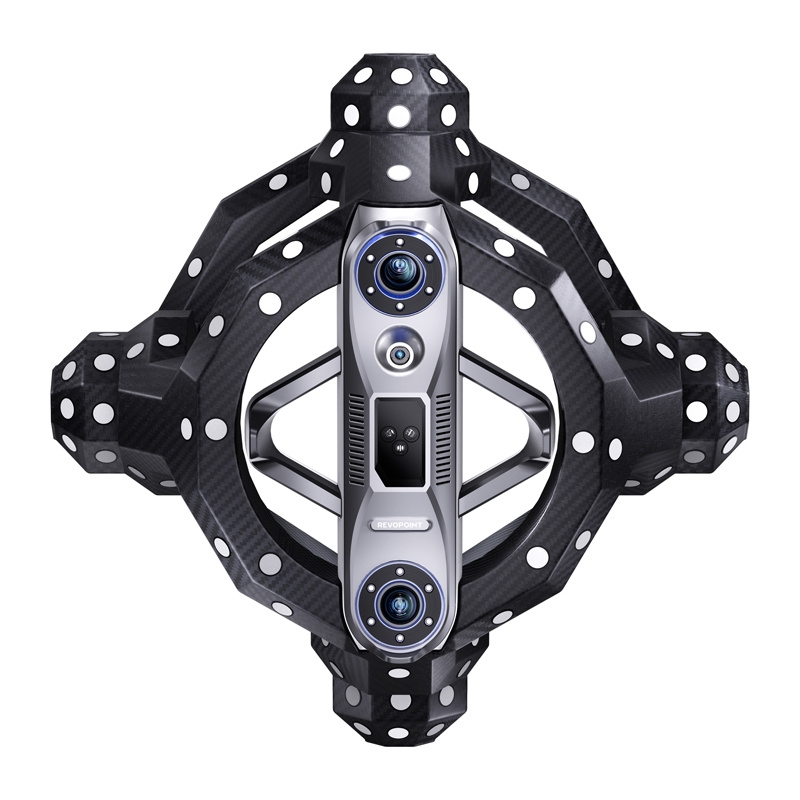

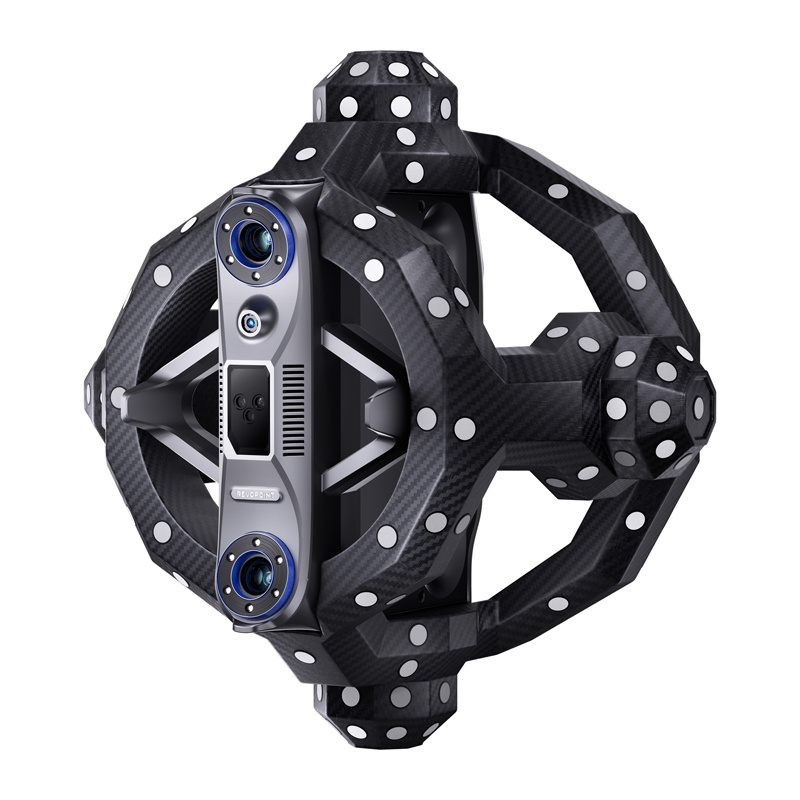

Revopoint Trackit Optical 3D Scanner

Revopoint Trackit Optical 3D Scanner — image 3

Revopoint Trackit Optical 3D Scanner — image 4

Revopoint Trackit Optical 3D Scanner — image 5

Price: 4926.50 €

Products ID:	175612
Manufactured by:	Revopoint
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6975577881212

Delivery options to:

Choose country

The Revopoint Trackit is an optical 3D scanning system combining a 0.02 mm accuracy scanner with an optical space tracker for fast, marker-free scanning.

Key Features

Single-frame accuracy of 0.02 mm and point distance down to 0.05 mm
Blue laser light source with 30 lines plus 1 single line
Scanning speed of up to 1,500,000 points per second
Supports object sizes ranging from 0.01 m to 6 m
Dual-axis gimbal system for automatic calibration
Exports directly to PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX formats

Manufacturer	Revopoint
Model	TRACKIT
Single frame accuracy	0.02 mm
Distance between points	up to 0.05 mm
Scanning speed	up to 1,500,000 points/second
Light source	30 blue laser lines + 1 single blue laser line
Scanner working range	200 - 400 mm
Object size range	0.01 - 6 m
Tracker working range	1500 - 4000 mm
Tracking volume	11 m³
Scanner weight	1.2 kg
Tracker weight	1.8 kg
Scanner dimensions	295 × 295 × 205 mm
Tracker dimensions	686 × 115 × 111 mm
Operating temperature	0 to 40 °C
Supported output formats	PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Material	Carbon fiber frame, polycarbonate housing

What object sizes can be scanned with Revopoint Trackit?

The Revopoint Trackit system supports objects ranging from 0.01 m (10 mm) up to 6 m in size.

Which export file formats are supported?

Data can be exported in PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX formats.

What are the recommended PC hardware requirements?

The recommended setup includes 64-bit Windows 10/11, a 12th-Gen Intel Core i9 or newer, 64 GB RAM, NVIDIA RTX 4060 GPU with 8 GB VRAM, and a USB 3.0 or later port.
