Revopoint Reference Block Set Marker Kit for 3D Scanners
Price: 251.00 €
| Products ID: | 176570 |
|---|---|
| Manufactured by: | Revopoint |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6975577880918 |
Delivery options to:
Choose country
The Revopoint Reference Block Set is an accessory kit designed to improve tracking stability and alignment accuracy during 3D scanning, especially on smooth or featureless surfaces.
Key Features
- Multiple marker shapes: spherical, dome, pyramid, and linear strips.
- Integrated 8 mm diameter magnets for secure placement on metal surfaces.
- 500 self-adhesive markers (6 mm inner diameter) for high-density point coverage.
- Constructed from lightweight and durable PP plastic.
- Compatible with Revopoint POP, RANGE, INSPIRE, MIRACO, and MetroX series scanners.
| Manufacturer | Revopoint |
|---|---|
| Model | Marker Block Kit |
| Material | PP plastic |
| Ball Marker Diameter | 30 mm |
| Ball Marker Weight | 15 g / pc. |
| Dome Marker Dimensions | 41 mm (diameter) × 22 mm (height) |
| Dome Marker Weight | 10 g / pc. |
| Pyramid Marker Dimensions | 67 mm (base) × 55 mm (height) |
| Pyramid Marker Weight | 40 g / pc. |
| Magnet Diameter (in markers) | 8 mm |
| Bar Marker Dimensions | 12 × 12 × 205 mm |
| Bar Marker Weight | 45 g / pc. |
| Self-adhesive Markers Inner Diameter | 6 mm |
| Self-adhesive Markers Outer Diameter | 10 mm |
| Compatibility | Revopoint POP, POP 2, POP 3, POP 3 Plus, RANGE, RANGE 2, INSPIRE, INSPIRE 2, MIRACO, MIRACO Pro, MIRACO Plus, MetroX, MetroX Pro, MetroY, MetroY Pro, MetroY Ultra, Trackit |
What is included in the Revopoint Reference Block Set?

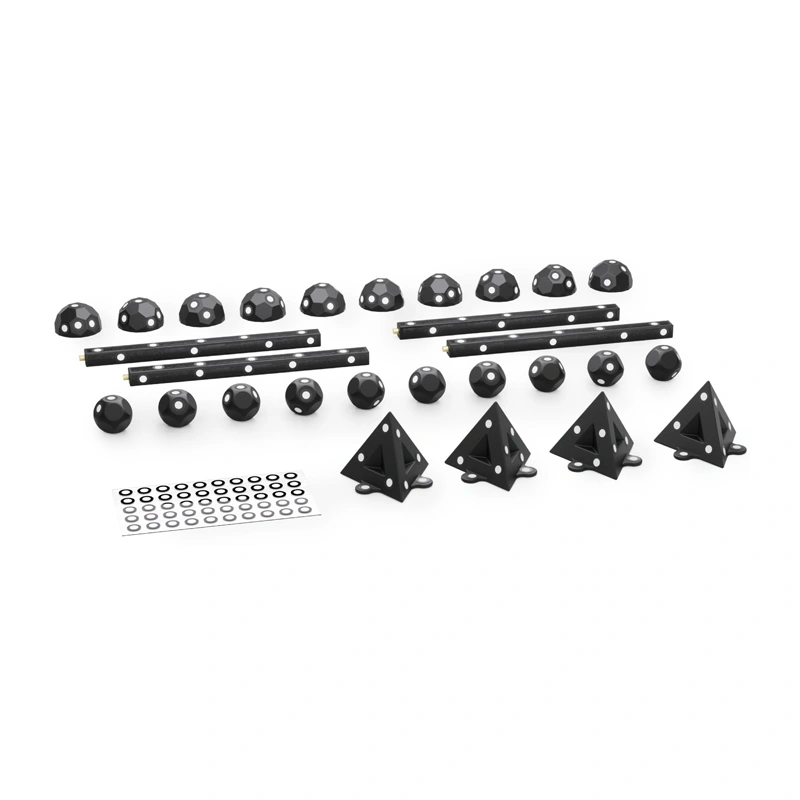

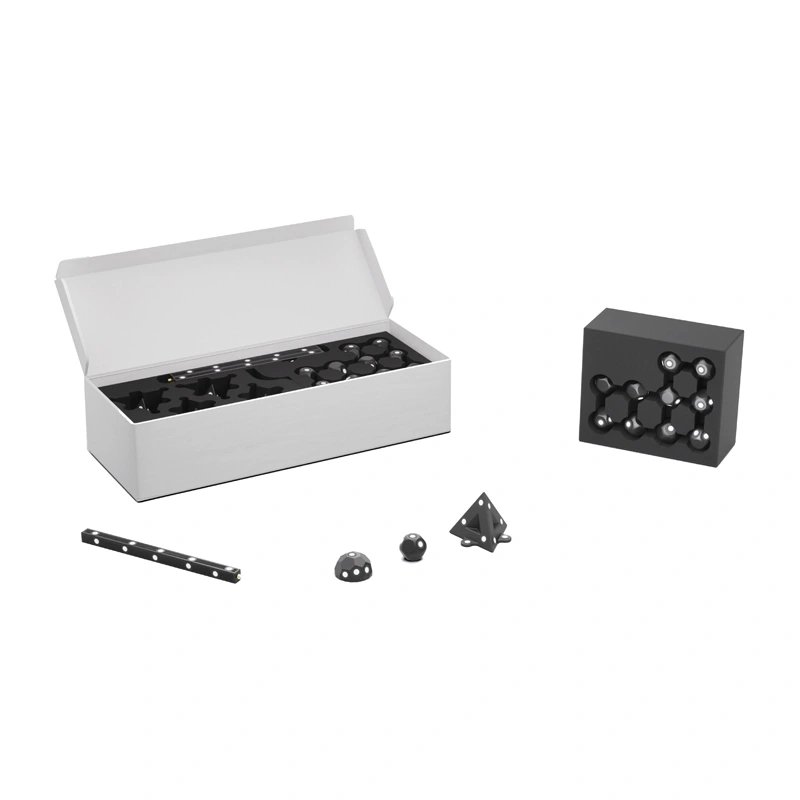

The set includes 10 magnetic spherical markers, 10 magnetic dome markers, 4 magnetic pyramid markers, 4 marker strips (205 mm), and 500 self-adhesive markers (6 mm).
How are the markers mounted on surfaces?
The spherical, dome, and pyramid markers feature built-in 8 mm magnets for attachment to metal surfaces. Self-adhesive markers are also included for point placement.
Which 3D scanners are compatible with this set?
The kit is compatible with Revopoint 3D scanners, including POP, POP 2, POP 3, RANGE, RANGE 2, INSPIRE, MIRACO, MIRACO Pro, and MetroX series.
