Revopoint Miraco Pro 3D Scanner

Revopoint Miraco Pro 3D Scanner — image 3

Revopoint Miraco Pro 3D Scanner — image 4

Revopoint Miraco Pro 3D Scanner — image 5

Price: 2129.10 €

Products ID:	175607
Manufactured by:	Revopoint
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6975577880321

Delivery options to:

Choose country

The Revopoint Miraco Pro is an ultralight standalone wireless 3D scanner designed to digitize both fine details and large objects without relying on a computer.

Key Features

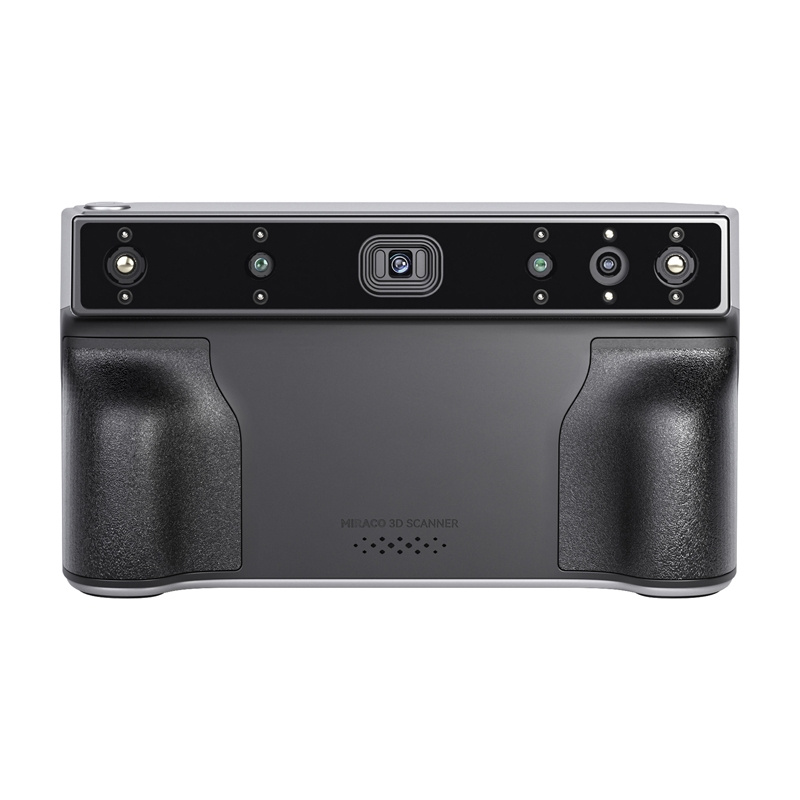

Quad depth camera system delivering single-frame precision up to 0.02 mm
48MP RGB camera for photorealistic color textures

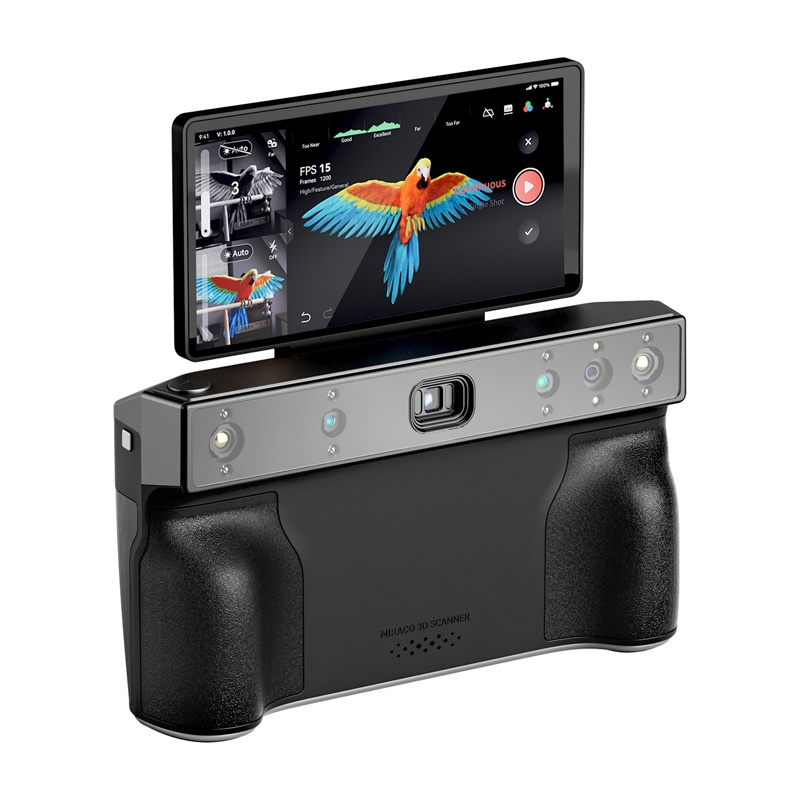

6-inch 2K AMOLED rotatable screen with 180° angle adjustment
Built-in 5,000mAh battery providing up to 2 hours of continuous operation
32GB of RAM and 256GB internal storage for on-device processing
Scanning speed of up to 20 fps with Wi-Fi 6 connectivity

Manufacturer	Revopoint
Model	Miraco Pro
Technology	Quad-camera infrared structured light system
Single-frame precision	Up to 0.02 mm
Single-frame accuracy	Up to 0.04 mm
Photometric length accuracy	0.02 mm + 0.05 mm x L (m)
Working distance	100 - 1000 mm
Minimum scan volume	10 x 10 x 10 mm
Maximum scan volume	4 x 4 x 4 m
Scan speed	Up to 20 fps
Camera resolution	Depth: 2MP, RGB: 48MP
CPU and GPU	8-core ARM A76 2.4 GHz, Mali G52 GPU
Memory and storage	32 GB RAM + 256 GB

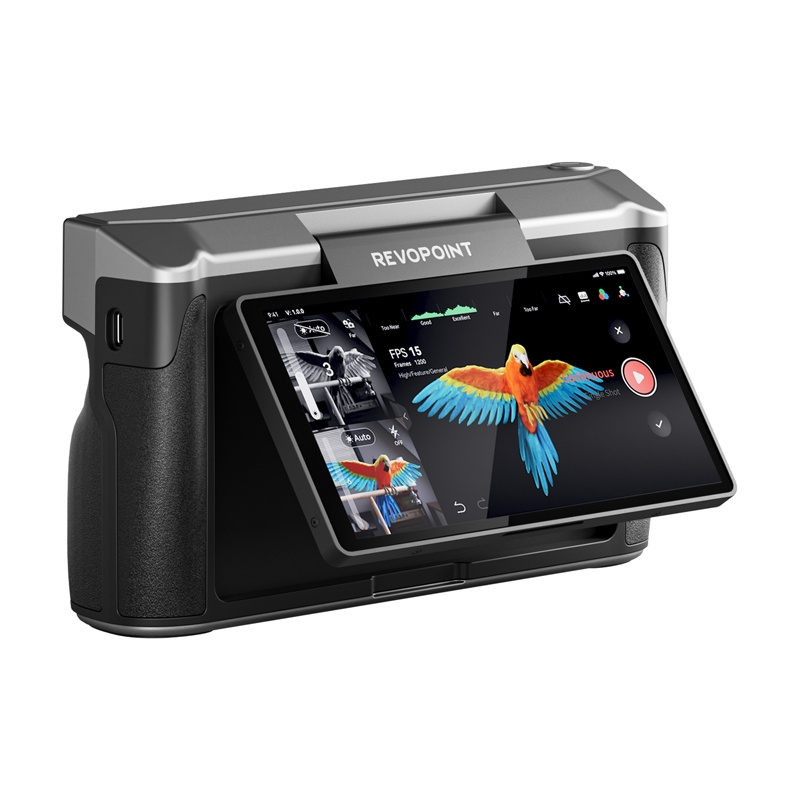

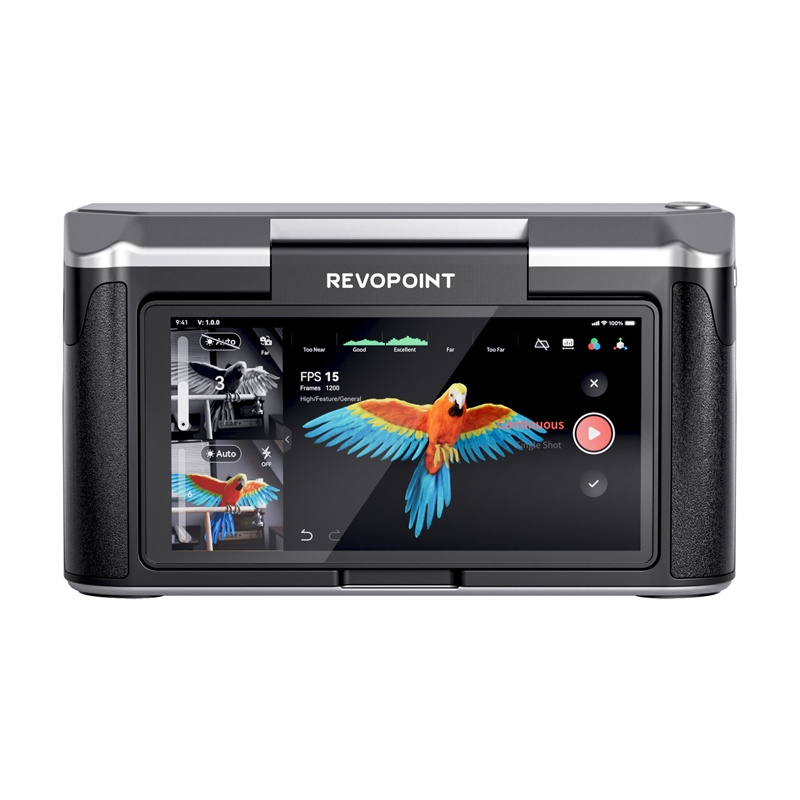

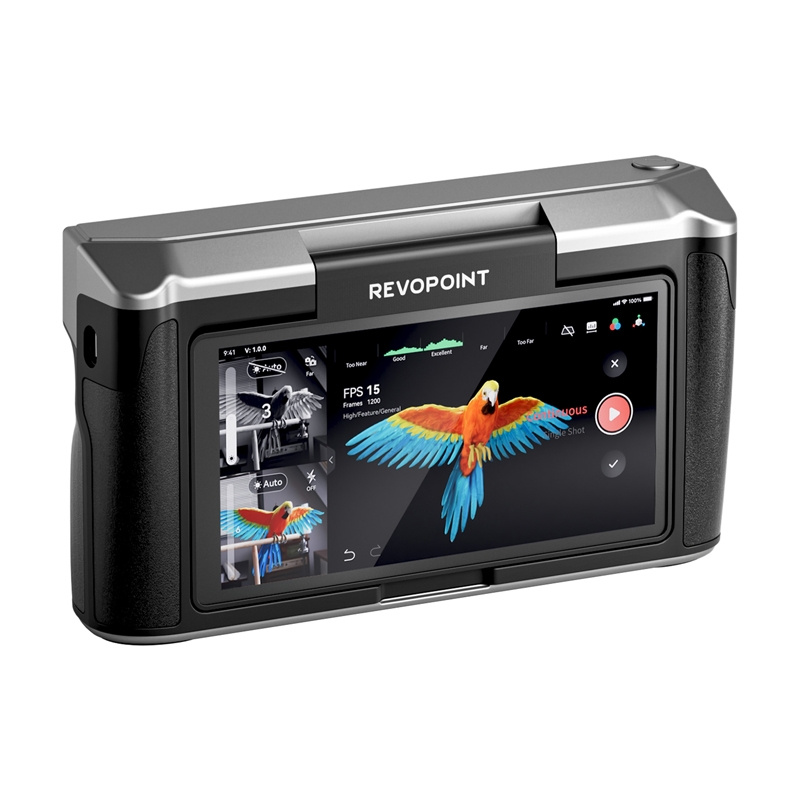

Display	6-inch 2K AMOLED with 180° adjustment
Battery capacity	5000 mAh
Ingress protection	IP45
Weight	750 g

Can the scanner be used without a computer?

Yes, the Miraco Pro features an integrated processor, 32GB RAM, 256GB storage, and a 6-inch 2K AMOLED screen for standalone scanning and model processing.

What is the working distance of the scanner?

The working distance ranges from 100 mm to 1000 mm.

What is the battery life?

The integrated 5,000mAh battery provides up to two hours of continuous use and supports 50W fast charging.
