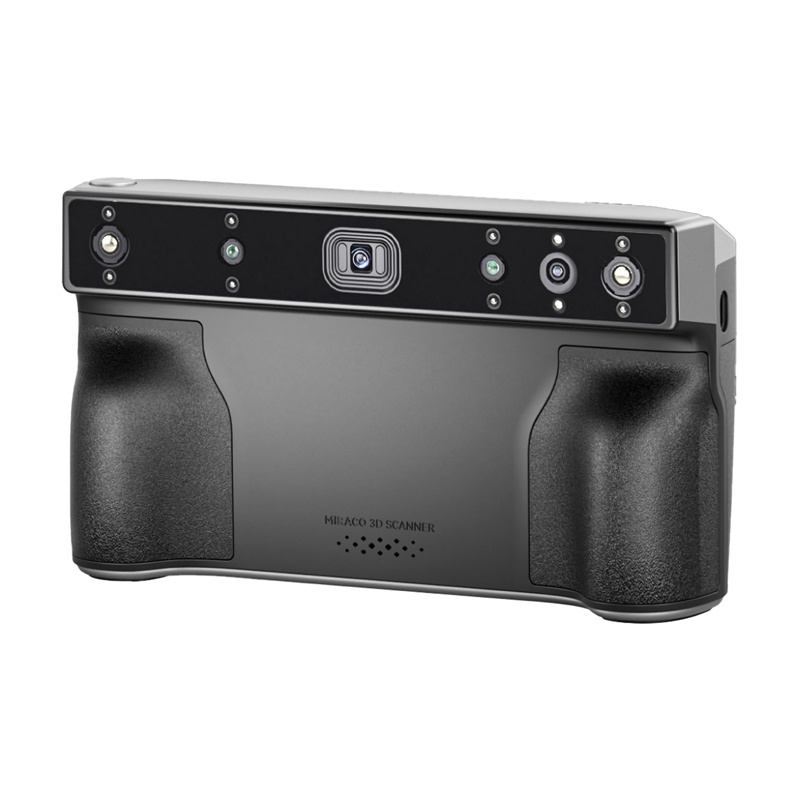

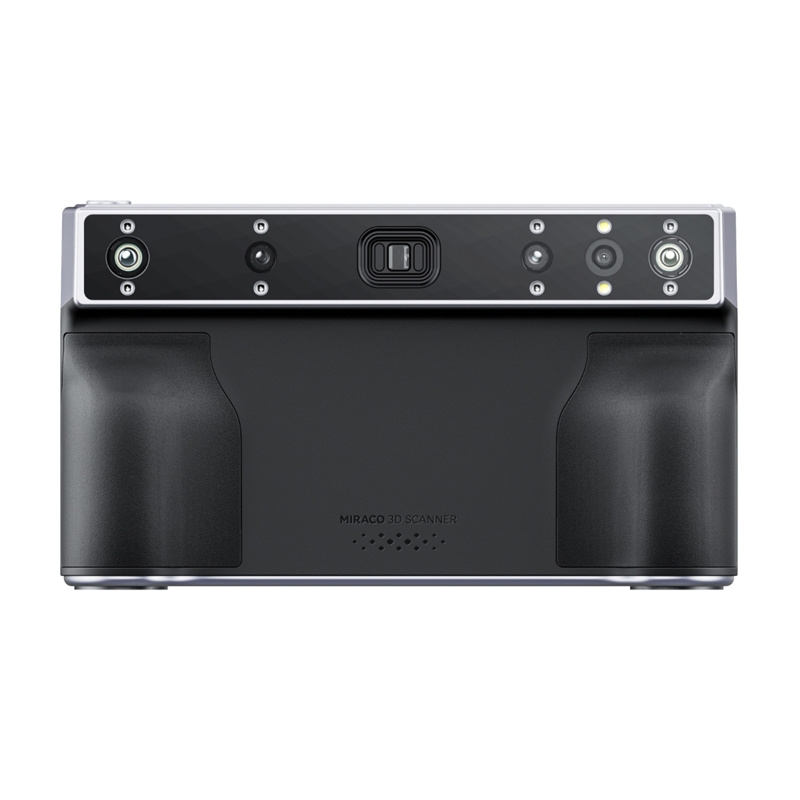

Revopoint Miraco Plus 3D Scanner
2516.00 €
Revopoint
Products ID: 175608
In supplier warehouse
Available to order: 10+ pcs.
Delivery Time 5–12 business days
Delivery options to:
Choose countryThe Revopoint Miraco Plus is a standalone 3D scanner combining photogrammetric metrology with versatile capture capabilities for both fine details and large objects.
Key Features
- Capture speeds up to 20 fps with 2x optical magnification
- 48MP RGB camera providing high-resolution color texture capture
- Integrated 9-axis IMU stabilization for handheld scanning

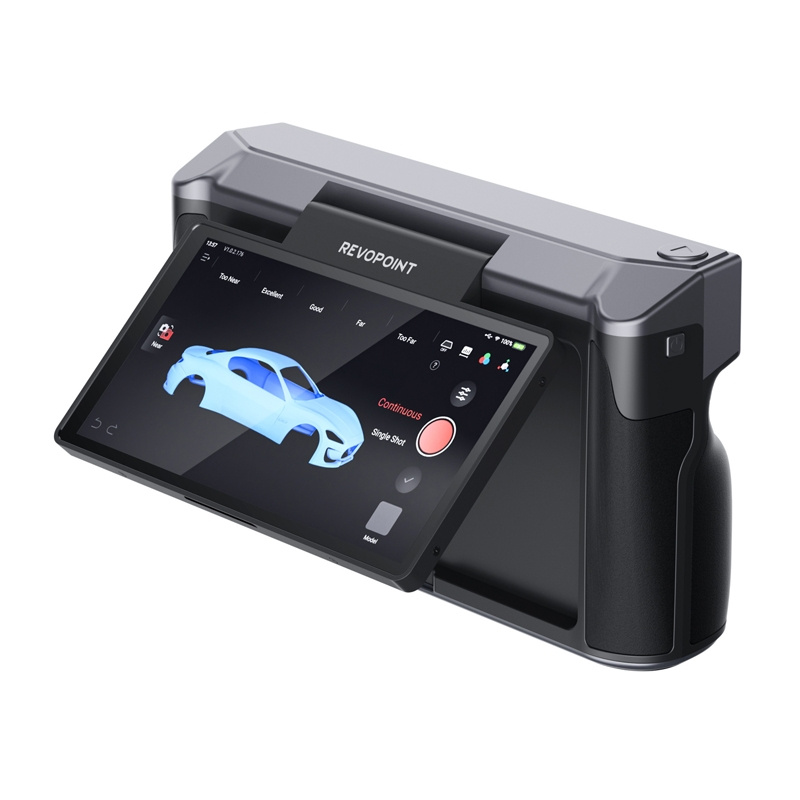

- 180° tiltable 2K AMOLED screen for real-time monitoring
- Single-frame accuracy of up to 0.04 mm
- All-in-one four-step workflow from preparation to file export
| Manufacturer | Revopoint |
|---|---|
| Model | Miraco Plus |
| Technology | Quad-camera infrared structured light with optical zoom and photogrammetric metrology |
| Single-frame precision | 0.02 mm |
| Single-frame accuracy | 0.04 mm |
| Photogrammetric length accuracy | 0.02 mm + 0.05 mm x L (m) |
| Point distance | 0.05 mm |
| Operating range | 100 - 1000 mm |
| Minimum scan volume | 10 x 10 x 10 mm |
| Maximum scan volume | 4 × 4 × 4 m |
| Scan speed | 20 fps |
| Camera resolution | Depth camera: 2MP, RGB camera: 48MP |
| CPU | 8-core ARM A76, 2.4 GHz, Mali G52 GPU |
| 3D light source | Class 1 infrared light |
| RAM and internal storage | 32 GB + 256 GB |
| Sensors | 9-axis IMU |
| EAN | 6975577880819 |
|---|
What is the scan volume range of the Revopoint Miraco Plus?
The scanner supports object sizes from a minimum scan volume of 10 x 10 x 10 mm up to a maximum volume of 4 × 4 × 4 m.
What items are included in the package?
The set includes the Miraco Plus scanner, measuring tapes, magnetic and adhesive markers, tripod, turntable, bust, calibration plates, 65W charger, adapters, wrist strap, carrying case, and manual.
