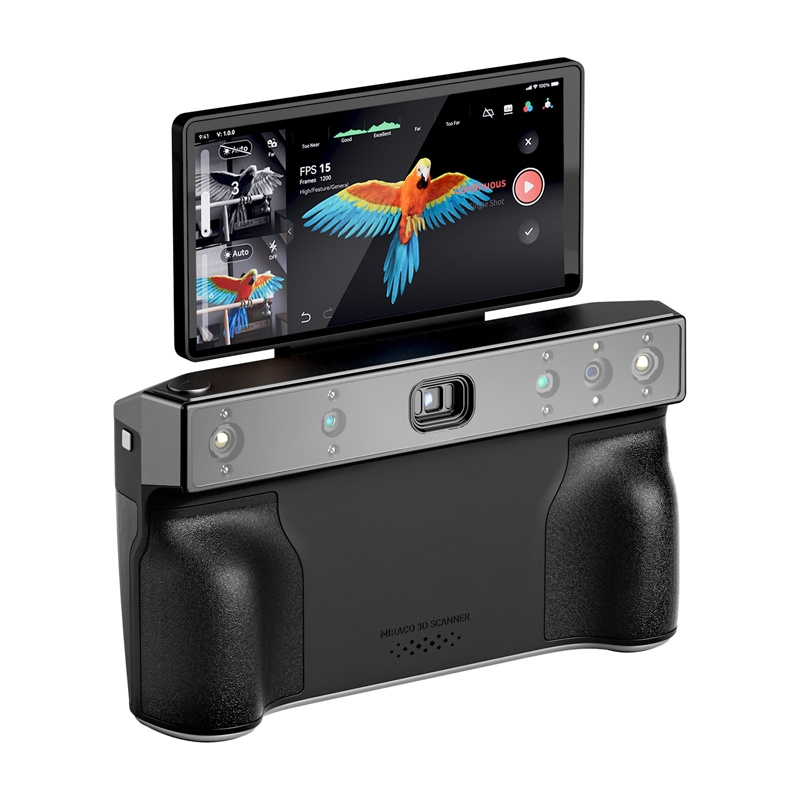

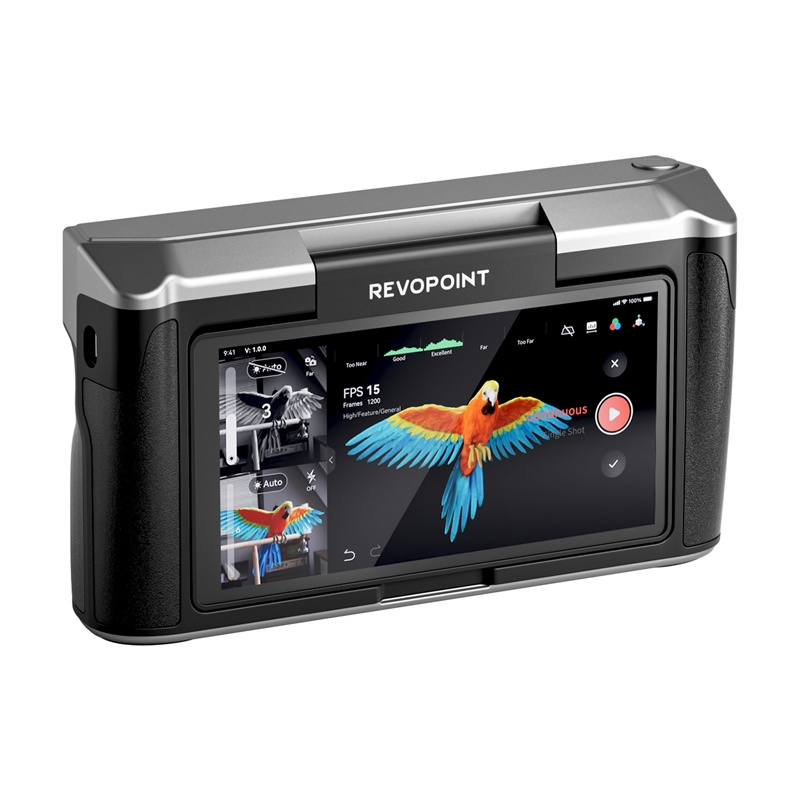

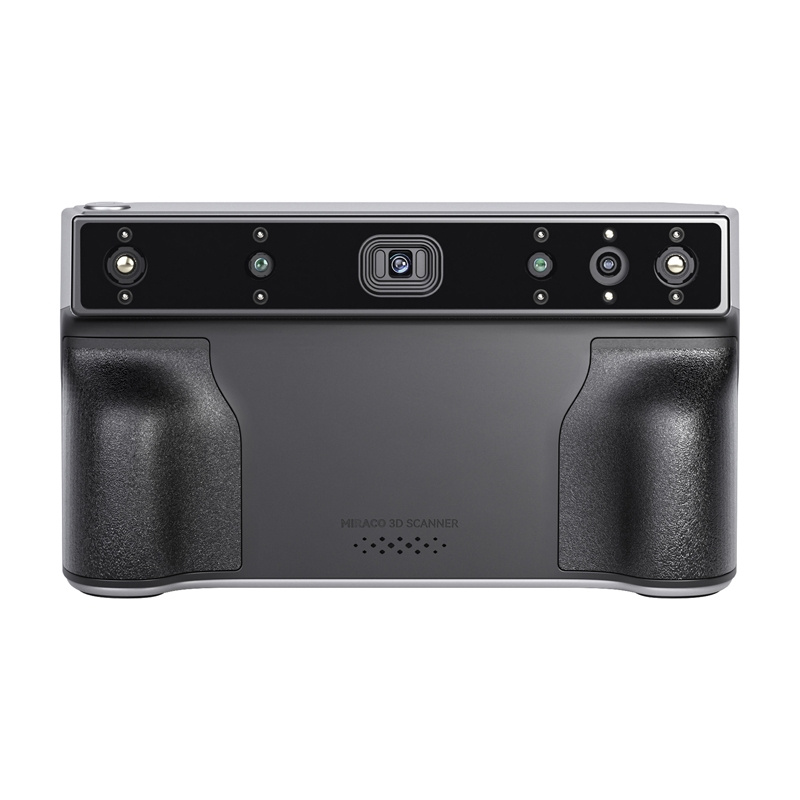

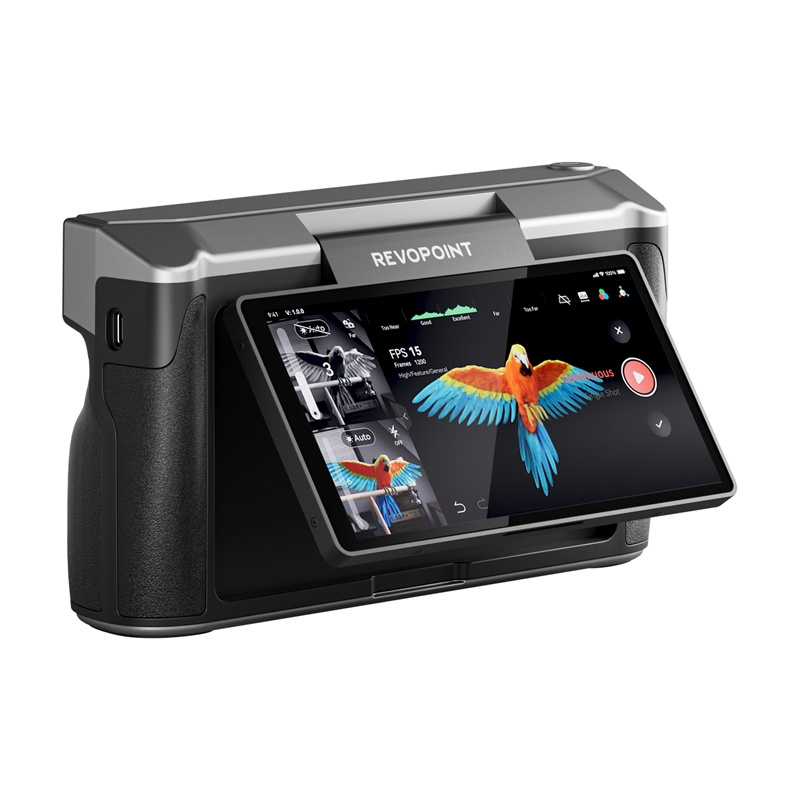

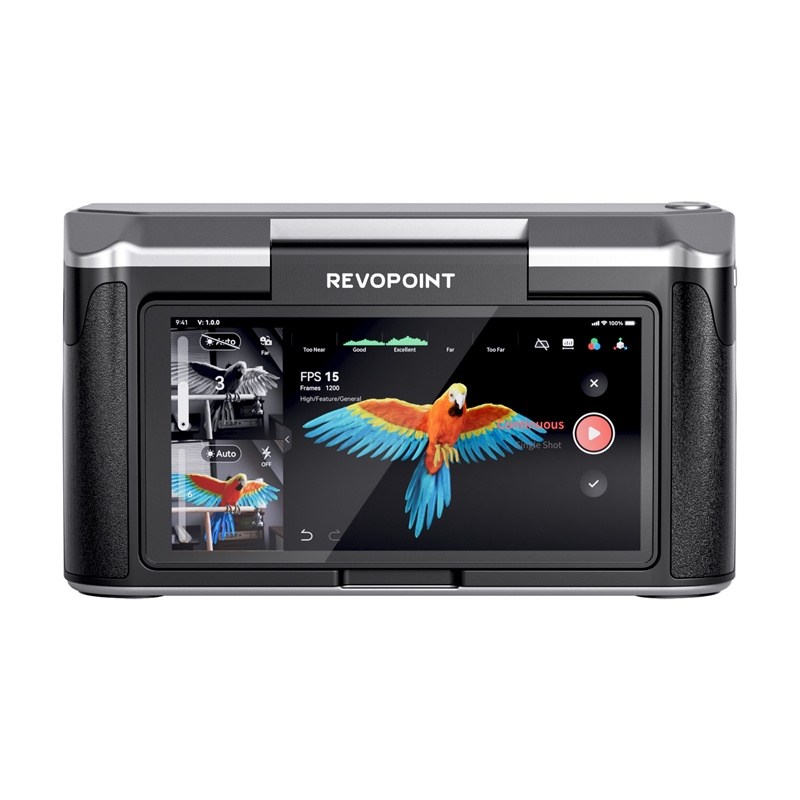

Revopoint Miraco 3D Scanner
1674.30 €
Revopoint
Products ID: 175606
In supplier warehouse
Available to order: 7 pcs.
Delivery Time 5–12 business days
Delivery options to:
Choose countryThe Revopoint Miraco is a standalone wireless 3D scanner equipped with a 6-inch 2K AMOLED screen, 48MP RGB camera, and an integrated quad-camera depth system for computer-free scanning of small and large objects.
Key Features
- Quad Depth Camera System: seamlessly captures fine details down to 0.02 mm and larger objects up to 0.2 mm accuracy.
- Standalone Performance: powered by an 8-core 2.8GHz CPU, 16GB RAM, and 256GB eMMC storage to process point clouds on-device.
- Vibrant Color Capture: 48MP RGB camera delivers photorealistic color and texture reproduction.
- Adjustable AMOLED Screen: 6-inch 2K display tilts up to 180° for flexible scanning and reviewing angles.
- Wireless & Portable: weighs 750g with a 5000mAh battery offering up to 2 hours of continuous runtime and 50W fast charging.
- Export Compatibility: outputs industry-standard PLY, OBJ, and STL formats with support for Wi-Fi 6 and USB Type-C.
| Manufacturer | Revopoint |
|---|---|
| Model | Miraco |
| Technology | Quad infrared camera, structured light |
| Single-frame accuracy | Up to 0.05 mm |
| Scanning speed | Up to 15 frames per second |
| Working distance | 100 ~ 1000 mm |
| Minimum scan volume | 10 mm x 10 mm x 10 mm |
| RGB camera | 48 MP |
| Display | 2K 6” AMOLED |
| CPU | 8-core ARM A76, 2.8GHz Mali G52 GPU |
| RAM | 16 GB DDR4 |
| Storage | 256 GB eMMC |
| Battery capacity | 5000 mAh |
| Charging power | 50 W |
| Sensors | 9-axis IMU |
| Protection rating | IP45 |
| Connectivity | USB Type-C 3.1, Wi-Fi 6 |
| Output formats | PLY, OBJ, STL |
| Weight | 750 g |
| EAN | 6975577880277 |
|---|
Is a computer required to use the Revopoint Miraco?
No, the scanner operates fully standalone with an integrated octa-core processor, 16GB RAM, 256GB storage, and a built-in 6-inch AMOLED 2K display.
What 3D file formats does the Miraco scanner output?
The scanner exports 3D models in PLY, OBJ, and STL formats, making them directly usable for 3D printing and CAD software.
How long does the battery last on a full charge?
The built-in 5000mAh battery provides up to 2 hours of continuous scanning and recharges to 80% in approximately 35 minutes using 50W fast charging.
