Creality RaptorX 3D Scanner, Wireless
Creality
| Products ID: | 186442 |
|---|---|
| Manufactured by: | Creality |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6971636405283 |
Delivery options to:
Choose country

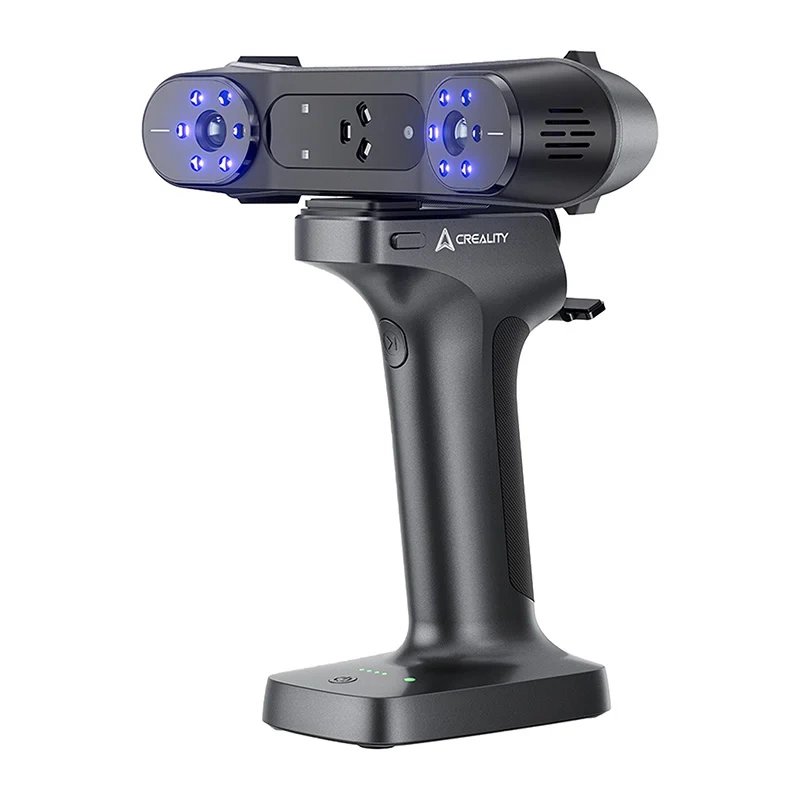

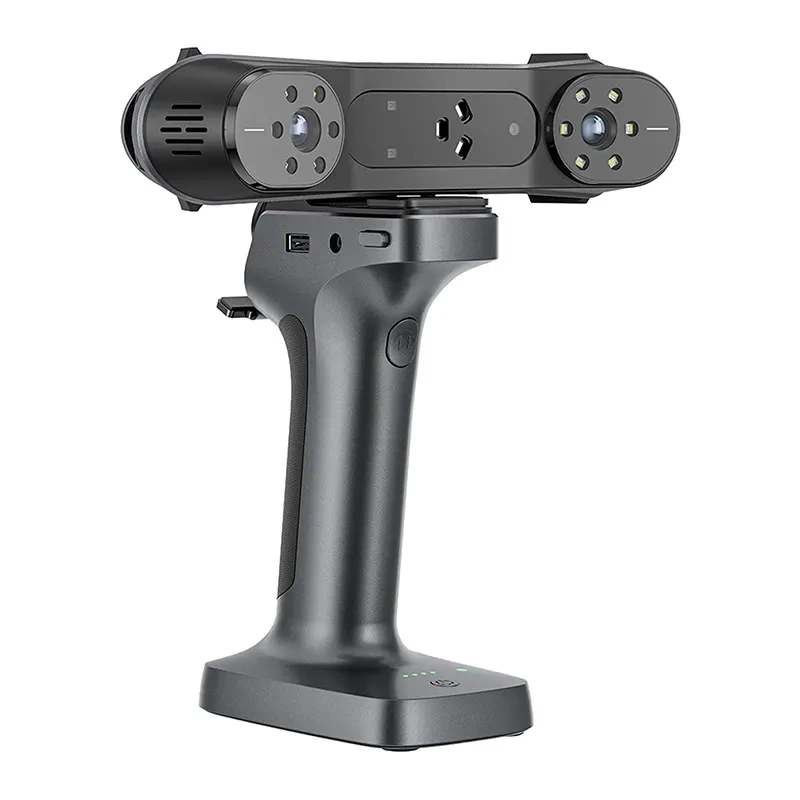

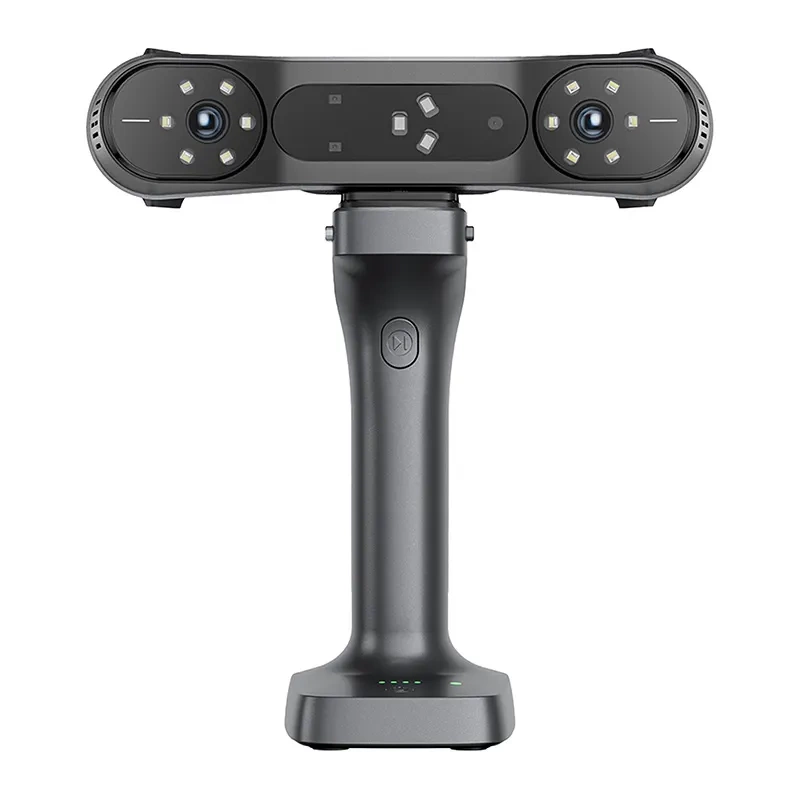

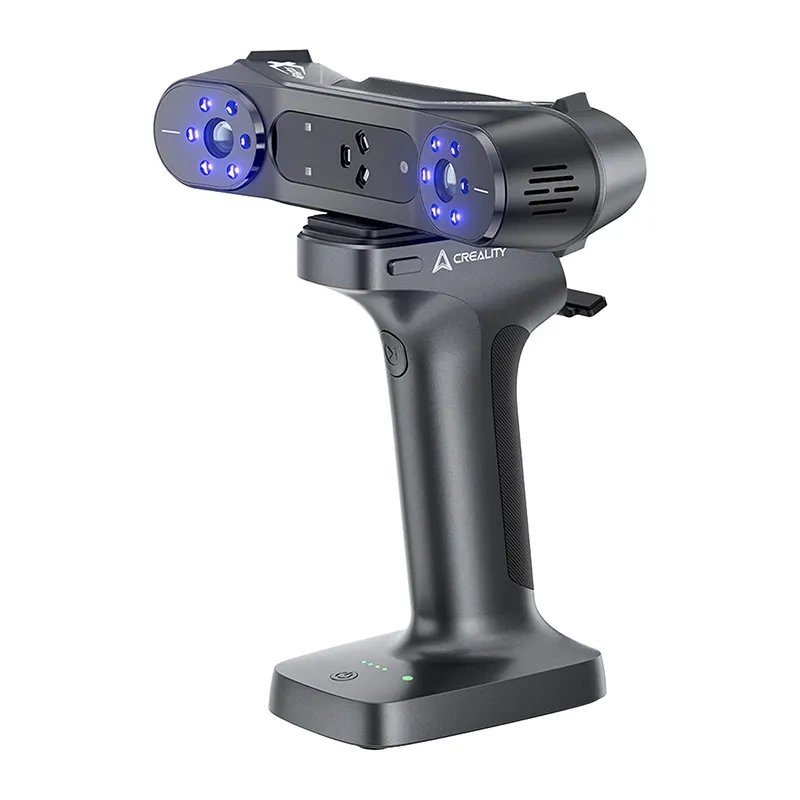

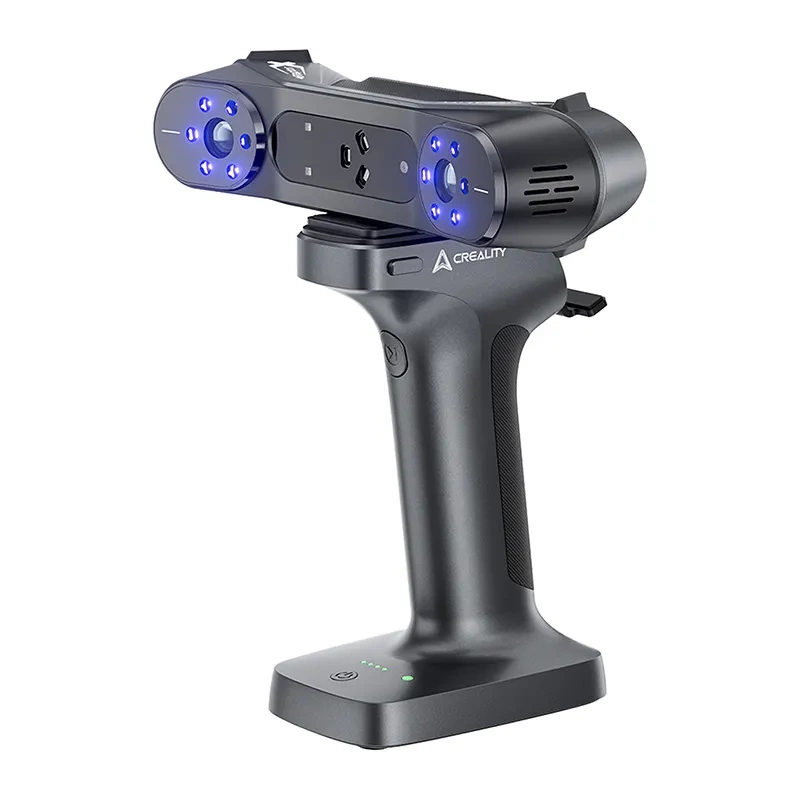

The Creality RaptorX is a versatile wireless 3D scanner engineered for professional applications, combining blue laser line scanning and NIR structured light technology.
High Precision and Flexible Scanning Modes
Delivering accuracy up to 0.02 mm and capture speeds up to 60 fps, the RaptorX handles objects from 5 mm³ up to 4 m³. It supports diverse scanning scenarios, from miniature technical parts to full human body scans.
- Dual Light Source Technology: 7 parallel blue laser lines, 34 blue laser lines, and markerless NIR structured light modes.
- Material Adaptability: Scans black and metallic surfaces directly without requiring antireflective sprays or powders.
- Full-Color Reproduction: 24-bit color palette support coupled with a 1920 x 1200 3D imaging camera.
Wireless Portability and Software Integration

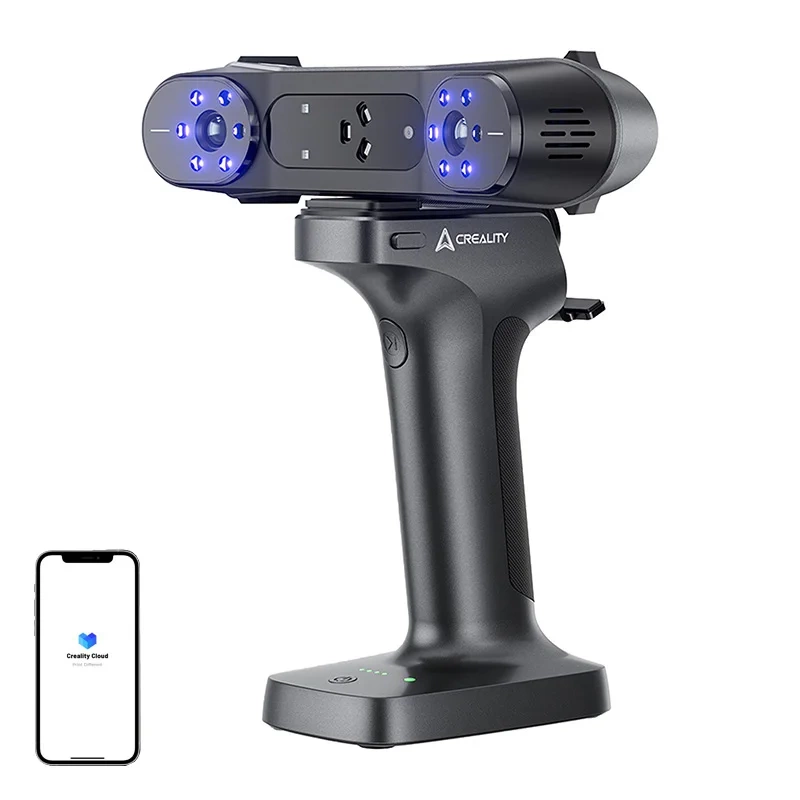

Weighing 405 g, the scanner pairs with a dedicated holder featuring dual 5000 mAh lithium batteries for approximately 4 hours of wireless operation. It connects seamlessly with CrealityScan software, exporting standard OBJ, STL, and PLY formats for direct use in SolidWorks, Maya, and Blender.
| Holder manufacturer | Creality |
|---|---|
| Holder compatibility | CR-Scan Otter, CR-Scan Raptor, Creality RaptorX |
| Holder WiFi protocols | WiFi6, backward compatibility |
| Frequency band | 5 GHz |
| Transfer speed | Parallel line mode: ≤50 fps; infrared mode: ≤30 fps |
| Battery type | Lithium |
| Battery capacity | 5000 mAh (2 pieces) |
| Fast charging power | 30 W |
| Fast charging protocol | PD / AFC / FCP |
| Charging port | Type-C |
| Holder interface | USB-A / USB3.0 |
| Power interface | DC12V / USB5V |
| Phone holder | Magnetic |
| Power button | Mechanical |
| Scan start button | Mechanical |
| Holder dimensions | 193.7 x 119.8 x 81.7 mm |
| Holder weight | 444 g |
| Holder operating temperature range | From -10°C to 40°C |
| Holder operating humidity | 0-90%RH |
| Scanner manufacturer | Creality |
| Scanning modes | 7 blue parallel laser lines / 34 blue laser lines / NIR |
| Accuracy | Up to 0.02 mm (7 blue parallel laser lines / 34 blue laser lines); up to 0.1 mm (NIR) |
| Volume accuracy | 0.02 mm + 0.6 mm/m (7 blue parallel laser lines / 34 blue laser lines); 0.05 mm + 0.1 mm/m (NIR) |
| Scanning frequency | 420 000 measurements/s (7 blue parallel laser lines); 1 020 000 measurements/s (34 blue laser lines); 3 580 000 measurements/s (NIR) |
| 3D resolution | 0.02-2 mm (7 blue parallel laser lines / 34 blue laser lines); 0.1-2 mm (NIR) |
| Scanning speed | Up to 60 fps (7 blue parallel laser lines / 34 blue laser lines); up to 20 fps (NIR) |
| Minimum scanning volume | 5 x 5 x 5 mm (7 blue parallel laser lines / 34 blue laser lines); 150 x 150 x 150 mm (NIR) |
| Single capture range | 270 x 170 @ 300 mm (7 blue parallel laser lines); 270 x 170 @ 300 mm / 341 x 232 @ 400 mm / 397 x 290 @ 500 mm / 452 x 348 @ 600 mm 600 mm TBD (34 blue laser lines); 630 x 550 @ 1000 mm (NIR) |
| Working range | 150-400 mm (7 blue parallel laser lines); 200-600 mm (34 blue laser lines); 170-1200 mm (NIR) |
| Color mapping | yes |
| Alignment mode | Marker (7 blue parallel laser lines / 34 blue laser lines); marker / geometry / texture (NIR) |
| 3D imaging camera resolution | 1920 x 1200 |
| Additional RGB color light | 12 white LEDs |
| External scanning | Less than 50 000 lux (7 blue parallel laser lines); less than 10 000 lux (34 blue laser lines); less than 30 000 lux (NIR) |
| Marker recognition support | 12 blue LEDs |
| Laser safety (eye protection) | Class I (7 blue parallel laser lines / NIR); Class II (34 blue laser lines) |
| Button | mechanical |
| IMU support | yes |
| Output format | OBJ / STL / PLY |
| Input voltage | 12V/2A |
| Scanner interface | USB-C/USB3.0 |
| Scanner dimensions | 215 x 50 x 74 mm |
| Scanner weight | 405 g |
| Calibration plate | Precision glass calibration plate |
| Wireless scanning | yes |
| System | Windows, MacOS |
| Scanner operating temperature | -10°C to 40°C |
| Scanner working humidity | 0-90%RH |
What items are included with the Creality RaptorX?
The package includes the scanner, scanner holder, glass calibration plate, quick release, magnetic phone holder, wireless WiFi 6 USB adapter, adapter + adapter, USB 3.0 to USB-C cable, Scan Bridge cable, charging cable, reflective marking points (D6mm*40 sheets, D3mm*40 sheets), USB-C adapter, cleaning cloth, lanyard, and user manual.
Can the Creality RaptorX scan black and shiny metal surfaces?
Yes, due to its high material adaptation, the RaptorX can capture black and metallic surfaces directly without applying scanning sprays or powders.
What 3D file formats can the scanner export?
The scanner exports data in standard OBJ, STL, and PLY formats, making it compatible with design programs like SolidWorks, Maya, and Blender.
