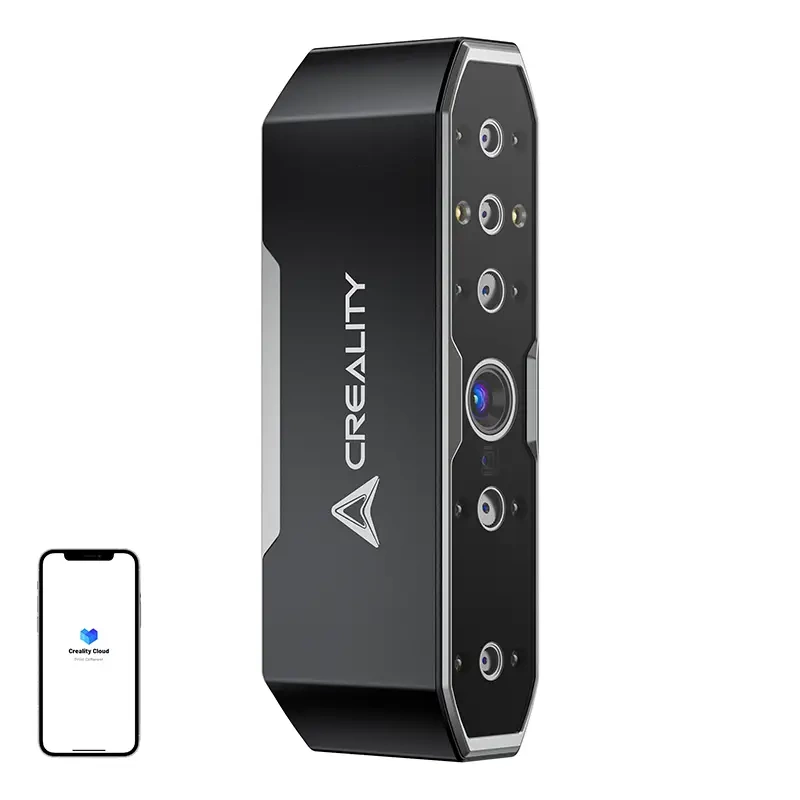

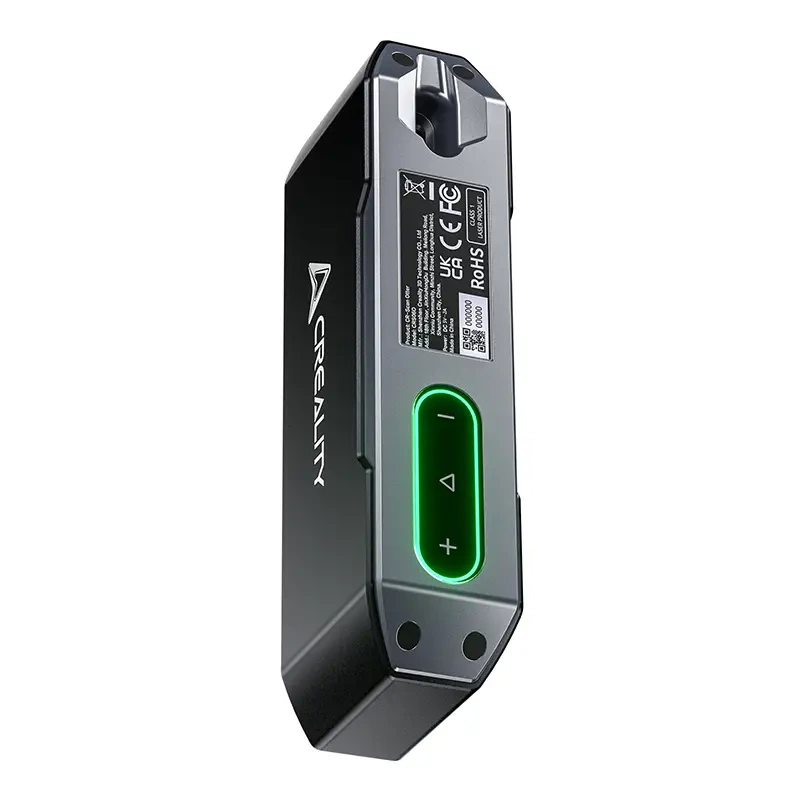

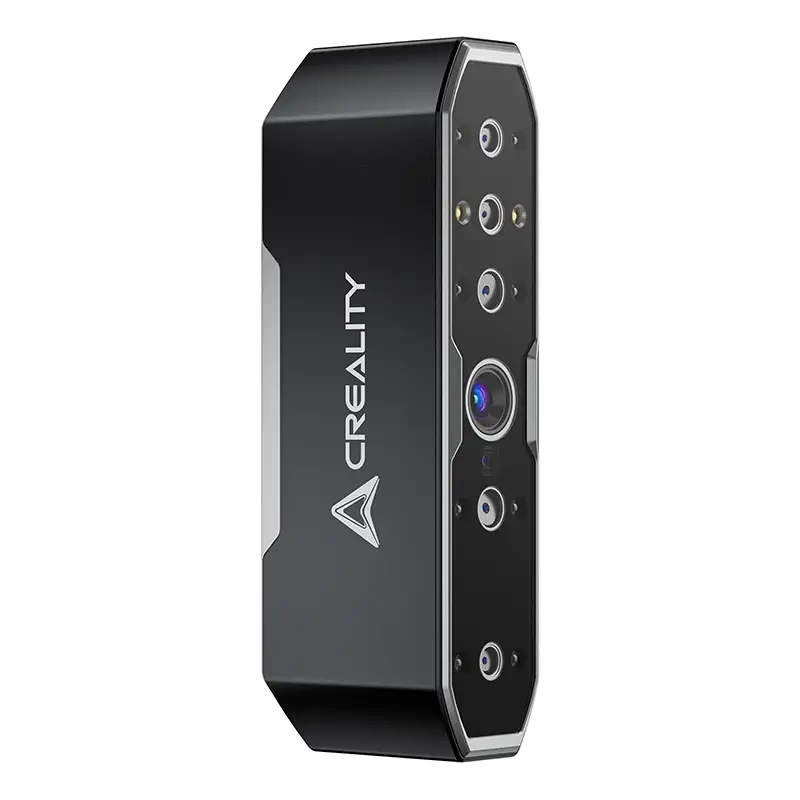

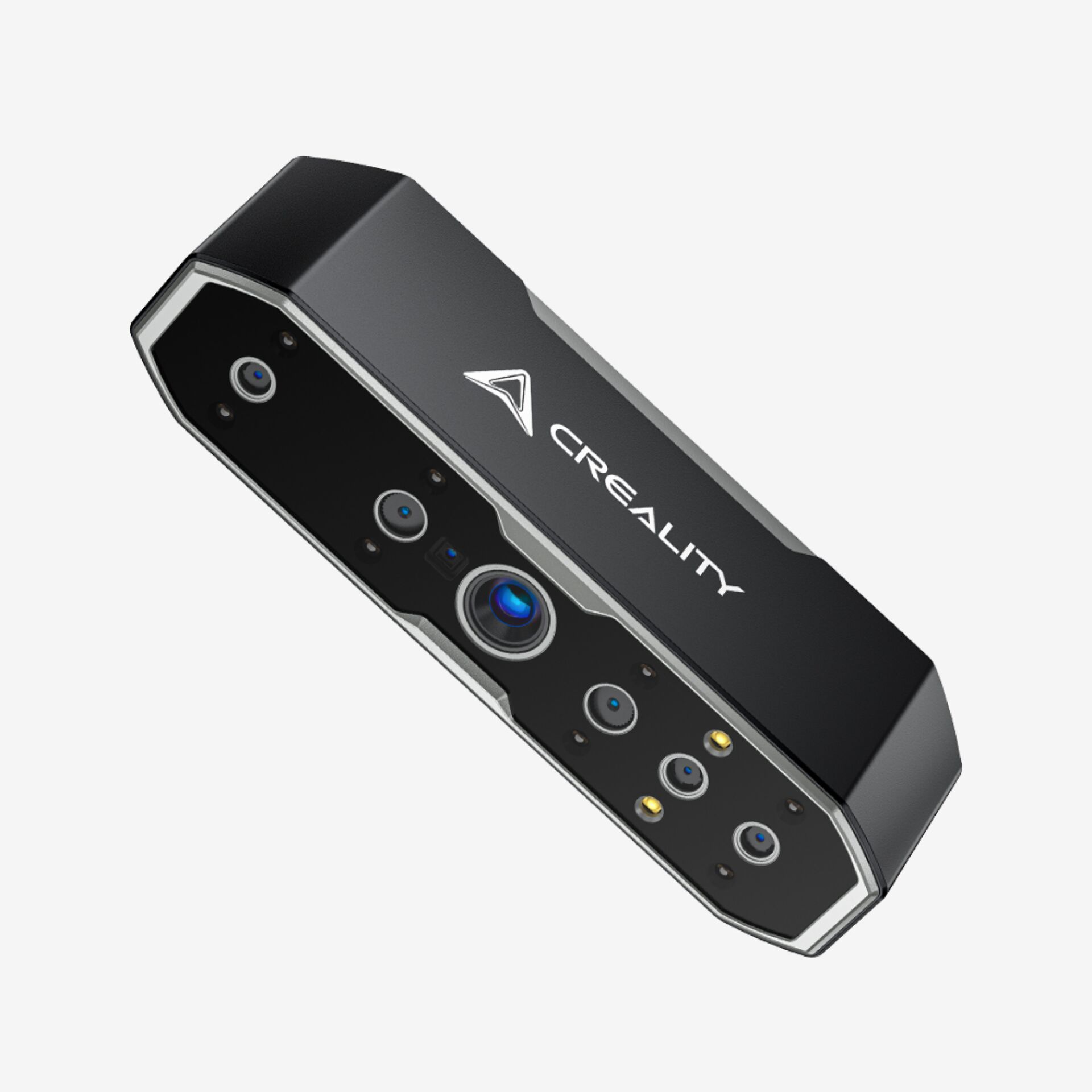

Creality CR-Scan Otter 3D Scanner

Creality CR-Scan Otter 3D Scanner — image 3

Price: 722.40 €

Products ID:	174870
Manufactured by:	Creality
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6971636400158

Delivery options to:

Choose country

The Creality CR-Scan Otter is a versatile 3D scanner engineered for accurate digitization of objects ranging in size from 10x10x10 mm to 2000x2000x2000 mm. Equipped with four stereo lenses and a 24-bit RGB camera, it captures fine details and true colors without requiring scan sprays on black or metallic surfaces.

Key Features

Four-lens optical system: dual long-focus and short-focus lens pairs capture both small details and large surfaces.
High precision: delivers up to 0.02 mm accuracy at a 60 mm distance with scanning speeds up to 20 fps.
Structured infrared light: captures authentic structures and contours smoothly.

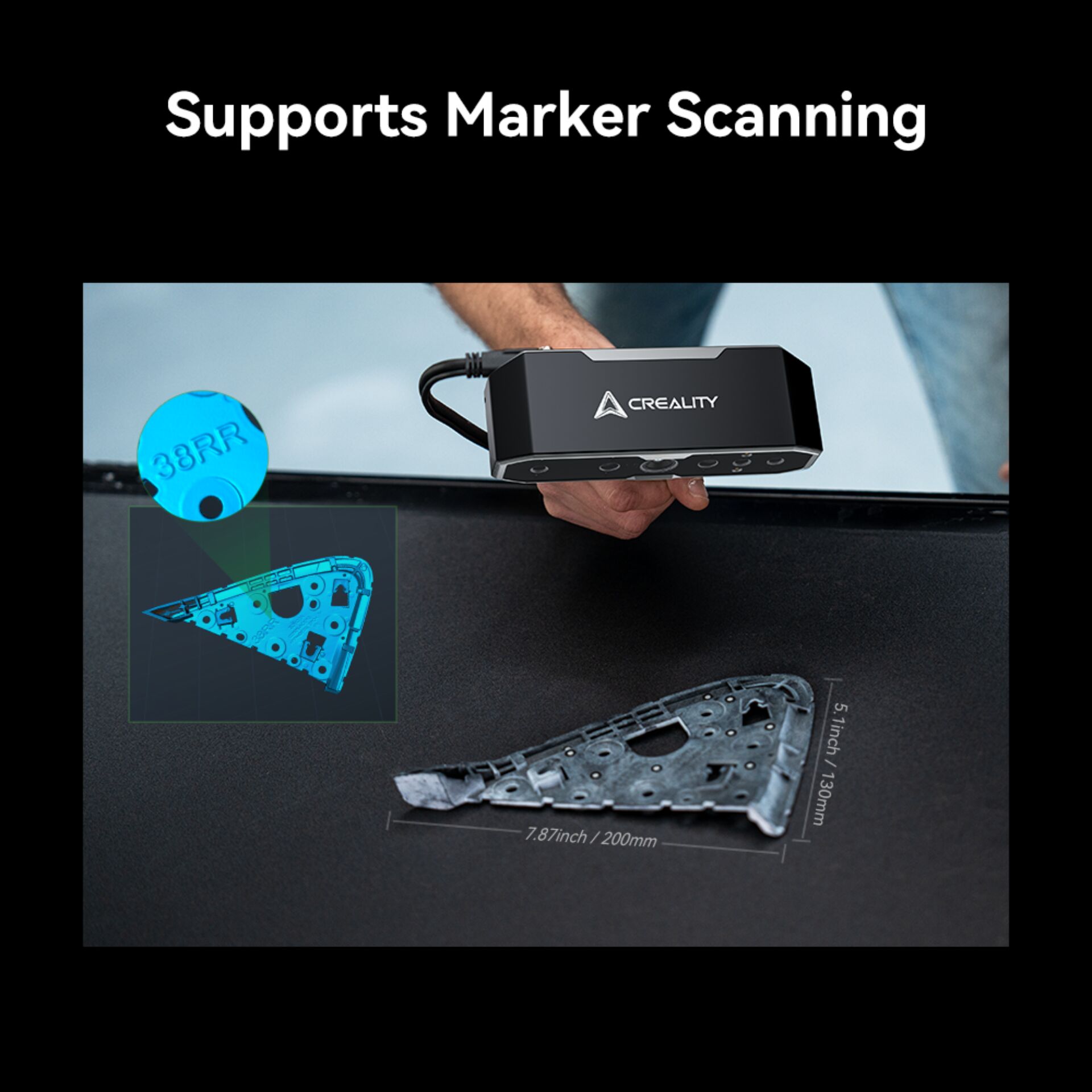

Multiple alignment modes: supports geometric, marker, and texture alignment.
Standard export formats: outputs models directly to OBJ, STL, and PLY files.

Manufacturer	Creality
Model	4008050048
Technology	Structured infrared light
Accuracy	Up to 0.02 mm at 60 mm
3D resolution	0.05-2 mm
Scanning speed	Up to 20 fps
Minimum scan volume	10 mm × 10 mm × 10 mm
Single capture range	Max. 1350 × 840 mm at 1000 mm
Working distance	110 mm - 1000 mm
Color mapping	Yes (24-bit RGB)
Alignment modes	Geometric / Marker / Texture
Output format	OBJ / STL / PLY
Additional lighting	2 white LEDs, 8 infrared LEDs
Supported systems	Windows / macOS
Data interface	Type C / USB 3.0 / USB 2.0
Dimensions	165 mm x 37 mm x 59 mm
Weight	390 g
