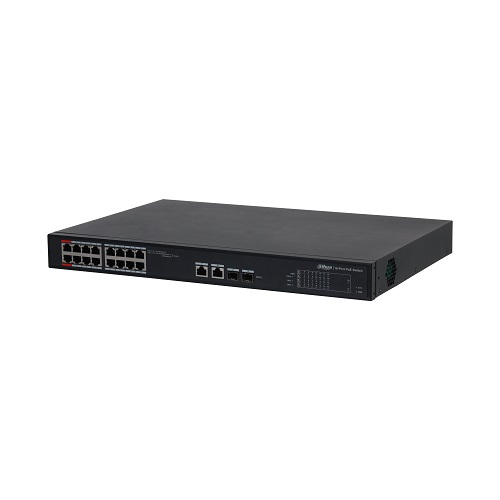

PoE Switch S4101-16ET2GF-240-C 16x 100Mbps + 2x Gigabit Combo Uplink 240W

Price: 246.00 €

Products ID:	170846
Manufactured by:	Dahua Technology Co., Ltd
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6923172544926

Delivery options to:

Choose country

The S4101-16ET2GF-240-C is a smart managed PoE network switch equipped with 16 10/100 Mbps PoE ports and 2 Gigabit combo uplink ports, delivering reliable network transmission and power delivery for connected devices.

Key Features

16 × RJ-45 10/100 Mbps PoE ports
2 × Combo Gigabit uplink ports (10/100/1000M Base-T / 1000M SFP)
Total PoE budget up to 240 W with IEEE802.3bt support up to 90 W on ports 1–2
7.2 Gbps switching capacity and 5.36 Mpps packet forwarding rate
Built-in 100–240 VAC power supply with integrated surge protection

Model	S4101-16ET2GF-240-C
Ethernet Ports	16 × RJ-45 (10/100 Mbps)
Uplink Ports	2 × Combo (10/100/1000 Mbps Base-T / 1000 Mbps SFP)
Total PoE Power	240 W
PoE Protocols	IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt
Port PoE Power Output	Ports 1–2 ≤90 W, Ports 3–16 ≤30 W
Switching Capacity	7.2 Gbps
Packet Forwarding Rate	5.36 Mpps
Packet Buffer Size	4 Mbit
MAC Table Size	16K
Power Supply	100–240 VAC, 50/60 Hz, 2 A
Power Consumption	Idling: ≤5 W; Full load: 240 W
Operating Temperature	–10 °C to +55 °C
Dimensions	440 mm × 300 mm × 44 mm
Net Weight	3.20 kg
Certifications	CE, FCC

What is the total PoE power budget of this switch?

The switch has a total PoE budget of 240 W. Ports 1 and 2 deliver up to 90 W (IEEE802.3bt / Hi-PoE), while ports 3 to 16 support up to 30 W (IEEE802.3at/af).

What uplink interfaces are provided?

It provides 2 combo uplink ports that can operate as either 10/100/1000 Mbps RJ-45 Ethernet ports or 1000 Mbps SFP optical slots.
