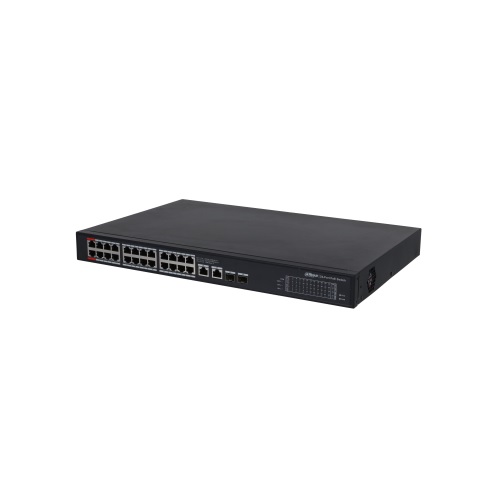

PoE Switch PFS3228-24GT-360 24-Port 360W
Price: 405.10 €
| Products ID: | 171237 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6923172541208 |
Delivery options to:
Choose countryDH-PFS3228-24GT-360 is an unmanaged two-layer Gigabit PoE switch designed for small to medium IP monitoring networks and office environments.
Key Features
- 24 Gigabit PoE ports, 2 Gigabit RJ45 uplinks, and 2 Gigabit SFP fiber uplinks
- Total 360W PoE budget with Ports 1-2 supporting IEEE802.3bt up to 90W
- 52Gbps switching capacity and 38.688Mpps packet forwarding rate
- Plug and Play deployment with 8K MAC address table capacity
- Industrial wide temperature operation from -10°C to 55°C
| Model | PFS3228-24GT-360 |
|---|---|
| PoE Ports | 24*10/100/1000Mbps RJ45 |
| Uplink Ports | 2*10/100/1000Mbps RJ45 + 2*1000Mbps SFP |
| PoE Power Budget | Port 1-2: 90W, Port 3-24: 30W, Total: 360W |
| PoE Standards | IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt |
| Switching Capacity | 52Gbps |
| Packet Forwarding Rate | 38.688Mpps |
| Packet Buffer Memory | 4Mbit |
| MAC Table Size | 8K |
| Power Supply | AC 100-240V |
| Operating Temperature | -10°C~55°C |
| Dimensions (W×D×H) | 440mm×300mm×44mm |
What is the maximum PoE output per port?
Ports 1 and 2 support IEEE802.3bt up to 90W, while ports 3 to 24 support up to 30W, within a total switch budget of 360W.
What uplink interfaces does this switch have?
It provides 2 Gigabit RJ45 ports and 2 Gigabit SFP optical fiber ports for uplink connections.
