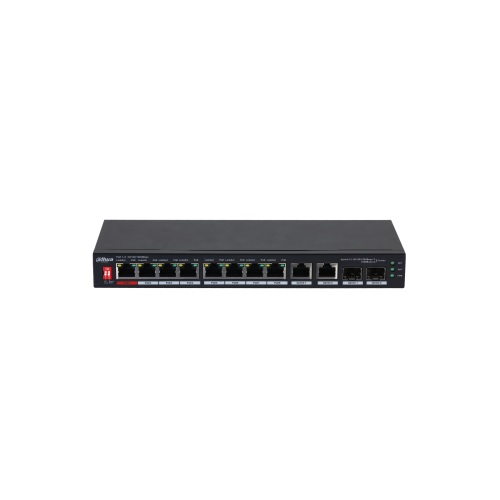

PFS3210-8GT2GF-96 10-Port Desktop Gigabit Switch with 8 PoE Ports

Price: 151.40 €

Products ID:	171213
Manufactured by:	Dahua Technology Co., Ltd
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6923172540850

Delivery options to:

Choose country

The PFS3210-8GT2GF-96 is an unmanaged desktop Gigabit PoE switch equipped with 8 PoE Ethernet ports and 2 Gigabit combo SFP uplink ports, suitable for offices, schools, hotels, and IP surveillance networks.

Key Features

8 Gigabit PoE ports and 2 Gigabit combo SFP uplink ports
Total PoE budget up to 96W, with port 1 supporting IEEE 802.3bt / Hi-PoE up to 90W
PoE watchdog function for automatic device status monitoring and fault recovery
Long-distance PoE transmission up to 250 m in Extend Mode (bandwidth reduced to 10Mbps)
Durable full-metal housing with efficient passive heat dissipation

Model	PFS3210-8GT2GF-96
Total Ports	10
PoE Ports	8 × 10/100/1000Mbps Base-T
Uplink Ports	2 × 10/100/1000Mbps Base-T / 2 × 1000Mbps Base-X (combo)
Total PoE Budget	96W
PoE Standards	IEEE 802.3af, IEEE 802.3at, Hi-PoE, IEEE 802.3bt
Switching Capacity	20Gbps
Packet Forwarding Rate	14.88 Mpps
Packet Buffer Memory	1.5Mbit
MAC Table Size	4K
Power Supply	DC 53V / 1.81A
Operating Temperature	-10°C ~ 55°C
Dimensions	240mm × 105mm × 28mm
Weight	650 g

What is the maximum PoE output for a single port?

Port 1 (red port) supports up to 90W under IEEE 802.3bt and Hi-PoE standards. Ports 2 through 8 support up to 30W each, within the total 96W power budget.

What is the maximum transmission distance supported in Extend Mode?

In Extend Mode, transmission distance reaches up to 250 meters with port bandwidth reduced to 10Mbps.
