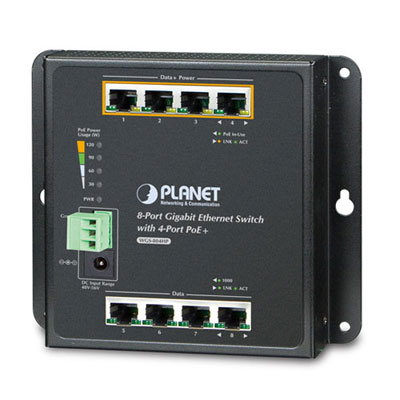

Industrial PoE Switch 4x Gigabit PoE+ 4x Gigabit Uplink, 120W
Price: 147.60 €
| Products ID: | 169696 |
|---|---|
| Manufactured by: | Planet Technology Corporation |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 4711605280563 |
Delivery options to:
Choose countryIndustrial 8-port Gigabit network switch featuring 4 PoE+ ports and 4 Gigabit Uplink ports, engineered for dependable data transmission and power delivery in demanding operating environments.
Key Features
- 4 Gigabit PoE+ ports (IEEE 802.3af/at) delivering up to 30.8W per port
- 4 Gigabit RJ45 Uplink ports
- 16 Gbps switch fabric and 11.9 Mpps throughput
- IP30-rated metal chassis with an operating temperature range of -10 to +60 °C
- EFT 6000VDC and ESD 6000VDC surge and electrostatic protection
- Flexible mounting options: DIN-rail, wall-mount, and magnetic wall mount
| Network Ports | 8-Port RJ45 10/100/1000BASE-T |
|---|---|
| PoE Ports | 4-Port 802.3af / 802.3at PoE+ |
| Max. PoE Power per Port | 30.8W |
| Switch Fabric | 16 Gbps non-blocking |
| Throughput | 11.9 Mpps @ 64 Bytes |
| MAC Address Table | 8K |
| Data Buffer | 1 Mbit |
| Jumbo Frame | 9 Kbytes |
| Power Input | 48~56V DC, 3A (max.) |
| Enclosure | IP30 metal |
| Operating Temperature | -10 °C to +60 °C |
| Surge Protection | ESD 6KV DC, EFT 6KV DC |
| Dimensions (W x D x H) | 148 x 134 x 25 mm |
| Weight | 510 g |
| Installation | Wall mount, magnetic wall mount, DIN-rail |
How many ports support Power over Ethernet (PoE)?
The switch features 4 PoE+ ports complying with IEEE 802.3af/at standards, supplying up to 30.8 watts per port.
What mounting methods are available?
The device supports DIN-rail installation, traditional wall mounting, and magnetic wall mounting.
What is the operating temperature range for this switch?
The switch is designed to operate reliably within a temperature range of -10 to +60 degrees Celsius.
