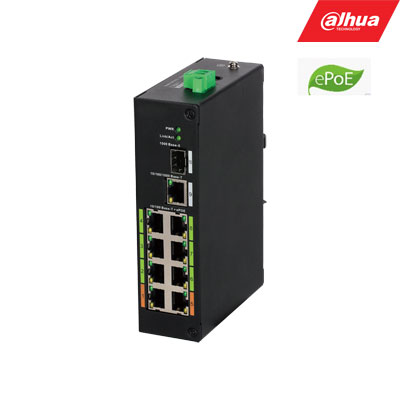

Dahua DH-LR2110-8ET-120 8-Port ePoE Switch with 1G Uplink
Price: 246.00 €
| Products ID: | 170366 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6923172594099 |
Delivery options to:
Choose countryThe Dahua DH-LR2110-8ET-120 is a layer-two 8-port ePoE switch designed to deliver long-distance PoE power and data transmission for surveillance networks.
Key Features
- 8 PoE ports (10/100 Base-T) with a total power budget of 120W
- Uplink options including 1 Gigabit RJ45 port and 1 Gigabit SFP optical port
- ePoE transmission up to 800 meters at 10Mbps or 300 meters at 100Mbps
- Compliant with IEEE802.3af, IEEE802.3at, and Hi-PoE standards
- Switching capacity of 8.8Gbps with an 8K MAC address table
| Model | DH-LR2110-8ET-120 |
|---|---|
| Ethernet Ports | 8 * 10/100 Base-T (PoE), 1 * 10/100/1000 Base-T, 1 * 1000 Base-X |
| PoE Power Consumption | Port 1, 5 = 60W, Port 2, 3, 4, 6, 7, 8 = 30W, Total = 120W |
| PoE Protocol | IEEE802.3af, IEEE802.3at, Hi-PoE |
| Switching Capacity | 8.8Gbps |
| Packet Forwarding Rate | 4.17Mpps |
| Packet Buffer Memory | 2.75Mb |
| MAC Table Size | 8K |
| Power Supply | DC 48~57V power adapter |
| Lightning Protection | Common Mode 4KV, Differential Mode 2KV |
| Working Temperature | -30°C~65°C |
| Application Humidity | 10%~90% |
| Dimensions (W×D×H) | 150mm×100mm×42mm |
| Weight | 0.59kg |
What is the maximum transmission distance using ePoE?
The switch supports ePoE transmission up to 800 meters at 10Mbps or up to 300 meters at 100Mbps over Ethernet cable.
What is the total PoE power budget of this switch?
The total PoE power consumption is 120W, with up to 60W on ports 1 and 5 (Hi-PoE) and up to 30W on ports 2, 3, 4, 6, 7, and 8.
