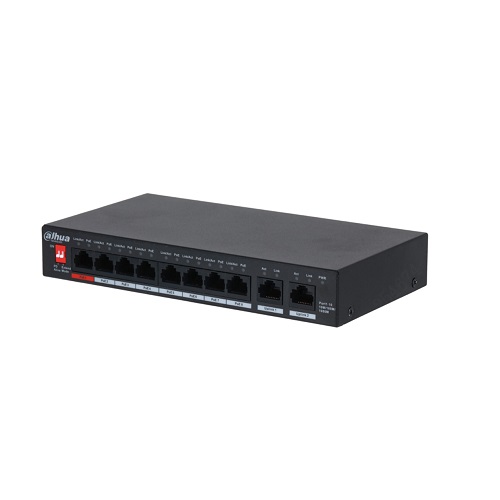

8-Port Gigabit PoE Switch PFS3010-8GT-96 (96W)
Price: 116.10 €
| Products ID: | 171203 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6923172523259 |
Delivery options to:
Choose countryThe PFS3010-8GT-96 is a 10-port unmanaged gigabit switch equipped with 8 PoE ports and 2 Uplink ports, providing power and data transmission for connected network devices.
Key Features
- 8 gigabit PoE ports and 2 gigabit Uplink ports
- 96W total PoE power budget (red port supports up to 90W)
- Up to 250 m long-distance PoE transmission in extend mode
- 20 Gbps switching capacity and 14.88 Mpps packet forwarding rate
- Intelligent PoE power consumption management and PoE Watchdog support
- Designed for desktop mounting
| Model | PFS3010-8GT-96 |
|---|---|
| Ethernet Ports | 8x 10/100/1000 Mbps PoE, 2x 10/100/1000 Mbps Uplink |
| PoE Power Budget | Full load = 96W, Idling: 3W |
| PoE Protocols | IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| Packet Buffer Memory | 1.5 Mbit |
| MAC Table Size | 4K |
| Long Distance PoE | Up to 250 m |
| Power Supply | 48V - 57V DC |
| Operating Temperature | -10°C ~ 55°C |
| Dimensions (W × D × H) | 190 mm × 100 mm × 30 mm |
| Weight | 0.5 kg |
What is the total PoE power budget?
The full load PoE power budget is 96W, with the red port delivering up to 90W via IEEE802.3bt / Hi-PoE standards.
How many ports does this switch have?
The switch features 10 gigabit ports in total: 8 PoE ports (10/100/1000 Mbps) and 2 Uplink ports (10/100/1000 Mbps).
What is the maximum PoE transmission distance?
In long-distance transmission mode, PoE delivery reaches up to 250 meters.
