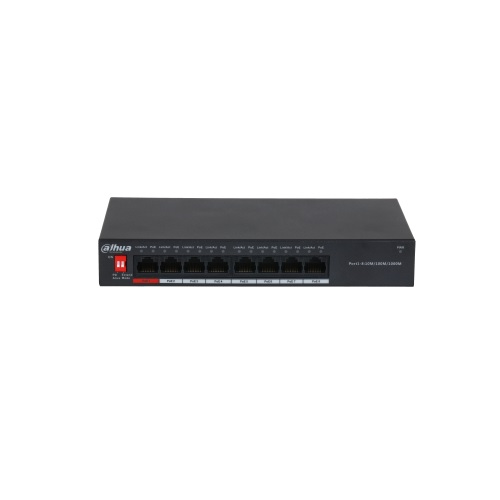

8-Port Gigabit PoE Switch PFS3008-8GT-96 (96W)
102.70 €
Dahua Technology Co., Ltd
Products ID: 171215
In supplier warehouse
Available to order: 10+ pcs.
Delivery Time 5–10 business days
Delivery options to:
Choose countryThe PFS3008-8GT-96 is an 8-port unmanaged Gigabit PoE switch featuring a 96W total PoE power budget and up to 90W per-port output via IEEE802.3bt.
Key Features
- 8 Gigabit 10/100/1000 Mbps PoE ports for high-definition data transmission
- Supports IEEE802.3af, IEEE802.3at, IEEE802.3bt, and Hi-PoE standards
- Long-distance PoE transmission up to 250 m with bandwidth adjusted to 10 Mbps
- Intelligent PoE power management and PoE Watchdog functionality
- 20 Gbps switching capacity with 1.5 Mbit packet buffer memory
- Desktop-mount installation design
| Model | PFS3008-8GT-96 |
|---|---|
| PoE Ports | 8x 10/100/1000 Mbps |
| Total PoE Power Consumption | 96 W (Full load) |
| Max Power per Port | 90 W (IEEE802.3bt) |
| PoE Protocols | IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| Packet Buffer Memory | 1.5 Mbit |
| MAC Table Size | 8K |
| Long Distance PoE | Up to 250 m |
| Power Supply | 48V - 57V DC |
| Working Temperature | -10°C~55°C |
| Dimensions (W×D×H) | 190 mm × 100 mm × 30 mm |
| Weight | 490 g |
| EAN | 6923172524928 |
|---|
What is the maximum PoE transmission distance?
When long-distance mode is enabled, the transmission distance can reach up to 250 m with the bandwidth reduced to 10 Mbps.
What is the maximum power delivered by the PoE ports?
The switch has a total PoE budget of 96W, with the red ports supporting IEEE802.3bt and Hi-PoE up to a maximum of 90W per port.
