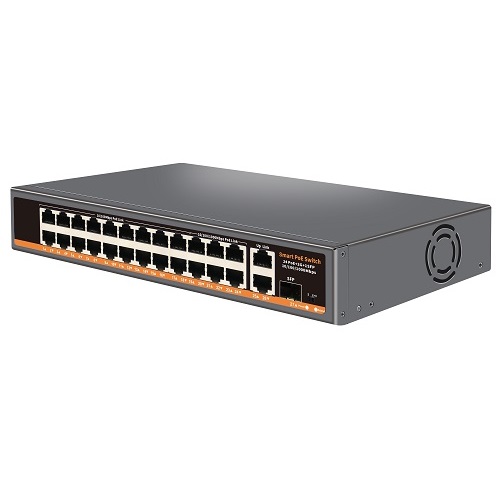

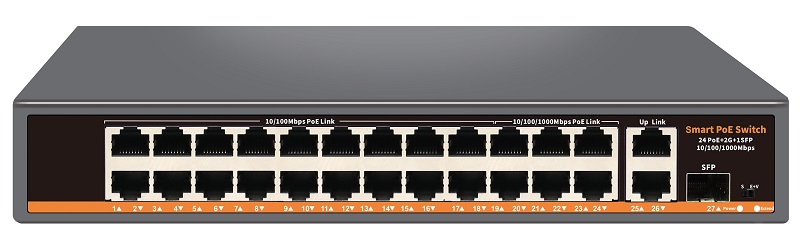

24-Port PoE Switch 18x100M PoE + 6x Gigabit PoE + 2x Gigabit Uplink + 1x SFP 400W
Price: 109.50 €
| Products ID: | 177577 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000993727 |
Delivery options to:
Choose countryThis 24-port PoE network switch provides data transmission and power supply with a 400W total power budget. It features 18x 100Mbps PoE ports, 6x Gigabit PoE ports, 2x Gigabit RJ45 uplink ports, and 1x Gigabit SFP port for fiber connectivity.
Key Features
- 400W total PoE power budget with up to 30W per port
- Compliant with IEEE 802.3af/at PoE standards
- DIP switch supporting Extend mode and VLAN port isolation
- AI Watchdog self-recovery feature for connected devices
- Integrated 6kV surge protection on network ports
- Designed for rack mounting
| Ports | 18x 10/100Mbps PoE; 6x 10/100/1000Mbps PoE; 2x 10/100/1000Mbps RJ45 uplink; 1x 100/1000Mbps SFP |
|---|---|
| Network protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at |
| Input voltage | 110-240V AC |
| PoE standards | IEEE802.3af/at |
| MAC address table | 2K |
| Forwarding rate | 10Mbps: 14880pps; 100Mbps: 148800pps; 1000Mbps: 1488000pps |
| Supported cable type | UTP Cat5e or newer |
| Maximum power | 30W per port; IEEE802.3af/at |
| Standard power | 15.4W per port |
| Switching capacity | 21.6Gbps |
| PoE power transmission distance | 250m |
| Total power budget | 400W (52V, 7.7A) |
| LED indicators | Power, network, Extend mode |
| Built-in power supply | AC110-240V, 400W |
| Operating temperature | -10°C ~ +55°C |
| Operating humidity | 10-90% RH |
| Dimensions | 270 x 181 x 44 mm |
| Weight | 2kg |
| Mounting type | Rack mounting |
What is the total PoE power budget of this switch?
The switch offers a total PoE power budget of 400W, delivering up to 30W per port under IEEE 802.3af/at standards.
What is the maximum PoE transmission distance?
The PoE power and data transmission distance reaches up to 250 meters.
Is the power cable included in the package?
Yes, a power cable is included with the integrated power supply.
