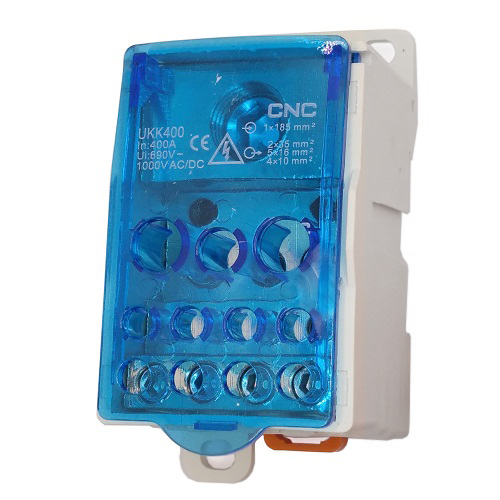

Unipolar Junction Box 400A for DIN Rail
SOLDOUT!
The unipolar electrical cable junction box 400A is designed for cable connections and branch wiring in power distribution systems.
Key Features
- Suitable for mounting on a standard DIN rail in electrical panels
- Transparent cover enables quick inspection of cable connections
- Body made of flame-retardant PA nylon with high insulating properties
- Brass-plated terminals provide corrosion resistance and high conductivity
| Nominal current | 400 A |
|---|---|
| Voltage | AC/DC 690-1000 V AIEC |
| Connected cable cross-section | 1x (95-185 mm²) / 2x (6-35 mm²) / 5x (2.5-16 mm²) / 4x (2.5-10 mm²) |
| Mounting | On DIN rail |
| Body material | PA nylon |
| Safety class | V0 UL94 (flame retardant) |
| Terminals | Brass plated |
| Dimensions | 49 x 95 x 49 mm |
| EAN | 6942108747712 |
|---|
What cable cross-sections are supported by this junction box?
It accommodates cable sizes of 1x (95-185 mm²), 2x (6-35 mm²), 5x (2.5-16 mm²), and 4x (2.5-10 mm²).
How is this junction box mounted?
It is designed for mounting directly on a standard DIN rail inside electrical panels.
