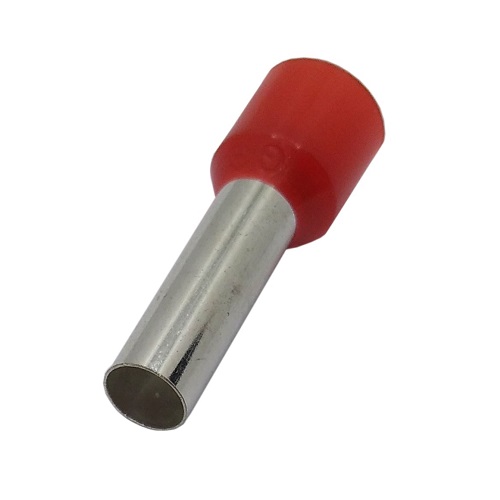

Insulated Cord End Terminals for 16mm² / 5AWG Cable, 100pcs, Red
Price: 15.10 €
| Products ID: | 171052 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000822034 |
Delivery options to:
Choose countryInsulated cord end terminals designed for 16.0 mm² (5 AWG) flexible copper wire, providing secure connections to electrical appliances, other wires, or surfaces.
Key Features
- Pure copper tube with tin-plated finish for enhanced electrical contact
- Red vinyl insulation for flexible conductors
- Designed for 16.0mm² / 5AWG wire cross-section

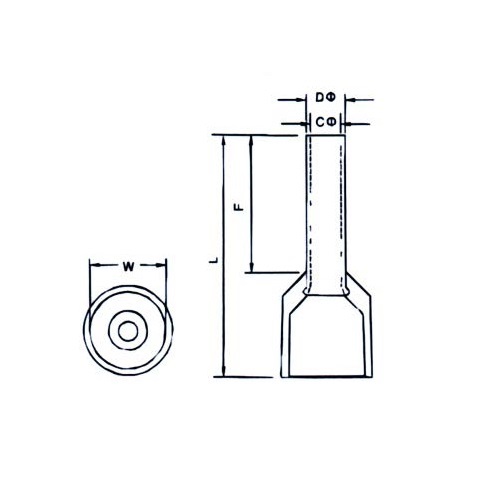

- Total length of 29mm with 5.8mm inner diameter
- Pack includes 100 pieces
| Cable cross-section | 16.0mm² / 5AWG |
|---|---|
| Material | Copper |
| Surface | Tin plated |
| Insulation | Vinyl |
| Insulation color | Red |
| Length | 29mm |
| Depth | 18mm |
| Inner diameter | 5.8mm |
| Outer diameter | 6.2mm |
| Insulation diameter | 9.0mm |
| Quantity | 100 pcs |
What cable size are these cord end terminals compatible with?
They are designed for flexible wires with a cross-section of 16.0mm² (5 AWG).
How many terminals are included in the package?
The set contains 100 pieces.
