DIN Rail Wire Connector Set Sonoff 211 (20 pcs)
Price: 9.20 €
| Products ID: | 174683 |
|---|---|
| Manufactured by: | Sonoff |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6920075740981 |
Delivery options to:
Choose country

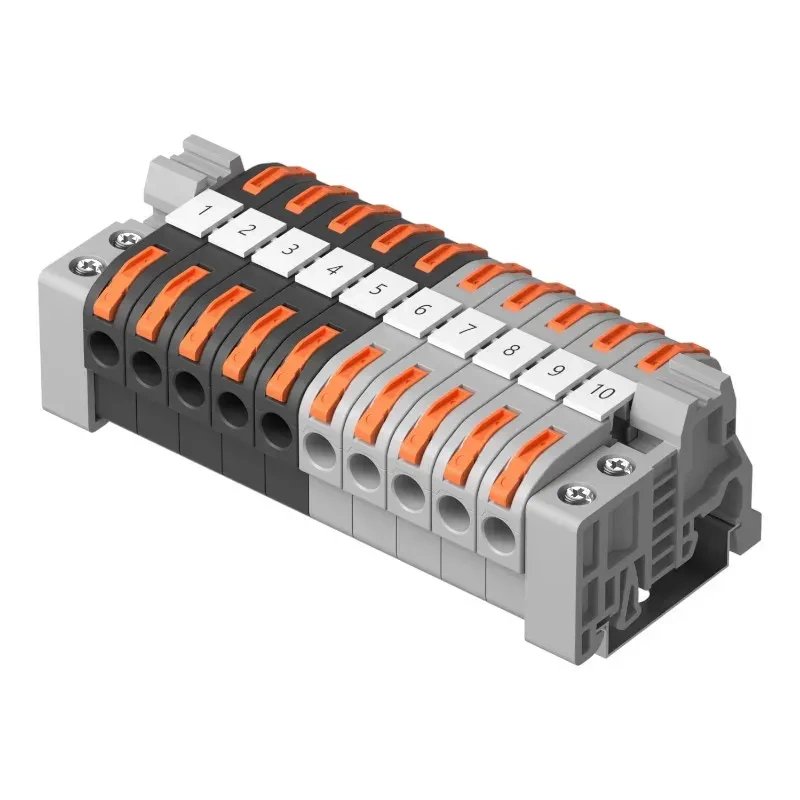

The Sonoff 211 DIN rail wire connector set provides a fast and tool-free solution for joining electrical cables securely without soldering or twisting.
Key Features
- DIN Rail Mounting: Designed for straightforward and stable installation on standard DIN rails.
- Tool-Free Operation: Lever mechanism enables quick wire insertion and secure locking.
- Durable Construction: Red copper contacts for conductivity paired with a PA plastic insulating body.
- Versatile Wire Support: Suitable for solid conductors from 0.2 to 4 mm² and flexible conductors from 0.2 to 2.5 mm².
| Manufacturer | Sonoff |
|---|---|
| Model | 211 |
| Rated voltage | 250 V |
| Rated current | 32 A |
| Contact material | Red copper |
| Insulation material | PA |
| Solid conductor | 0.2-4 mm² (24-12 AWG) |
| Flexible conductor | 0.2-2.5 mm² (24-14 AWG) |
| Dimensions | 8 x 48.2 x 30.8 mm |

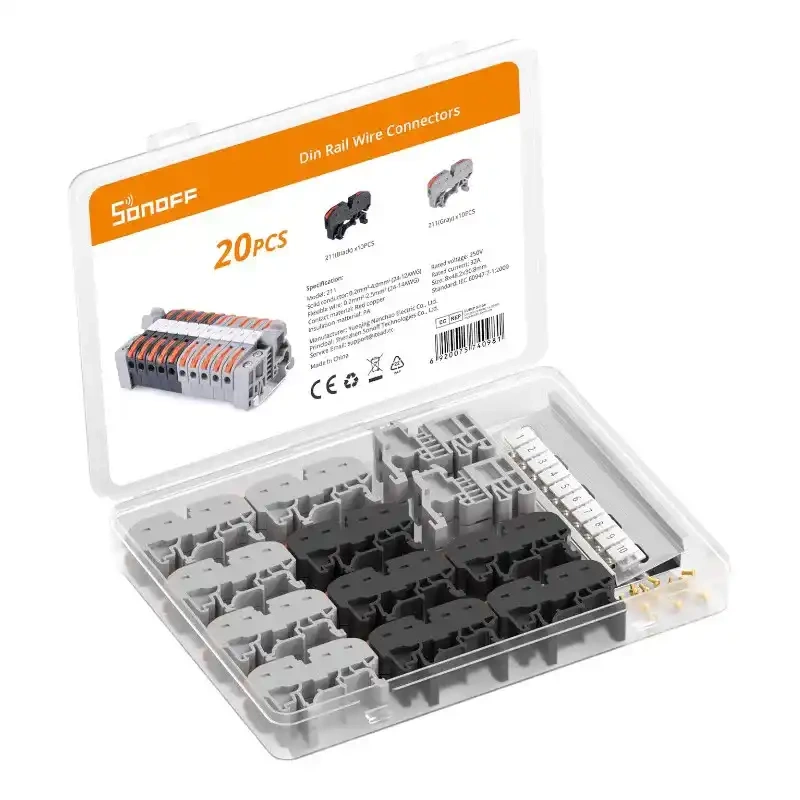

| Quantity per set | 20 pcs |
What wire sizes are supported by Sonoff 211 connectors?
They support solid conductors with cross-sections from 0.2 to 4 mm² (24–12 AWG) and flexible conductors from 0.2 to 2.5 mm² (24–14 AWG).
How many connectors are included in the package?
The set contains 20 pieces of Sonoff 211 rail connectors.
What are the rated electrical specifications?
The connectors are rated for a voltage of 250 V and a current of up to 32 A.
